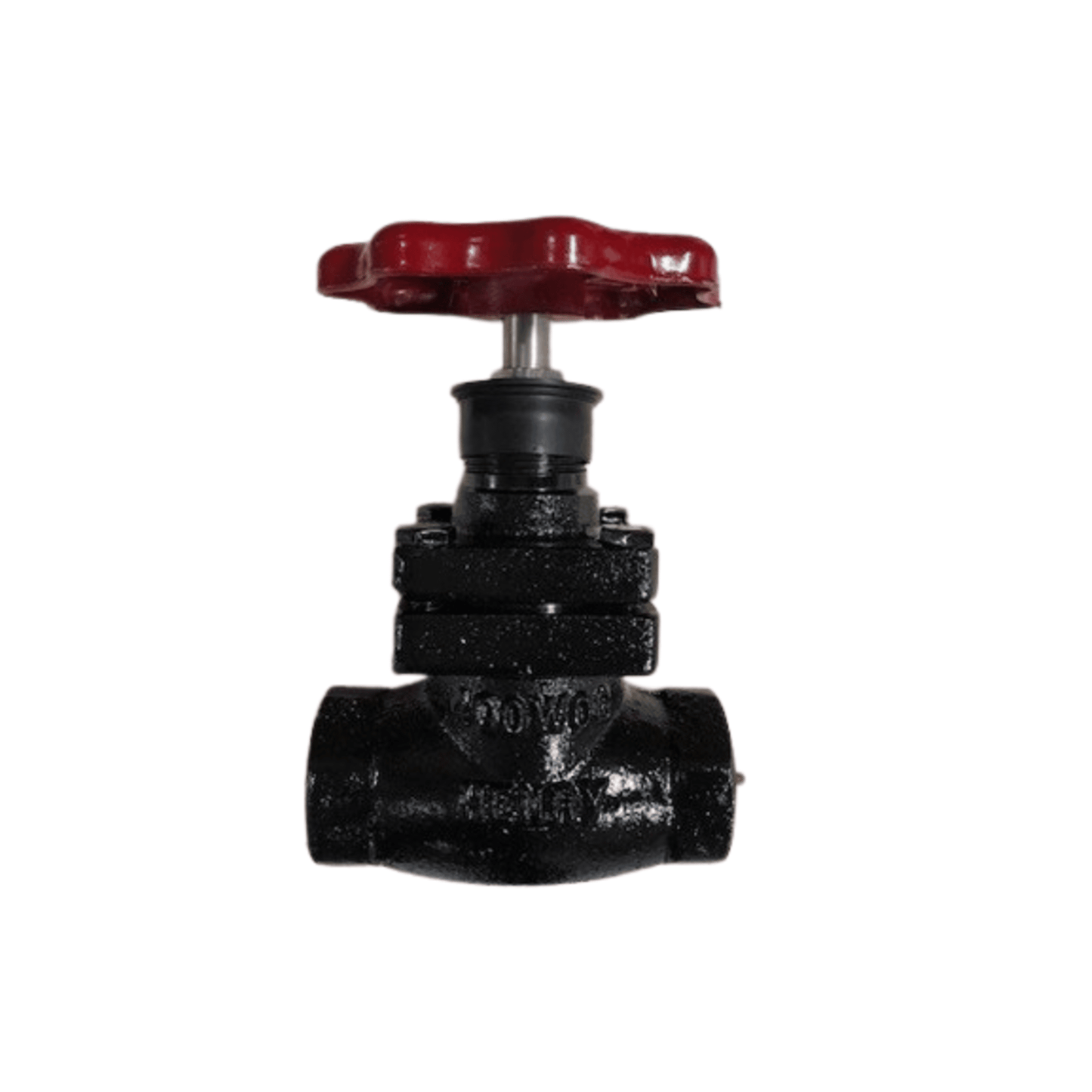

Henry 330F-E Expansion Valve, Steel Screwed End, 3/4

The Henry 330F-E Expansion Valve is a hand-operated valve designed for industrial refrigeration and air conditioning systems. Here are the key technical specifications:

• Body Material: Steel
• Inlet and Outlet Connection: 3/4" Female Pipe Thread (FPT)
• Pressure Rating: Maximum cold operating pressure of 400 psi (27.6 bar)
• Temperature Range: -20°F to +300°F (-29°C to +149°C)
• Stem Material: Stainless Steel
• Seal Material: Metal-to-metal seat seal with a graphite compound for the packing gland
• Cap Material: Molded Plastic
• Design: Handwheel operation for precise control
• Applications: Suitable for use with ammonia, HCFC and HFC refrigerants, associated oils, and other industrial fluids non-corrosive to steel and stainless steel
• Features:
  • Compact and robust design
  • Allows for precise flow control
  • Easy to install and maintain
  • Valve open height: 6.13 inches
  • Width: 3.63 inches
  • Shipping weight: 2.5 lbs

This valve is ideal for providing precise control of refrigerant flow in various industrial applications
