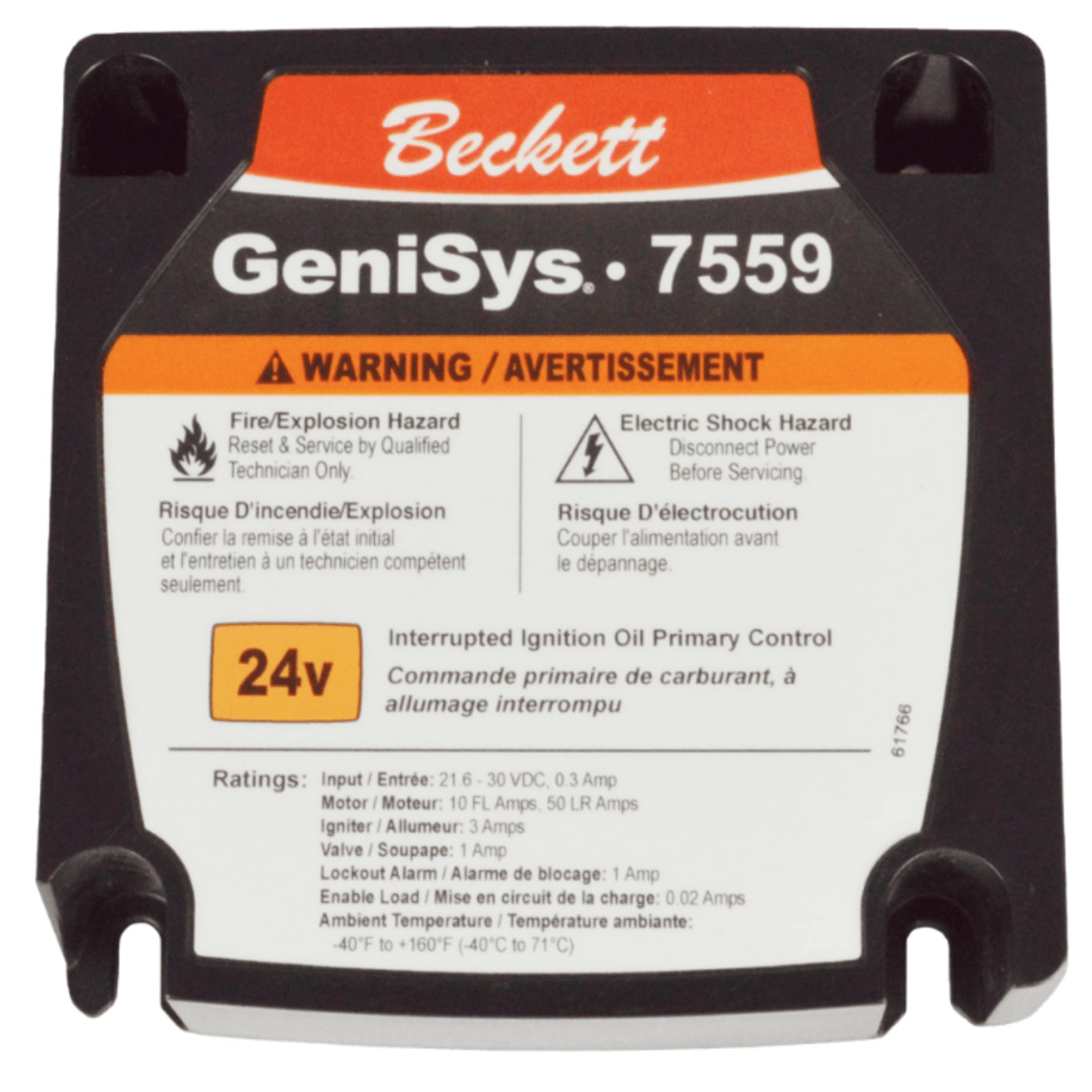

Beckett 7559P1530U, GeniSys® 24V Oil Burner Control

Product Detail

Beckett 7559P1530U, GeniSys® 24V Oil Burner Control

Features & Benefits

• Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
• Epoxy potted for moisture resistance
• Welded relay protection with redundant motor relays
• High ambient temperature rating
• Alarm output enables visual or audio indication of flame failure and lock out condition
• Interrupted ignition
• Relight function
• Fused protection

Electrical Ratings

Inputs

• • Voltage: 24 Vdc nominal (21.6 to 30 Vdc)
  • Current: 220 mA plus burner motor, igniter, and valve loads

Outputs

• • Motor: 24 Vdc, 10 full load amps (FLA), 50 locked rotor amps (LRA)
  • Igniter: 24 Vdc, 3 A
  • Solenoid Valve: 24 Vdc, 1 A
  • Lockout Alarm: 24 Vdc, 1 A

Environmental Ratings

• • Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C)
  • Moisture: 5 to 95% RH, condensing
