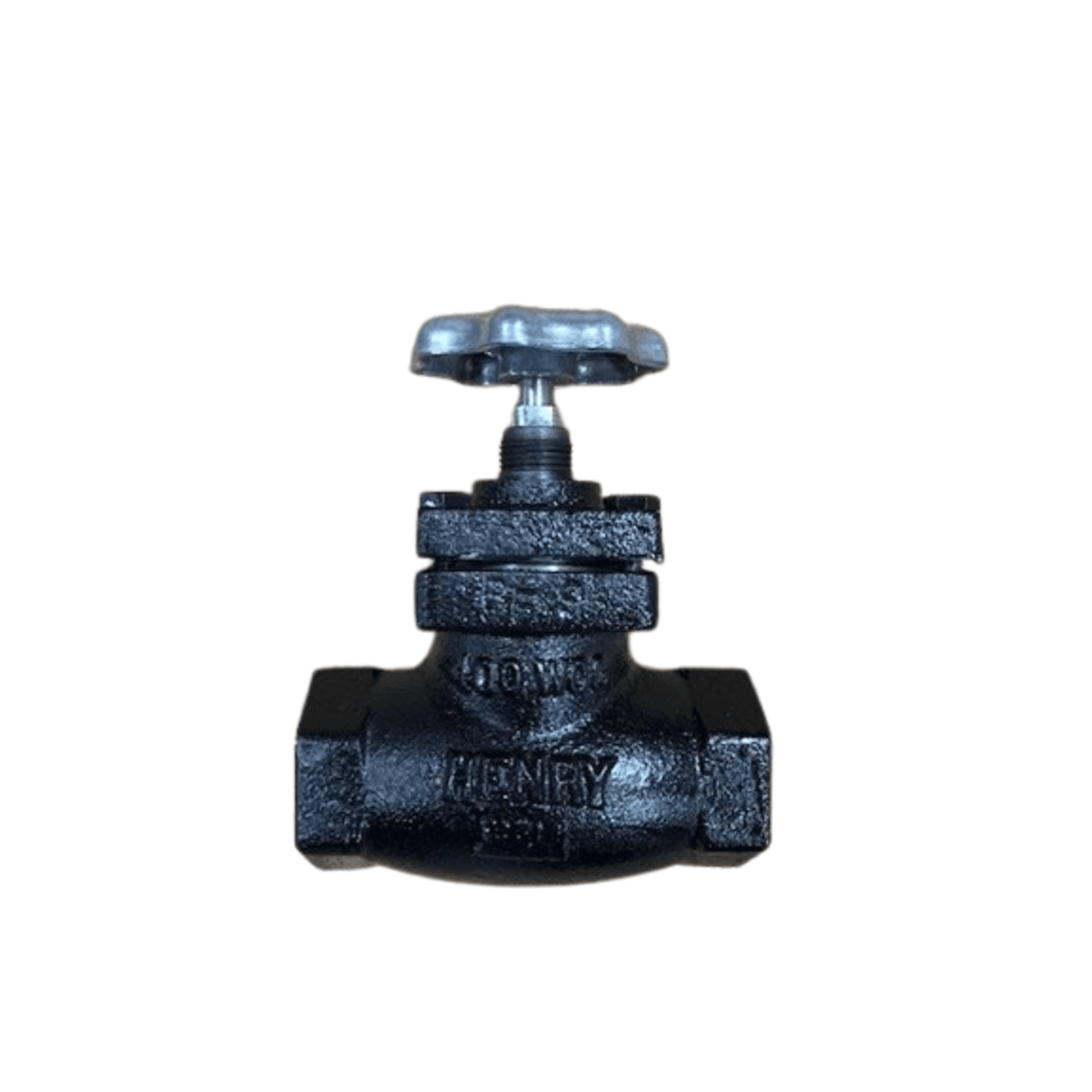

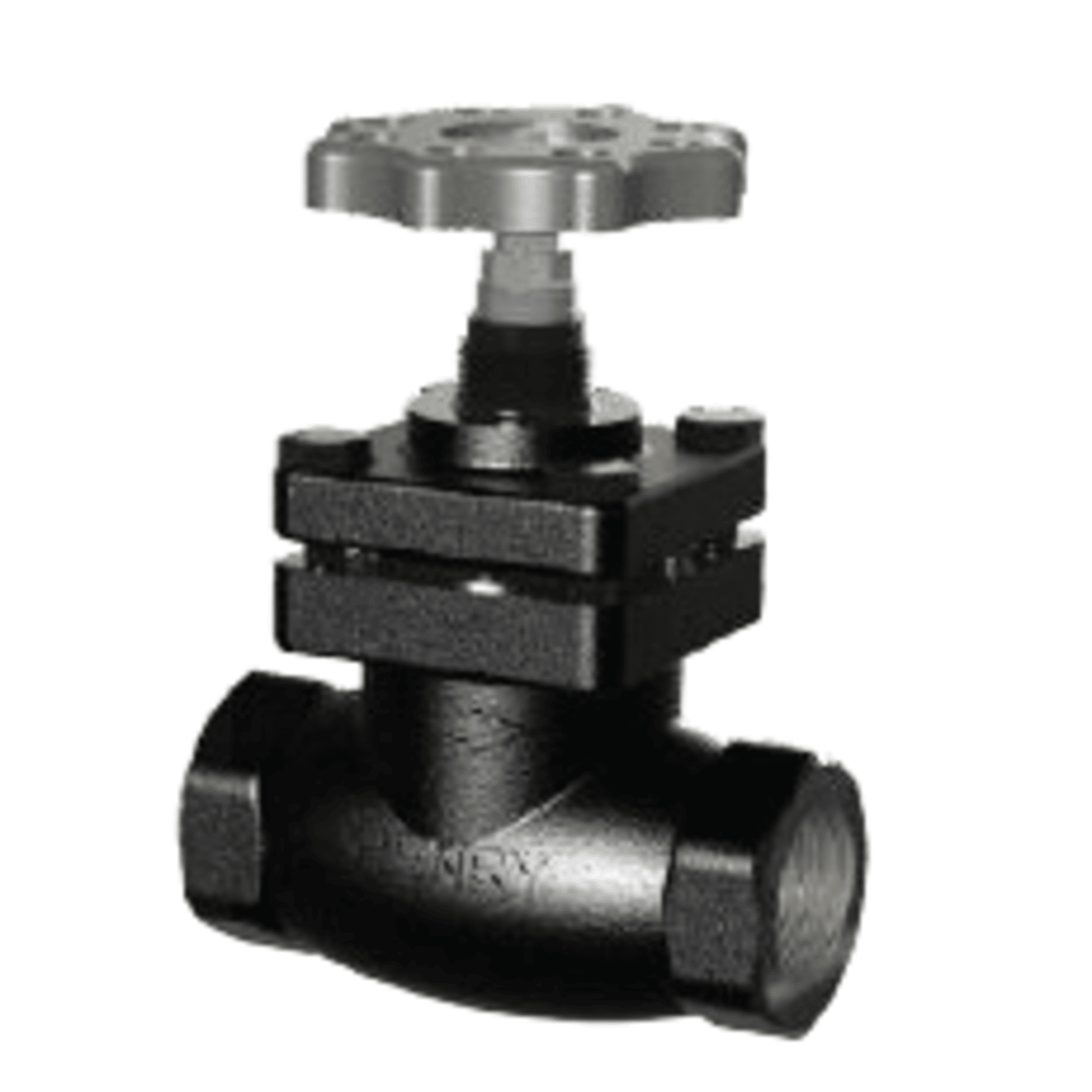

Henry 340G, Shut-Off Valve, 1" FPT Connections

The Henry 340G Shut-Off Valve is a robust, handwheel-operated valve designed for industrial refrigeration and air conditioning systems. Here are the key technical specifications:

• Body Material: Ductile Iron
• Inlet and Outlet Connection: 1" Female Pipe Thread (FPT)
• Pressure Rating: Maximum cold working pressure of 400 psi (27.6 bar)
• Temperature Range: -20°F to +325°F (-29°C to +163°C)
• Stem Material: Stainless Steel
• Seal Material: Metal-to-metal seat seal with a graphite compound for the packing gland
• Cap Material: Molded Plastic
• Design: Non back-seating design, allowing for packing replacement under pressure
• Applications: Suitable for use with ammonia and other industrial fluids non-corrosive to ductile iron and stainless steel
• Features:
  • Handwheel operation for easy control
  • Compact and robust design
  • Allows for isolation, flow control, charging, and purging

This valve is ideal for providing an isolation or connection point in liquid and gas applications where durability and reliability are critical
