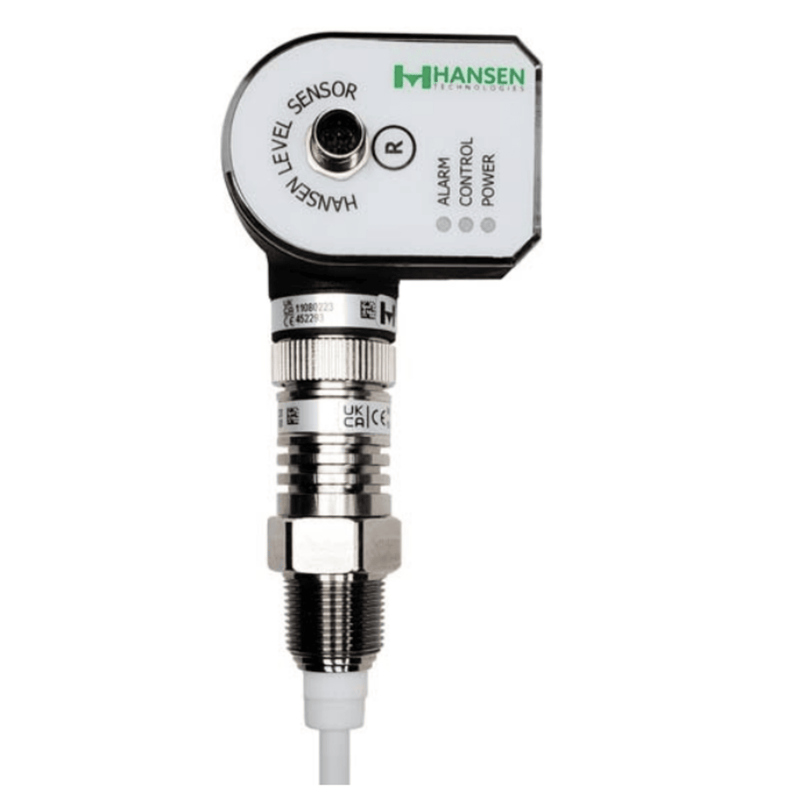

Level Sensor 2 Wire - Hansen

The Hansen WLT is a 2-wire wire level transducer sensor designed for precise liquid level monitoring in industrial refrigeration systems. Here's a detailed overview:

Hansen WLT Key Specifications

• Model: WLT
• Type: 2-wire level transducer
• Signal Output: 4 20 mA analog signal
• Power Supply: 12 36 VDC
• Active Length: Up to 157 inches (4000 mm), field adjustable
• Sensor Element: Insulated stainless-steel wire
• Mounting: Directly in level columns or via inner pipe in vessels
• Enclosure: Watertight, compact design
• Compatibility: Direct replacement for Hansen LP and VLT probes
• Media: Suitable for ammonia and Hansen-approved halocarbons

Features

• Compact and rugged design for harsh environments
• Field programmable using web-based software
• Flexible installation in vertical vessels, pilot receivers, and pump accumulators
• Minimal shipping cost due to compact form factor
• Computer/PLC compatible via standard 4 20 mA loop

Applications

• Industrial refrigeration systems
• Ammonia and halocarbon-based systems
• Level control and monitoring in high-pressure environments
