Williams JHW6CP10T06, 10 Ton Pull Cylinder

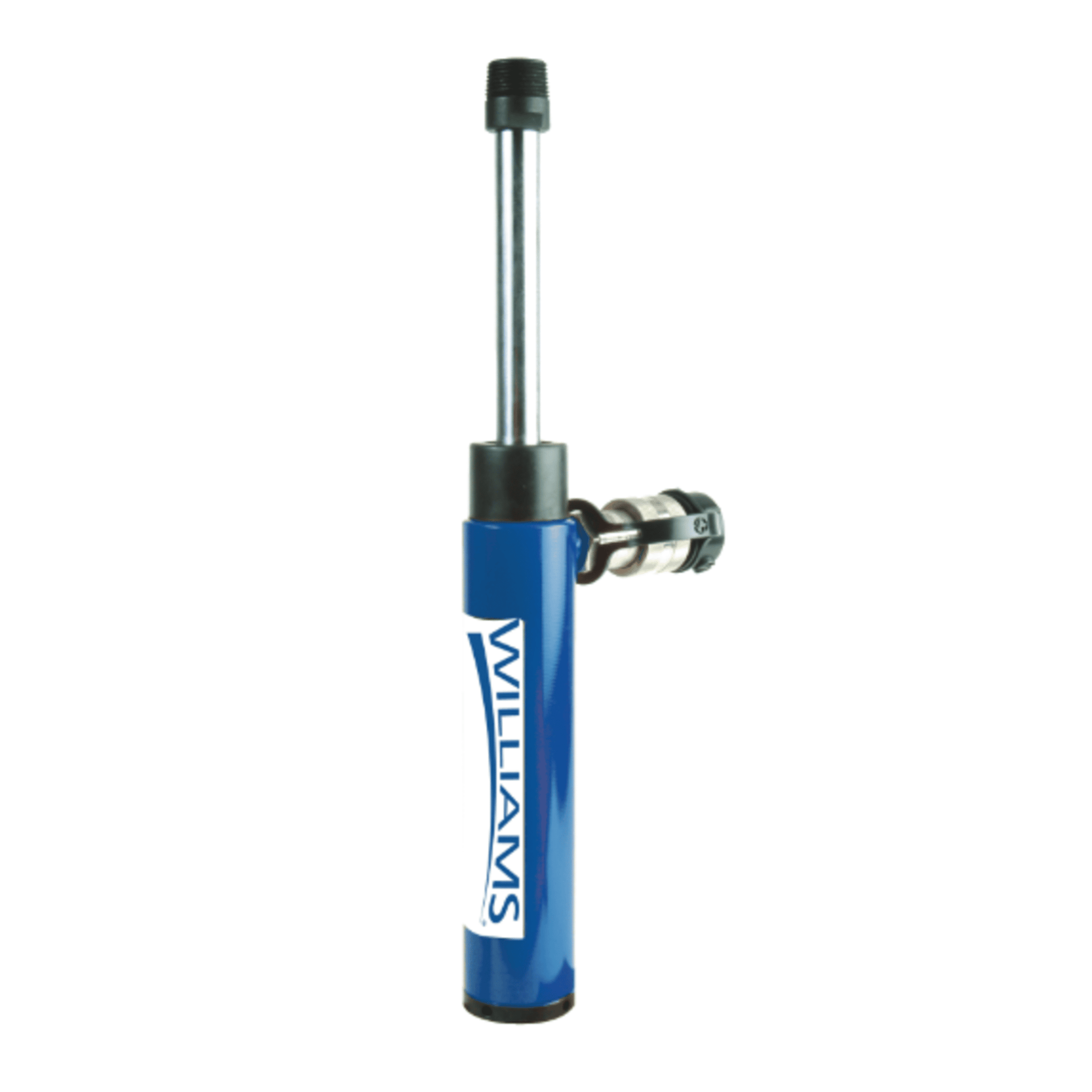

Williams 10 Ton Pull Cylinder (Part Number: JHW6CP10T06)

General Description: The Williams 10 Ton Pull Cylinder (part number JHW6CP10T06) is a robust hydraulic tool designed for heavy-duty pulling and tensioning applications. This cylinder is built to deliver high performance and durability in demanding industrial environments.

Key Features:

• Capacity: 10 tons, suitable for extremely heavy-duty applications.
• Stroke Length: 5.95 inches, providing a substantial range of motion.
• Maximum Working Pressure: 10,000 psi (700 bar), ensuring high performance.
• Oil Capacity: 14.48 cubic inches, supporting efficient operation.
• Cylinder Bore Diameter: 2.17 inches.
• Outside Diameter: 3.35 inches.
• Plunger Diameter: 1.26 inches.
• Collapsed Height: 11.75 inches.
• Extended Height: 17.7 inches.
• Base to Inlet Port: 1.50 inches.
• Collar Thread: M85 x 2.
• Collar Thread Length: 1 inch.
• Plunger Internal Thread: M30 x 2.
• Plunger Thread Length: 1.02 inches.
• Base Mounting Hole Thread: M30 x 2.
• Base Mounting Hole Thread Depth: 0.98 inches.

Construction and Design:

• Material: High-strength steel construction ensures durability and longevity.
• Plunger: Industrial hard chrome-plated ram helps prevent rust and corrosion.
• Seals: Polyurethane cup seal provides optimum performance.
• Bearings: One-piece high-grade alloy bearing for side load protection and extended life.
• Threads: External plunger threads and internal base threads for secure load handling.
• Couplers: High-flow 3/8" NPTF couplers for efficient hydraulic fluid transfer.
• Protection: Features to protect against dirt and contamination, ensuring long-term reliability.

Applications:

This cylinder is ideal for pulling, tensioning, and other applications requiring high force in a compact form factor. Its robust design and high-pressure capacity make it suitable for use in various industrial settings, including manufacturing, construction, and maintenance.

Additional Information:

• Weight: Approximately 12.77 pounds.
• Dimensions: 15 x 12 x 10 inches (packaged).

The Williams 10 Ton Pull Cylinder (JHW6CP10T06) combines strength, precision, and reliability, making it a valuable tool for demanding hydraulic applications
