Williams JHW6CP05T05, 5 Ton Pull Cylinder

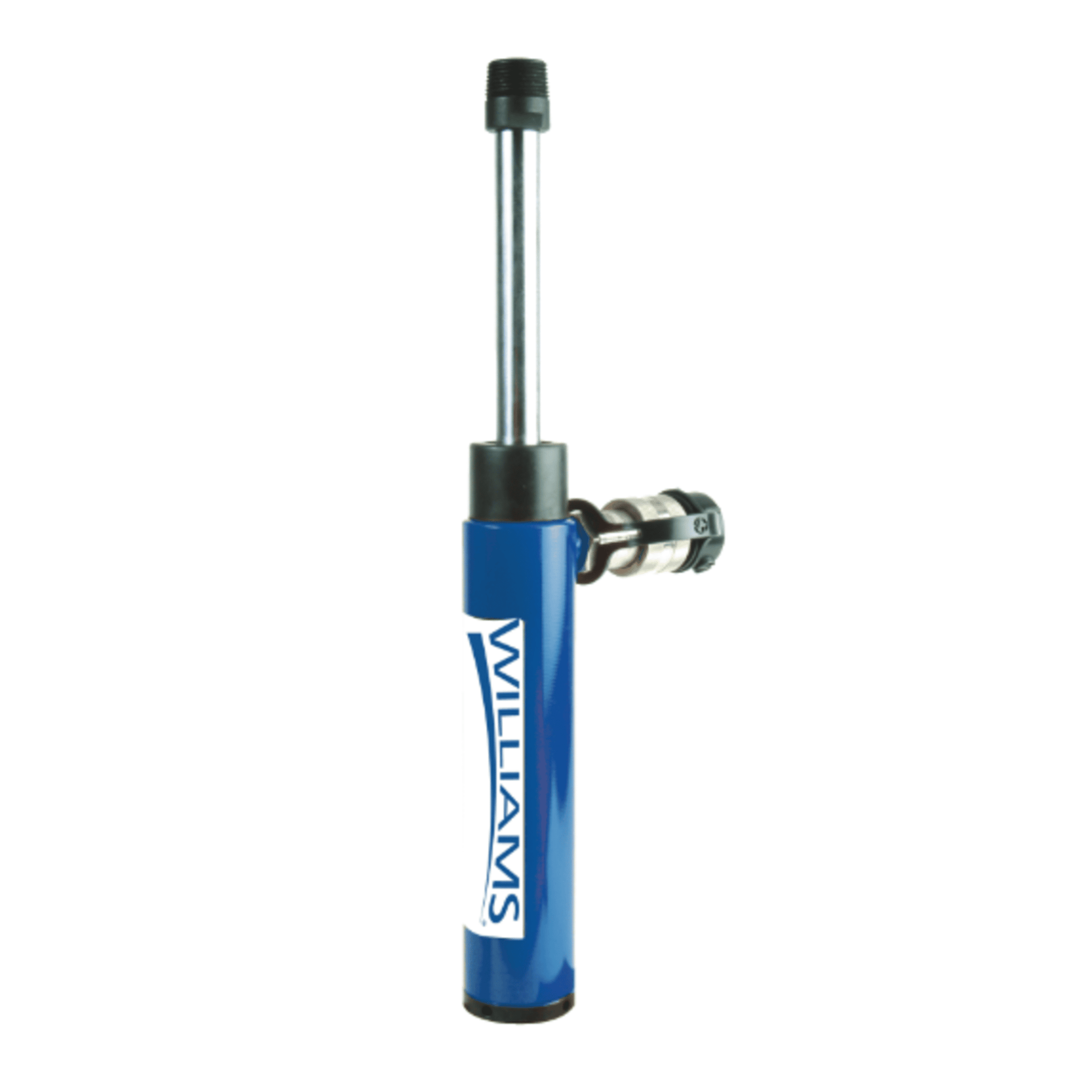

Williams 5 Ton Pull Cylinder (Part Number: JHW6CP05T05)

General Description: The Williams 5 Ton Pull Cylinder (part number JHW6CP05T05) is a robust hydraulic tool designed for heavy-duty pulling and tensioning applications. This cylinder is built to deliver high performance and durability in demanding industrial environments.

Key Features:

• Capacity: 5 tons, suitable for heavy-duty applications.
• Stroke Length: 5.55 inches, providing a substantial range of motion.
• Maximum Working Pressure: 8,770 psi (605 bar), ensuring high performance.
• Oil Capacity: 6.34 cubic inches, supporting efficient operation.
• Cylinder Bore Diameter: 1.69 inches.
• Outside Diameter: 2.25 inches.
• Plunger Diameter: 1.14 inches.
• Collapsed Height: 11.85 inches.
• Extended Height: 17.35 inches.
• Base to Inlet Port: 1.69 inches.
• Collar Thread: 2 1/4 - 14 inches.
• Collar Thread Length: 1 inch.
• Plunger Internal Thread: M28 x 1.5 mm.
• Plunger Thread Length: 0.93 inch.
• Base Mounting Hole Thread: 1 1/4 - 11.5 NPTF.
• Base Mounting Hole Thread Depth: 0.95 inch.

Construction and Design:

• Material: High-strength steel construction ensures durability and longevity.
• Plunger: Industrial hard chrome-plated ram helps prevent rust and corrosion.
• Seals: Polyurethane cup seal provides optimum performance.
• Bearings: One-piece high-grade alloy bearing for side load protection and extended life.
• Threads: External plunger threads and internal base threads for secure load handling.
• Couplers: High-flow 3/8" NPTF couplers for efficient hydraulic fluid transfer.
• Protection: Features to protect against dirt and contamination, ensuring long-term reliability.

Applications:

This cylinder is ideal for pulling, tensioning, and other applications requiring high force in a compact form factor. Its robust design and high-pressure capacity make it suitable for use in various industrial settings, including manufacturing, construction, and maintenance.

Additional Information:

• Weight: Approximately 9.73 pounds.
• Dimensions: 11.85 inches (collapsed height) to 17.35 inches (extended height).

The Williams 5 Ton Pull Cylinder (JHW6CP05T05) combines strength, precision, and reliability, making it a valuable tool for demanding hydraulic applications
