Williams JHW6CF50T05, 50 Ton Flat Body Cylinder

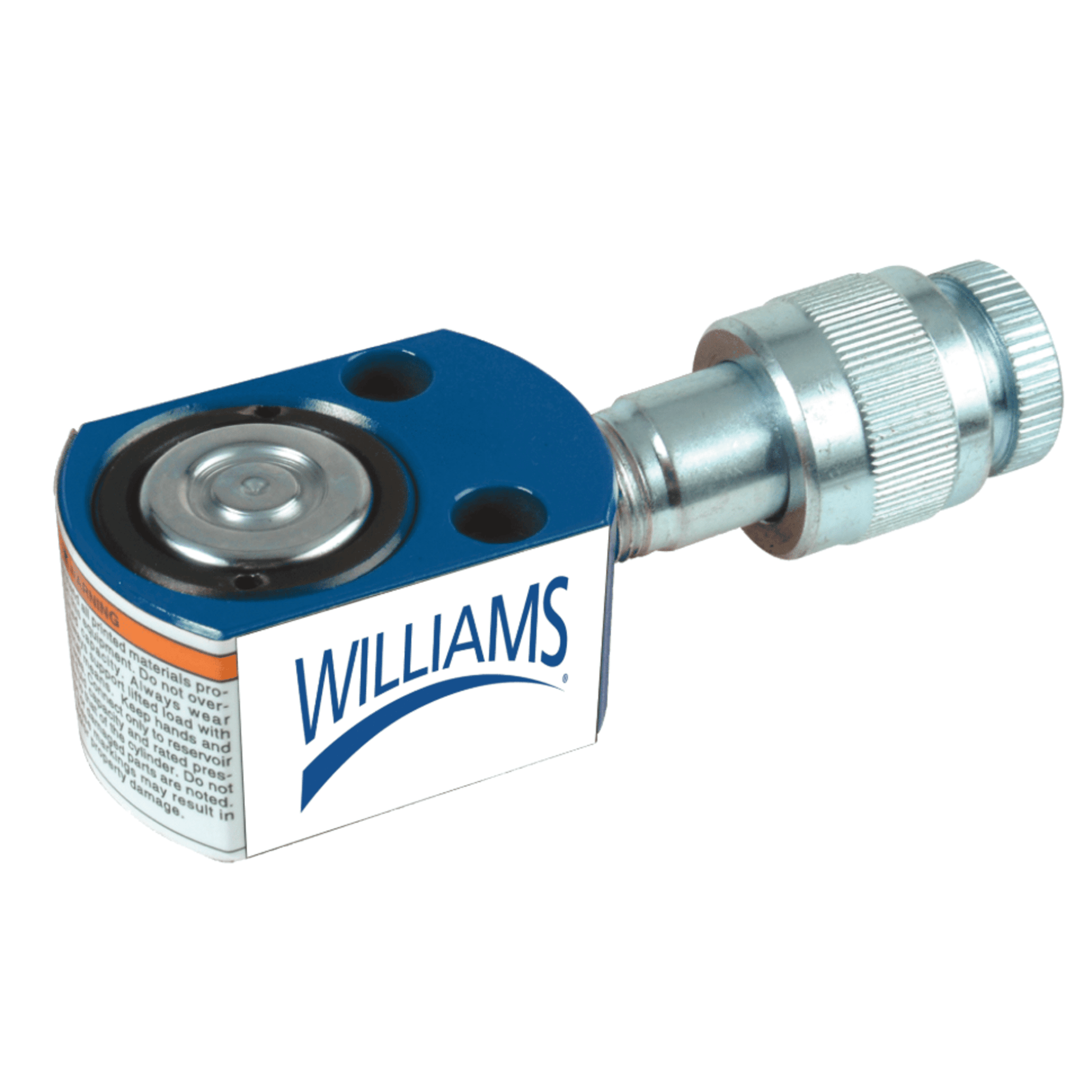

Williams 50 Ton Flat Body Cylinder (Part Number: JHW6CF50T05)

General Description: The Williams 50 Ton Flat Body Cylinder (part number JHW6CF50T05) is a high-capacity hydraulic tool designed for applications requiring significant lifting and pressing force in areas with minimal clearance. This cylinder is engineered for durability and efficiency, making it ideal for demanding industrial environments.

Key Features:

• Capacity: 50 tons, suitable for extremely heavy-duty applications.
• Stroke Length: 0.63 inches, providing precise control for small movements.
• Maximum Working Pressure: 10,000 psi (700 bar), ensuring high performance.
• Oil Capacity: 6.21 cubic inches, supporting efficient operation.
• Cylinder Bore Diameter: 3.54 inches.
• Outside Dimensions: 4.5 inches x 4.5 inches.
• Plunger Diameter: 2.76 inches.
• Collapsed Height: 2.64 inches, allowing use in low-clearance areas.
• Extended Height: 3.27 inches.
• Base to Inlet Port: 0.79 inches.
• Mounting Hole Bolt Circle: 2.62 inches.
• Mounting Hole Diameter: 0.43 inches.
• Counter Bore Diameter: 0.75 inches.
• Counter Bore Depth: 0.50 inches.
• Plunger to Base: 2.25 inches.
• Plunger to Mounting Hole: 2.13 inches.

Construction and Design:

• Material: Made of high-quality steel for durability and longevity.
• Design: Extremely low collapsed height for applications with minimal clearance at the lift point.
• Seals: High-quality seals to prevent leaks and ensure reliable performance.
• Bearings: Designed to handle side loads and extend the life of the cylinder.
• Couplers: High-flow 3/8" NPTF couplers for efficient hydraulic fluid transfer.
• Protection: Features to protect against dirt and contamination, ensuring long-term reliability.

Applications:

This cylinder is ideal for lifting, pressing, and other applications requiring high force in areas with limited space. Its robust design and high-pressure capacity make it suitable for use in various industrial settings, including manufacturing, construction, and maintenance.

Additional Information:

• Weight: Approximately 9.86 pounds.
• Dimensions: 2.64 inches (collapsed height) to 3.27 inches (extended height).

The Williams 50 Ton Flat Body Cylinder (JHW6CF50T05) combines strength, precision, and reliability, making it a valuable tool for demanding hydraulic applications
