Williams JHW6C10T06, 10 Ton Single Acting Cylinders 6'' Stroke

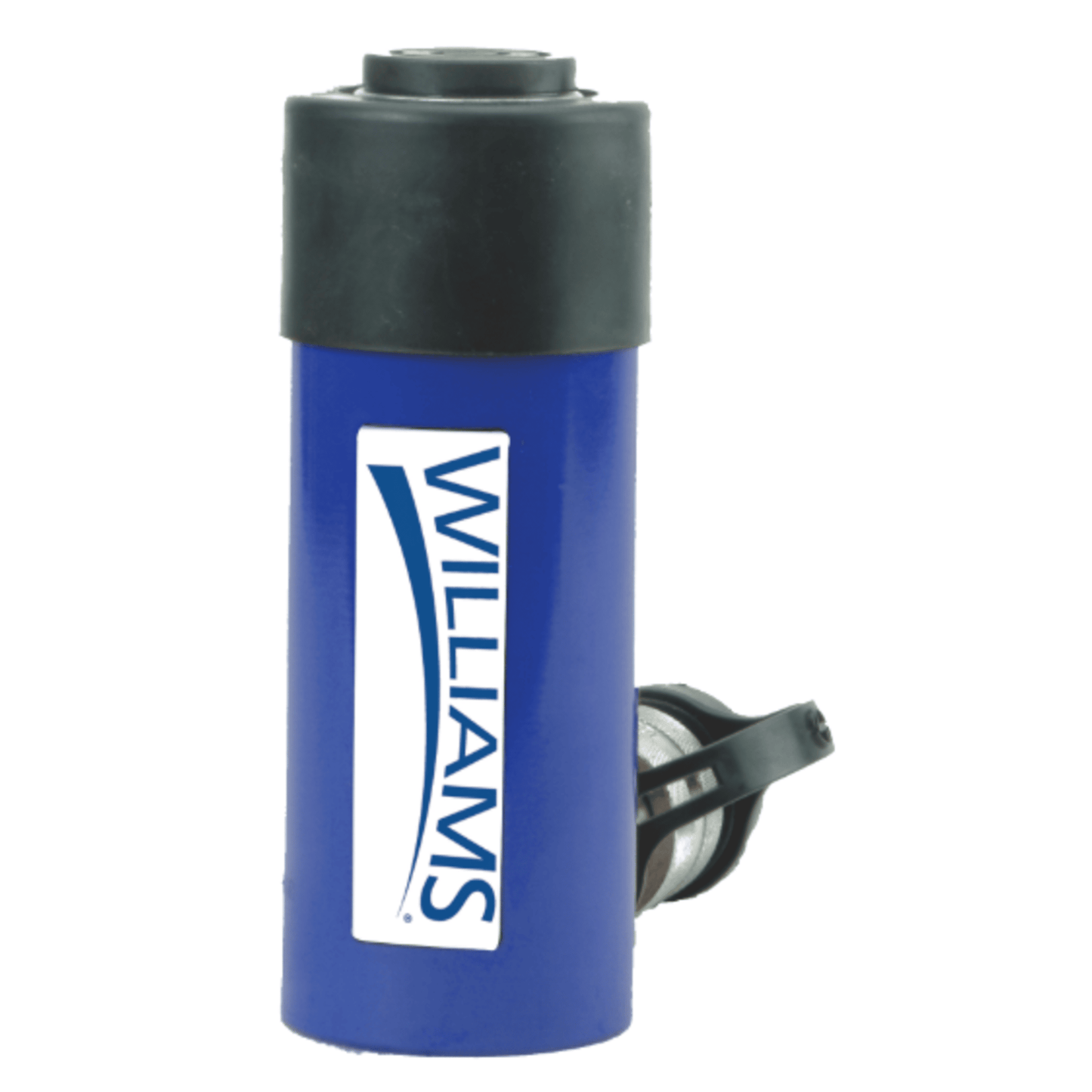

Williams 10 Ton Single Acting Cylinder (Part Number: JHW6C10T06)

General Description: The Williams 10 Ton Single Acting Cylinder with a 6-inch stroke (part number JHW6C10T06) is a robust hydraulic tool designed for heavy-duty lifting and pressing applications. This cylinder is engineered for durability and efficiency, making it ideal for demanding industrial environments.

Key Features:

• Capacity: 10 tons, suitable for extremely heavy-duty applications.
• Stroke Length: 6 inches, providing a substantial range of motion.
• Maximum Working Pressure: 10,000 psi (700 bar), ensuring high performance.
• Oil Capacity: 13.31 cubic inches, supporting efficient operation.
• Cylinder Bore Diameter: 1.69 inches.
• Outside Diameter: 2.26 inches.
• Plunger Diameter: 1.49 inches.
• Saddle Diameter: 1.38 inches.
• Base to Inlet Port: 0.77 inches.
• Collar Thread: 2 1/4 - 14 inches.
• Collar Thread Length: 1.30 inches.
• Plunger Internal Thread: 1 - 8 UNC.
• Plunger Thread Length: 0.79 inch.
• Base Mounting Hole Bolt Circle: 1.56 inches.
• Base Mounting Hole Thread: 5/16 - 18 UNC.
• Base Mounting Hole Thread Depth: 0.55 inch.

Construction and Design:

• Material: High-strength steel construction ensures durability and longevity.
• Plunger: Industrial hard chrome-plated ram helps prevent rust and corrosion.
• Seals: Polyurethane cup seal provides optimum performance.
• Bearings: One-piece high-grade alloy bearing for side load protection and extended life.
• Return Mechanism: Heavy-duty return spring for quicker retraction.
• Threads: Internal plunger threads and collar fixture threads for secure load handling.
• Couplers: High-flow 3/8" NPTF couplers for efficient hydraulic fluid transfer.
• Protection: Collar thread protector and rod wiper seals to keep out dirt and contamination.

Applications:

This cylinder is ideal for lifting, pressing, and other applications requiring high force in a compact form factor. Its robust design and high-pressure capacity make it suitable for use in various industrial settings, including manufacturing, construction, and maintenance.

Additional Information:

• Weight: Approximately 9.84 pounds.
• Dimensions: 9.84 inches (collapsed height) to 15.78 inches (extended height).

The Williams 10 Ton Single Acting Cylinder (JHW6C10T06) combines strength, precision, and reliability, making it a valuable tool for demanding hydraulic applications
