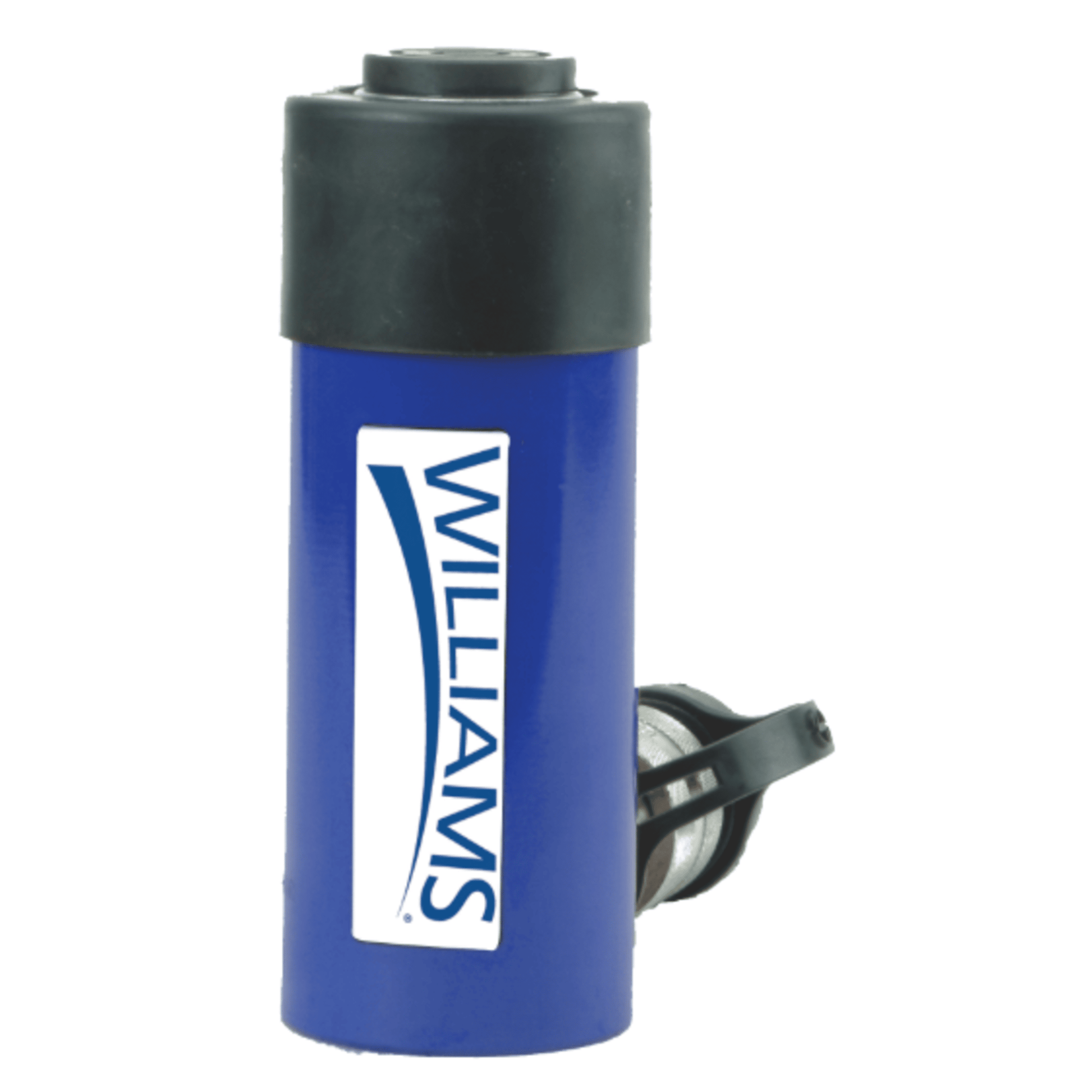

Williams 10 Ton Single Acting Cylinder (Part Number: JHW6C10T01)
General Description: The Williams 10 Ton Single Acting Cylinder with a 1-inch stroke (part number JHW6C10T01) is a powerful hydraulic tool designed for heavy-duty lifting and pressing applications. This cylinder is built to deliver high performance and durability in demanding industrial environments.
Key Features:
- Capacity: 10 tons, suitable for extremely heavy-duty applications.
- Stroke Length: 1 inch, providing precise control for small movements.
- Maximum Working Pressure: 10,000 psi (700 bar), ensuring high performance.
- Oil Capacity: 2.24 cubic inches, supporting efficient operation.
- Cylinder Bore Diameter: 1.69 inches.
- Outside Diameter: 2.26 inches.
- Plunger Diameter: 1.49 inches.
- Saddle Diameter: Not specified.
- Base to Inlet Port: 0.77 inches.
- Collar Thread: 2 1/4 - 14 inches.
- Collar Thread Length: 1.30 inches.
- Plunger Internal Thread: #10-24 UNC.
- Plunger Thread Length: 0.24 inches.
- Base Mounting Hole Bolt Circle: 1.56 inches.
- Base Mounting Hole Thread: 5/16 - 18 UNC.
- Base Mounting Hole Thread Depth: 0.55 inches.
Construction and Design:
- Material: High-strength steel construction ensures durability and longevity.
- Plunger: Industrial hard chrome-plated ram helps prevent rust and corrosion.
- Seals: Polyurethane cup seal provides optimum performance.
- Bearings: One-piece high-grade alloy bearing for side load protection and extended life.
- Return Mechanism: Heavy-duty return spring for quicker retraction.
- Threads: Internal plunger threads and collar fixture threads for secure load handling.
- Couplers: High-flow 3/8" NPTF couplers for efficient hydraulic fluid transfer.
- Protection: Collar thread protector and rod wiper seals to keep out dirt and contamination.
Applications:
This cylinder is ideal for lifting, pressing, and other applications requiring high force in a compact form factor. Its robust design and high-pressure capacity make it suitable for use in various industrial settings, including manufacturing, construction, and maintenance.
Additional Information:
- Weight: Approximately 5 pounds.
- Dimensions: 3.62 inches (collapsed height) to 4.62 inches (extended height).
The Williams 10 Ton Single Acting Cylinder (JHW6C10T01) combines strength, precision, and reliability, making it a valuable tool for demanding hydraulic applications
