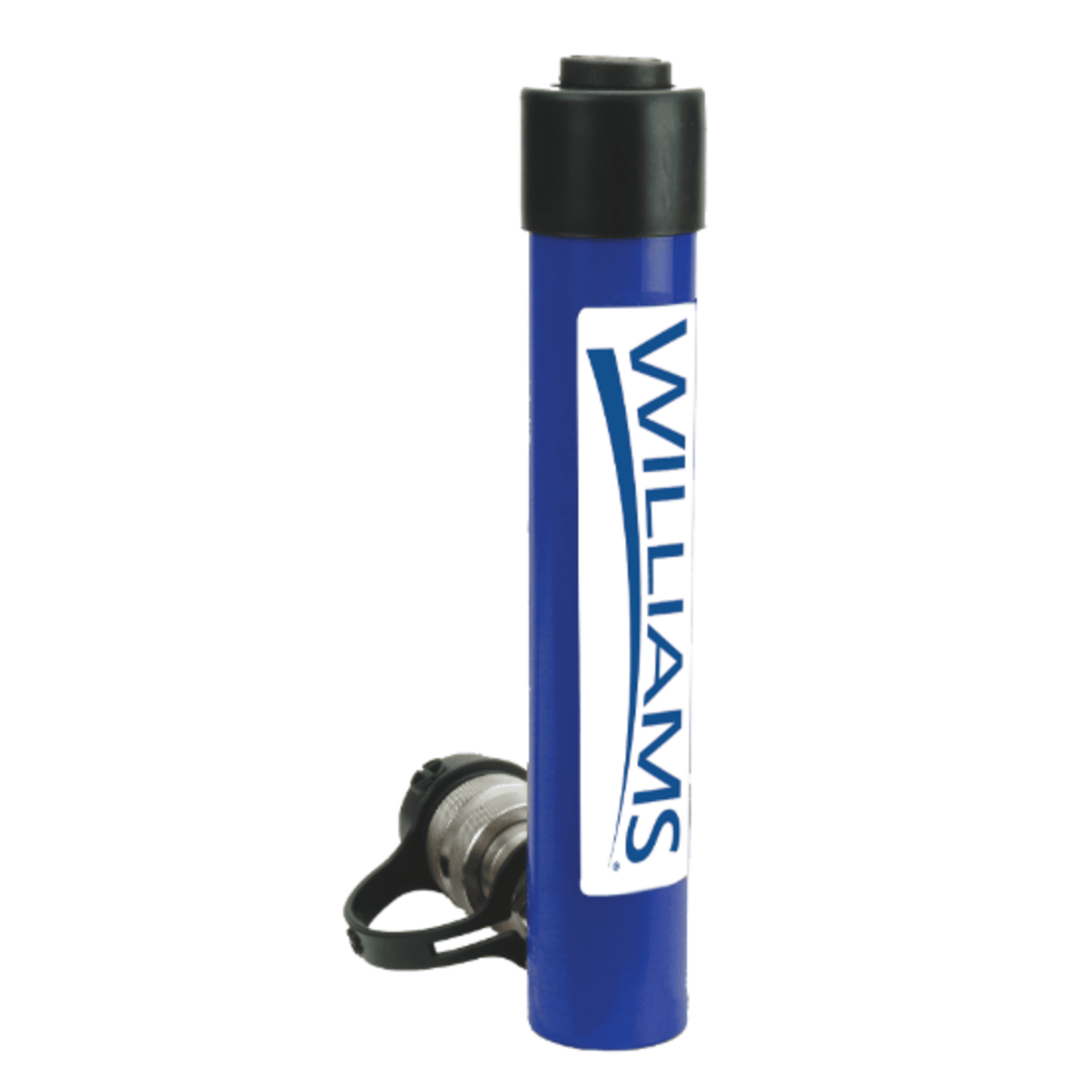

Williams JHW6C05T07 – 5 Ton Single Acting Hydraulic Cylinder

The Williams JHW6C05T07 is a heavy-duty hydraulic cylinder designed for industrial applications requiring extended stroke and reliable performance. With a 7-inch stroke and 5-ton capacity, it delivers precision and strength for lifting, pushing, and pressing tasks.

Key Specifications

• Capacity: 5 tons
• Stroke: 7.00 inches
• Maximum Working Pressure: 10,000 psi (700 bar)
• Oil Capacity: 7.11 cubic inches
• Collapsed Height: 10.62"
• Extended Height: 17.62"
• Cylinder Bore Diameter: 1.13"
• Outside Diameter: 1.50"
• Plunger Diameter: 1.00"
• Saddle Diameter: 0.98"
• Base to Inlet Port: 0.79"
• Collar Thread: 1-1/2"-16
• Collar Thread Length: 1.10"
• Plunger Internal Thread: 3/4"-16 UNF
• Plunger Thread Length: 0.63"
• Base Mounting Hole Thread: 1/4"-20 UNC
• Base Mounting Hole Depth: 0.55"

Construction & Features

• Material: High-strength steel body for durability
• Ram: Industrial hard chrome-plated for corrosion resistance
• Seals: Polyurethane cup seal for optimum performance
• Return Mechanism: Heavy-duty return spring for quick retraction
• Bearings: One-piece high-grade alloy bearing for side load protection
• Couplers: High-flow 3/8" NPTF for efficient hydraulic fluid transfer
• Protection: Rod wiper seals and collar thread protector keep out dirt and contaminants
• Mounting: Two base mounting holes for secure installation
