JHW6C05T01 - Williams - 5 Ton Single Acting Cylinders 1'' Stroke

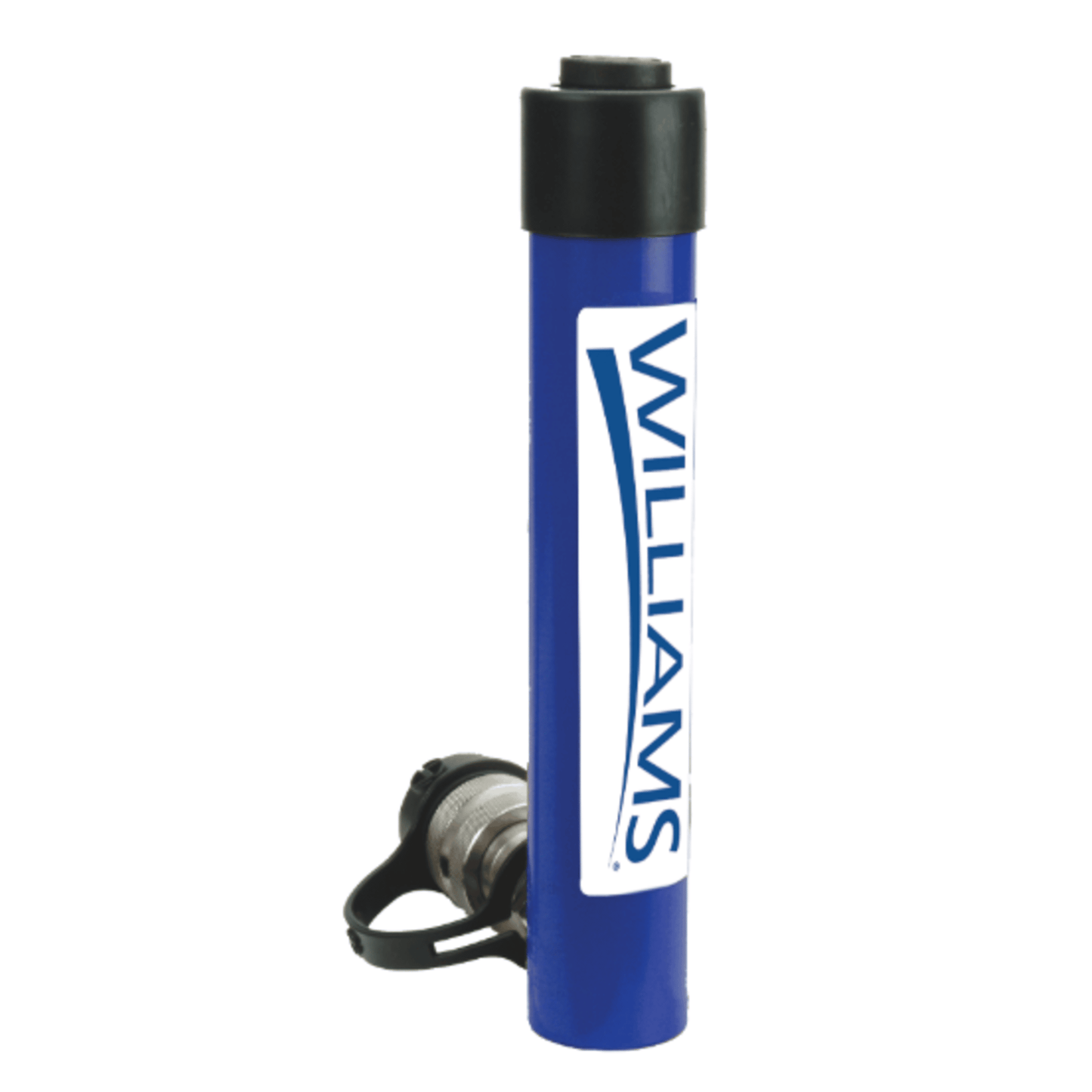

Williams JHW6C05T01 – 5 Ton Single Acting Hydraulic Cylinder

The Williams JHW6C05T01 is a rugged, high-performance hydraulic cylinder designed for heavy-duty lifting and pressing applications in industrial environments. Its compact size and robust construction make it ideal for situations where strength and precision are critical.

Key Specifications

• Capacity: 5 tons
• Stroke: 1 inch
• Maximum Working Pressure: 10,000 psi (700 bar)
• Oil Capacity: 1 cubic inch
• Collapsed Height: 4.58"
• Extended Height: 5.58"
• Cylinder Bore Diameter: 1.13"
• Outside Diameter: 1.50"
• Plunger Diameter: 1.00"
• Saddle Diameter: 0.98"
• Base Mounting Hole Thread: 1/4"-20 UNC
• Collar Thread: 1-1/2"-16
• Plunger Internal Thread: 3/4"-16 UNF

Construction & Features

• Material: High-strength steel body for durability
• Ram: Industrial hard chrome-plated for corrosion resistance
• Seals: Polyurethane cup seal for optimum performance
• Return Mechanism: Heavy-duty return spring for quick retraction
• Bearings: One-piece high-grade alloy bearing for side load protection
• Couplers: High-flow 3/8" NPTF for efficient hydraulic fluid transfer
• Protection: Rod wiper seals keep out dirt and contaminants; collar thread protector included
• Mounting: Two base mounting holes for secure installation
