Williams JHW6C05T00, 5 Ton Single Acting Cylinders 0.25'' Stroke

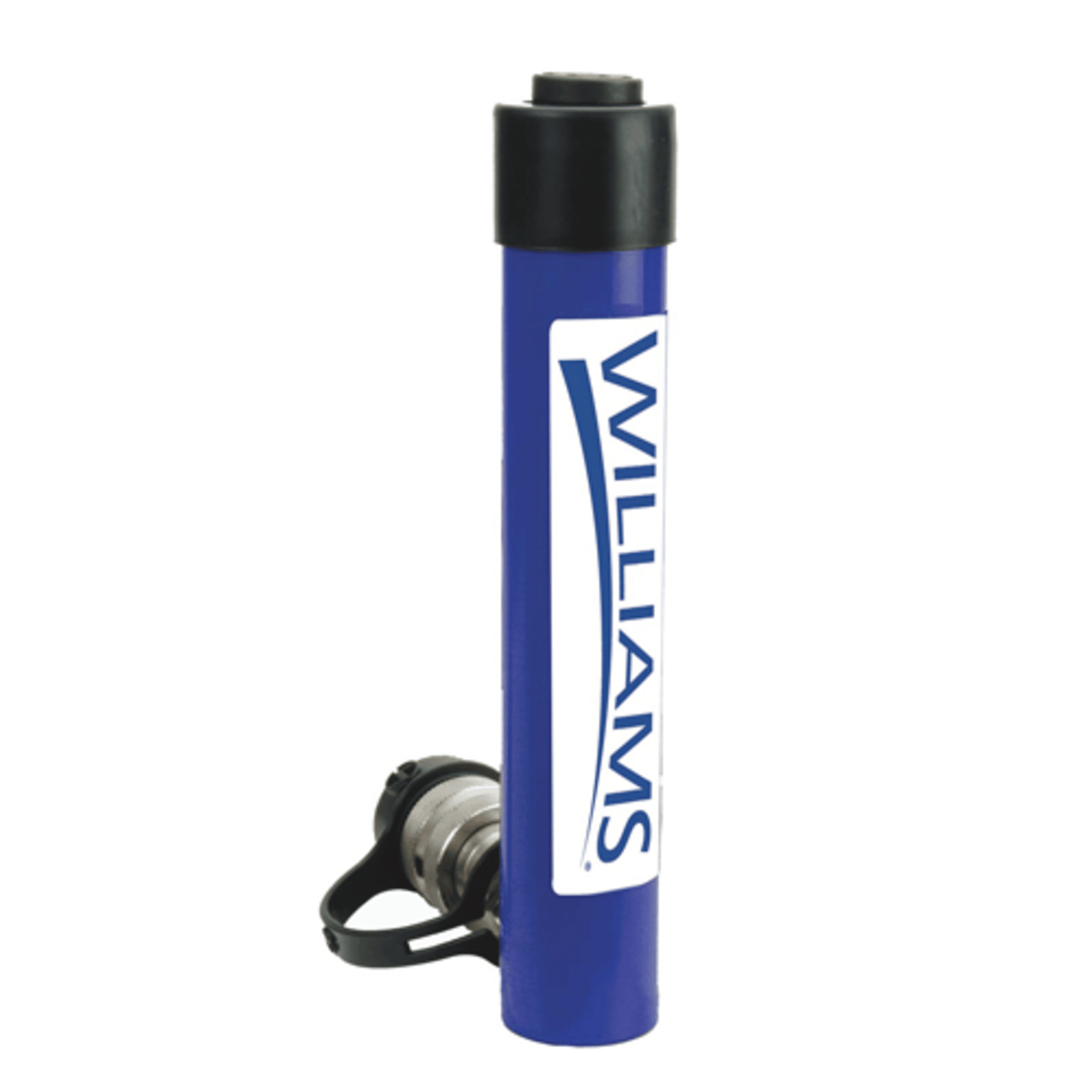

Williams 5 Ton Single Acting Cylinder (Part Number: JHW6C05T00)

General Description: The Williams 5 Ton Single Acting Cylinder with a 0.25-inch stroke (part number JHW6C05T00) is a compact and powerful hydraulic tool designed for precise lifting and pressing applications. This cylinder is built to deliver high performance and durability in demanding industrial environments.

Key Features:

• Capacity: 5 tons, suitable for heavy-duty applications.
• Stroke Length: 0.25 inches, providing precise control for small movements.
• Maximum Working Pressure: 10,000 psi (700 bar), ensuring high performance.
• Oil Capacity: 0.63 cubic inches, supporting efficient operation.
• Cylinder Bore Diameter: 1.18 inches.
• Outside Diameter: 1.61 inches.
• Plunger Diameter: 0.98 inches.
• Saddle Diameter: 0.98 inches.
• Base to Inlet Port: 0.79 inches.
• Collar Thread: 1 1/2 - 16 inches.
• Collar Thread Length: 1.10 inches.
• Plunger Internal Thread: 3/4 - 16 UNF.
• Plunger Thread Length: 0.63 inches.
• Base Mounting Hole Bolt Circle: 1.00 inch.
• Base Mounting Hole Thread: 1/4 - 20 UNC.
• Base Mounting Hole Thread Depth: 0.55 inches.

Construction and Design:

• Material: High-strength steel construction ensures durability and longevity.
• Plunger: Industrial hard chrome-plated ram helps prevent rust and corrosion.
• Seals: Polyurethane cup seal provides optimum performance.
• Bearings: One-piece high-grade alloy bearing for side load protection and extended life.
• Return Mechanism: Heavy-duty return spring for quicker retraction.
• Threads: Internal plunger threads and collar fixture threads for secure load handling.
• Couplers: High-flow 3/8" NPTF couplers for efficient hydraulic fluid transfer.
• Protection: Collar thread protector and rod wiper seals to keep out dirt and contamination.

Applications:

This cylinder is ideal for lifting, pressing, and other applications requiring high force in a compact form factor. Its robust design and high-pressure capacity make it suitable for use in various industrial settings, including manufacturing, construction, and maintenance.

Additional Information:

• Weight: Approximately 4.4 pounds.
• Dimensions: 2.36 x 2.24 inches (collapsed height).

The Williams 5 Ton Single Acting Cylinder (JHW6C05T00) combines strength, precision, and reliability, making it a valuable tool for demanding hydraulic applications
