JHW6S01T03 - Williams - 1 Ton Spreader

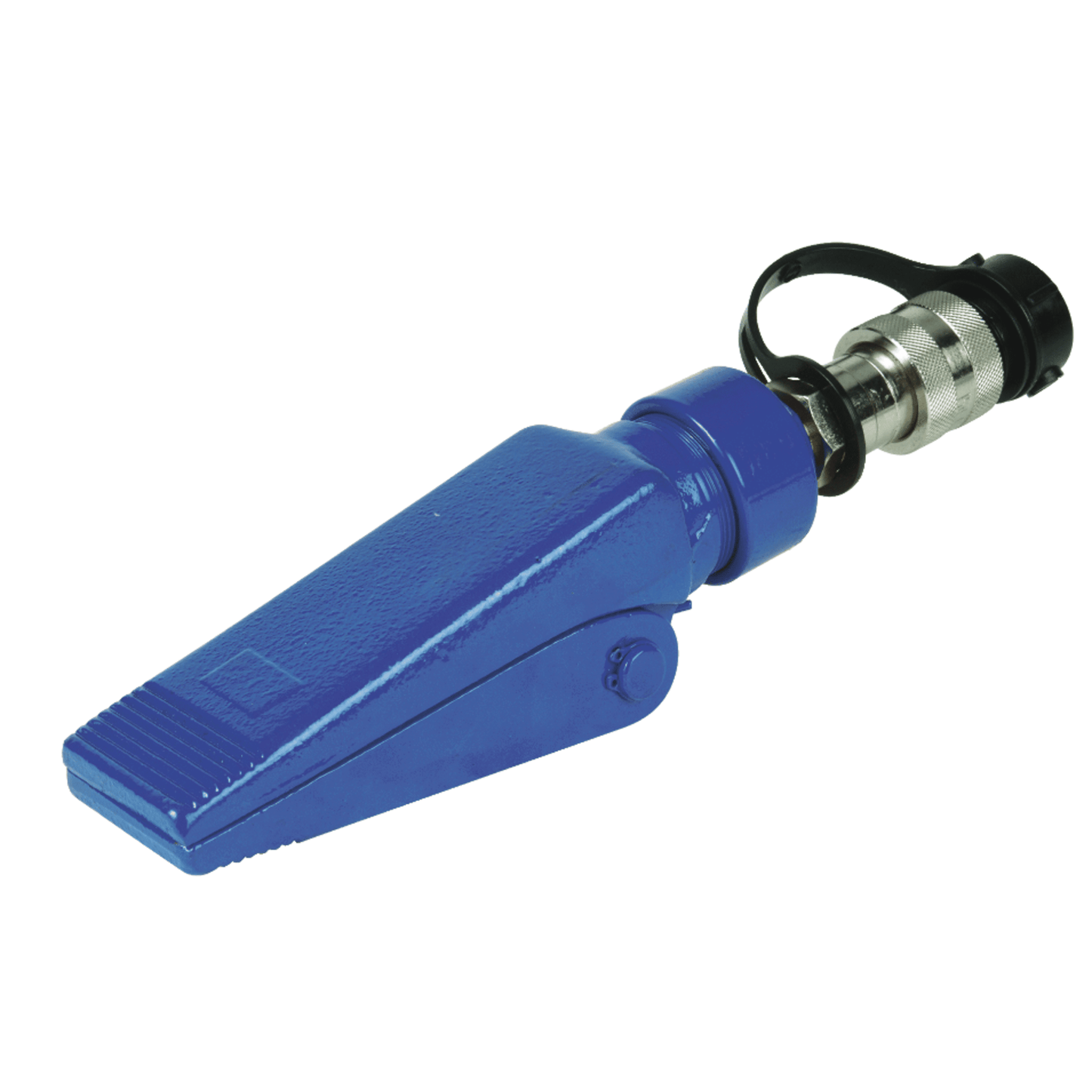

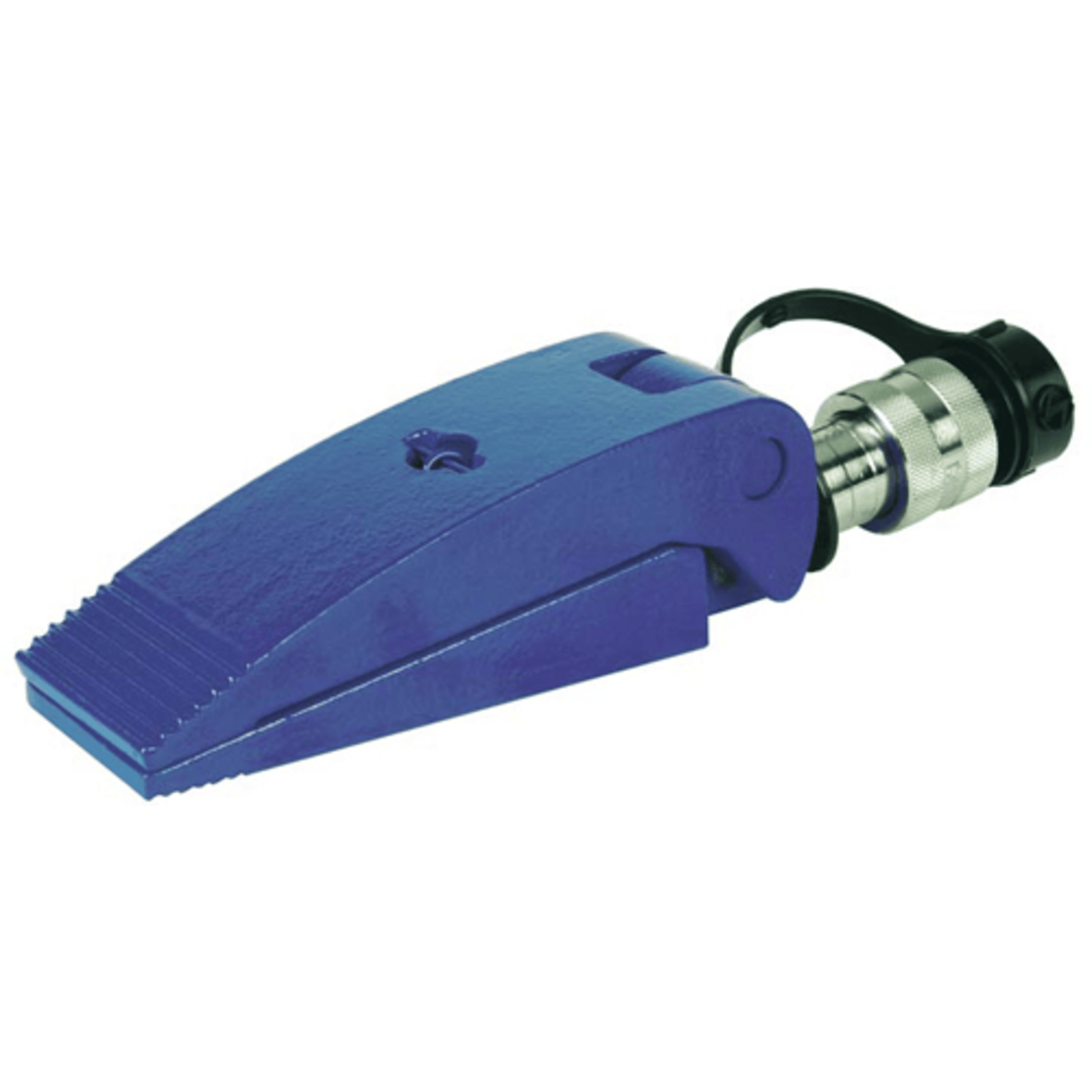

Williams 1 Ton Hydraulic Spreader – JHW6S01T03

The Williams 1T Spreader is a compact, single-acting hydraulic tool designed for precision expansion in confined spaces. Ideal for applications requiring wedging, prying, or opening, this tool delivers reliable performance in challenging environments.

Key Features:

• Capacity: 1 Ton
• Maximum Working Pressure: 10,000 psi (700 bar)
• Design: Compact size for hard-to-reach areas
• Safety: Positive over-travel stops and return spring for controlled operation
• Connection: High-flow coupler for direct pump hose attachment
• Construction: High-strength forged steel with industrial-grade chrome plating for durability
• Return Mechanism: Spring return for quick retraction

Technical Specifications:

• Cylinder Effective Area: 1.09 in²
• Oil Capacity: 0.86 in³
• Maximum Spread: 3.90 in
• Minimum Tip Clearance: 0.47 in
• Stroke: 3.43 in
• Dimensions: 6.57 in overall length
• Weight: ~5.2 lbs
• Country of Origin: Taiwan

Applications: Perfect for maintenance, repair, and industrial tasks where controlled spreading force is required in tight spaces.
