JHW6S.5T03 - Williams - 1/2T Spreader

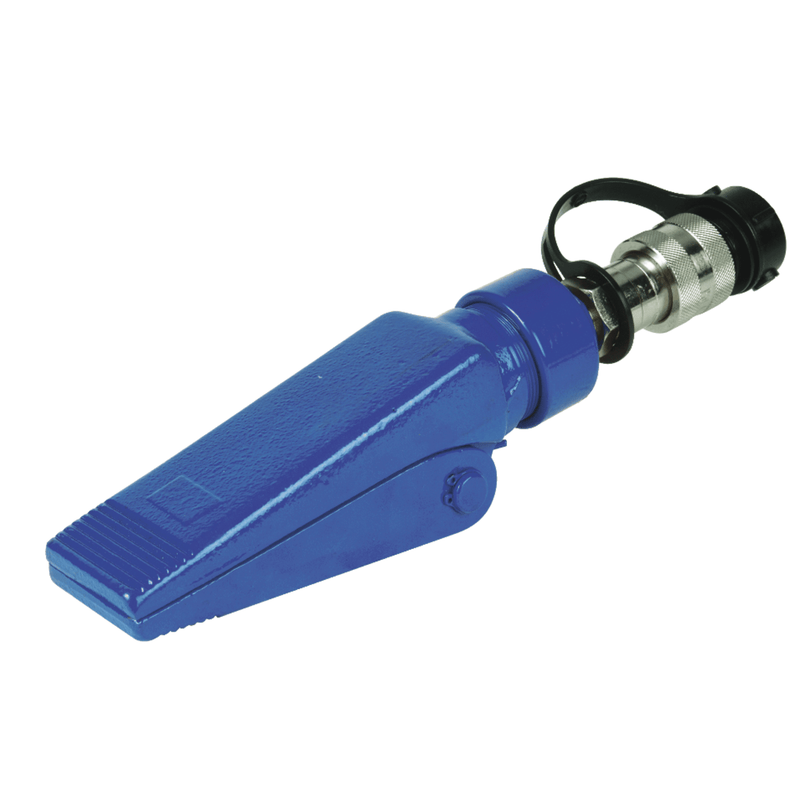

Williams 1/2 Ton Hydraulic Spreader – JHW6S.5T03

The Williams 1/2T Spreader is a compact, single-acting hydraulic tool engineered for precision expansion in confined spaces. It’s ideal for maintenance, repair, and industrial applications where controlled spreading force is required.

Key Features:

• Capacity: 0.5 Ton
• Maximum Working Pressure: 10,000 psi (700 bar)
• Design: Compact size for easy use in hard-to-reach areas
• Safety: Positive over-travel stops and return spring for controlled operation
• Connection: High-flow coupler for direct pump hose attachment
• Construction: Heavy-duty steel with industrial-grade chrome plating for durability
• Return Mechanism: Spring return for quick retraction

Technical Specifications:

• Cylinder Effective Area: 1.22 in²
• Oil Capacity: 0.58 in³
• Maximum Spread: 3.54 in
• Overall Length: 7.57 in
• Minimum Tip Clearance: 0.51 in
• Other Dimensions: 2.05 in × 2.36 in
• Weight: ~4.8 lbs
• Country of Origin: Taiwan

Applications: Perfect for jobs requiring wedging, prying, or opening in tight spaces, such as industrial maintenance and assembly tasks.
