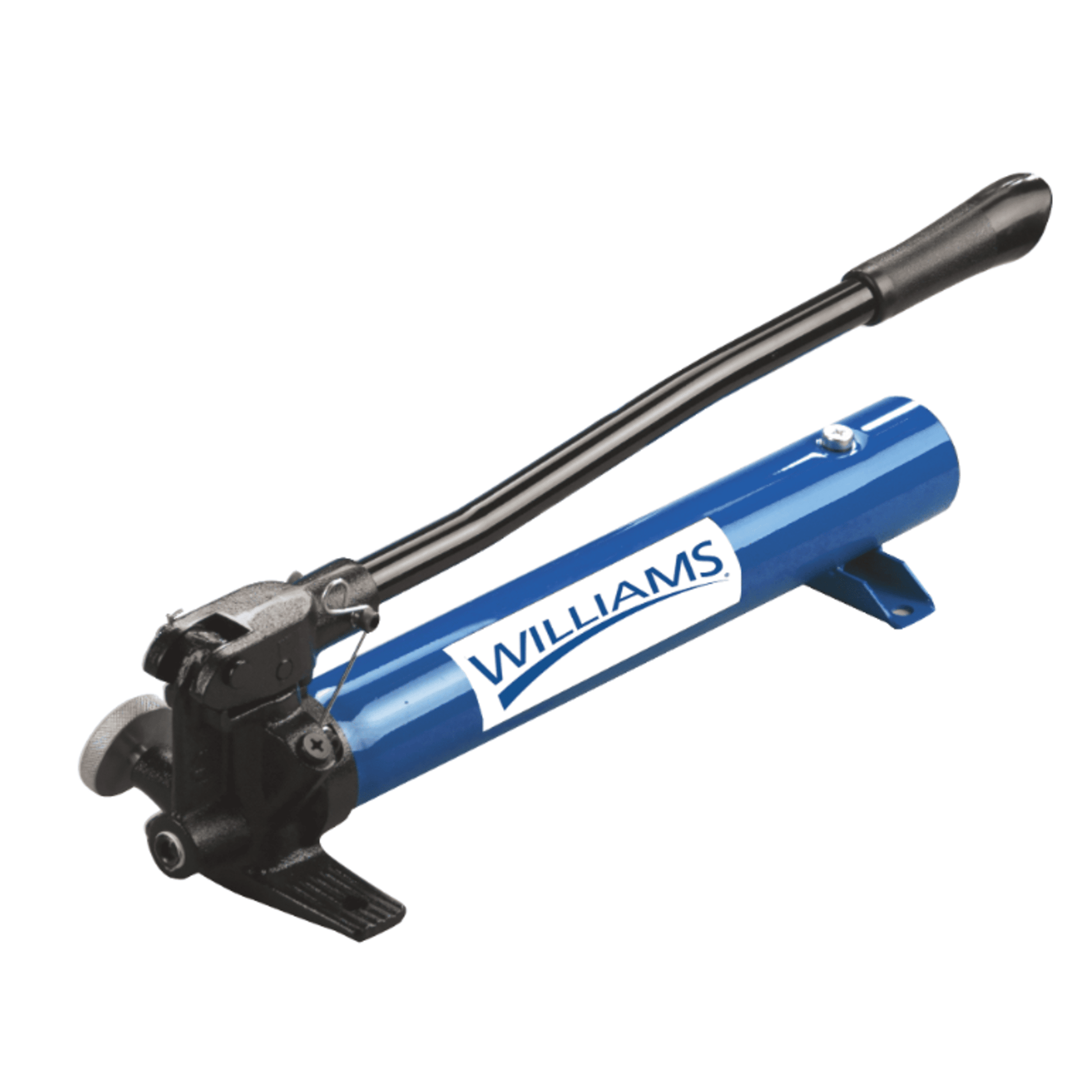

Williams - Two Speed Hand Pump 21.4" Usable Oil Capacity - 5HS2S35

Williams JHW5HS2S35 Two Speed Hand Pump 21.4 in Usable Oil Capacity.

Features

• 5HS2S35 and 5HS2S100 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance
• Load release valve for single acting cylinder usage
• All hand pumps function in horizontal positions and will also function in some vertical positions
• Pressure relief valve for overload protection
• Large oil capacities to power a wide range of cylinders and tools
• 5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation

Product Details

• Part Number: JHW5HS2S35
• Brand: Williams
• Category: Hand Tools › Industrial Hydraulics
• Dimensions (in) A: 13.43
• Dimensions (in) B: 5.91
• Dimensions (in) C: 13.89
• Dimensions (in) D: 9.09
• Dimensions (in) E: 2.36
• Dimensions (in) F: 1.34
• Dimensions (in) H: 3.35
• Dimensions (in) J: 2.56
• Max Operating Force (lb): 88
• Maximum Working Pressure: 10,000 psi / 700 bar
• Oil Displacement Per Stroke In3 1St Stage: .18
• Oil Displacement Per Stroke In3 2Nd Stage: .05
• Oil Outlet Port: 1/4"-18NPTF
• Piston Stroke (in): .38
• Pressure Rating (psi) 1St Stage: 200
• Pressure Rating (psi) 2Nd Stage: 10,002
• Pump Type: Two-Speed
• Usable Oil Capacity In3: 21.4
• Used With Cylinder: Single Acting
