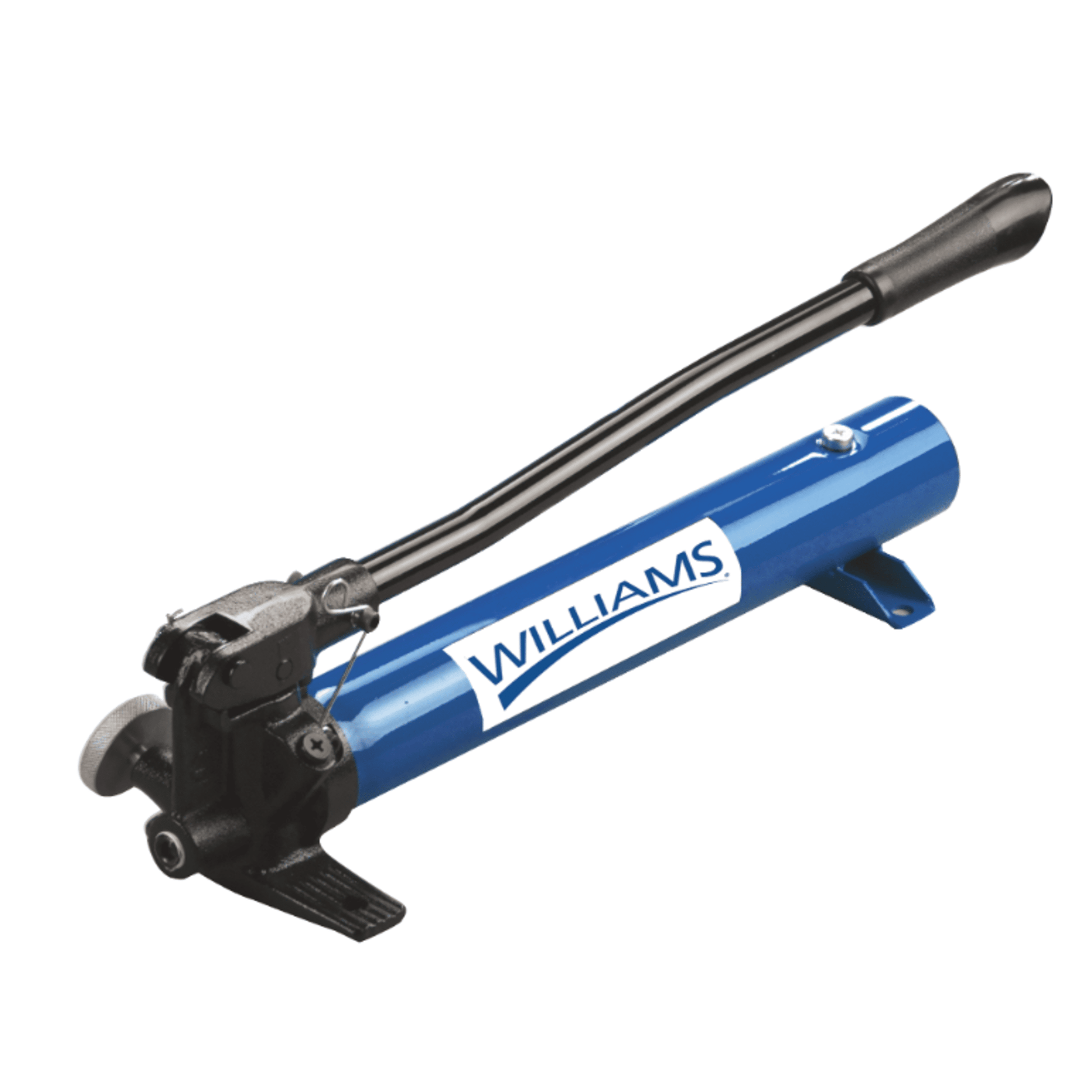

Williams - Two Speed Hand Pump 128.0" Usable Oil Capacity - 5HS2S200

Williams JHW5HS2S200 Two Speed Hand Pump 128.0 in Usable Oil Capacity.

Features

• 5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation
• 5HS2S35 and 5HS2S100 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance
• All hand pumps function in horizontal positions and will also function in some vertical positions
• Load release valve for single acting cylinder usage
• Large oil capacities to power a wide range of cylinders and tools
• Pressure relief valve for overload protection

Product Details

• Part Number: JHW5HS2S200
• Brand: Williams
• Category: Hand Tools › Industrial Hydraulics
• Dimensions (in) A: 19.75
• Dimensions (in) B: 6.64
• Dimensions (in) C: 23.69
• Dimensions (in) D: 18.37
• Dimensions (in) E: 2.36
• Dimensions (in) F: 1.73
• Dimensions (in) H: 4.72
• Dimensions (in) J: 3.54
• Dimensions (in) K: 22.56
• Max Operating Force (lb): 132
• Maximum Working Pressure: 10,000 psi / 700 bar
• Oil Displacement Per Stroke In3 1St Stage: .81
• Oil Displacement Per Stroke In3 2Nd Stage: .14
• Oil Outlet Port: 3/8"-18NPTF
• Piston Stroke (in): .82
• Pressure Rating (psi) 1St Stage: 200
• Pressure Rating (psi) 2Nd Stage: 10,004
• Pump Type: Two-Speed
• Usable Oil Capacity In3: 128
• Used With Cylinder: Single Acting
