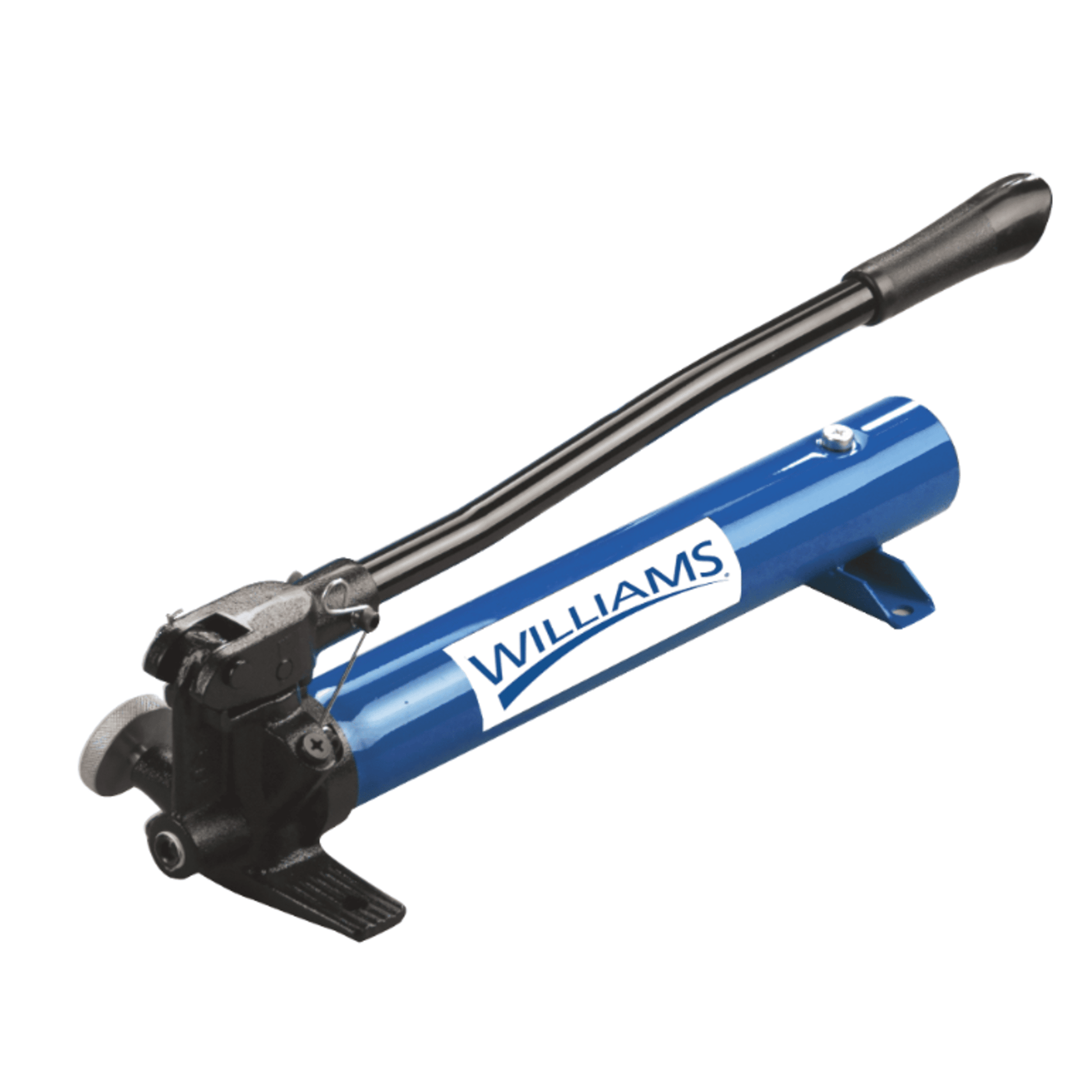

Williams - Single Speed Hand Pump 36.5.0" Usable Oil Capacity - 5HS1S60

Williams JHW5HS1S60 Single Speed Hand Pump 36.5.0 in Usable Oil Capacity.

Features

• 5HS2S35 and 5HS2S100 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance
• 5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation
• Pressure relief valve for overload protection
• Load release valve for single acting cylinder usage
• Large oil capacities to power a wide range of cylinders and tools
• All hand pumps function in horizontal positions and will also function in some vertical positions

Product Details

• Part Number: JHW5HS1S60
• Brand: Williams
• Category: Hand Tools › Industrial Hydraulics
• Dimensions (in) A: 18.94
• Dimensions (in) B: 6.46
• Dimensions (in) C: 19.53
• Dimensions (in) D: 15.35
• Dimensions (in) E: 1.57
• Dimensions (in) F: 1.26
• Dimensions (in) H: 5.2
• Dimensions (in) J: 3.74
• Dimensions (in) K: 14.45
• Max Operating Force (lb): 109
• Maximum Working Pressure: 10,000 psi / 700 bar
• Oil Displacement Per Stroke In3 2Nd Stage: .15
• Oil Outlet Port: 3/8"-18NPTF
• Piston Stroke (in): .79
• Pressure Rating (psi) 2Nd Stage: 10,000
• Pump Type: Single-Speed
• Usable Oil Capacity In3: 36.5
• Used With Cylinder: Single Acting
