Webster - Single Stage Pump - VO28D-4DO20
Original price
$2,240.85
-
Original price
$2,240.85
Original price
$2,240.85
$2,240.85
-
$2,240.85
Current price
$2,240.85
SKU WTR-VO28D-4DO20
Availability:
In stock - ships in 2-3 days

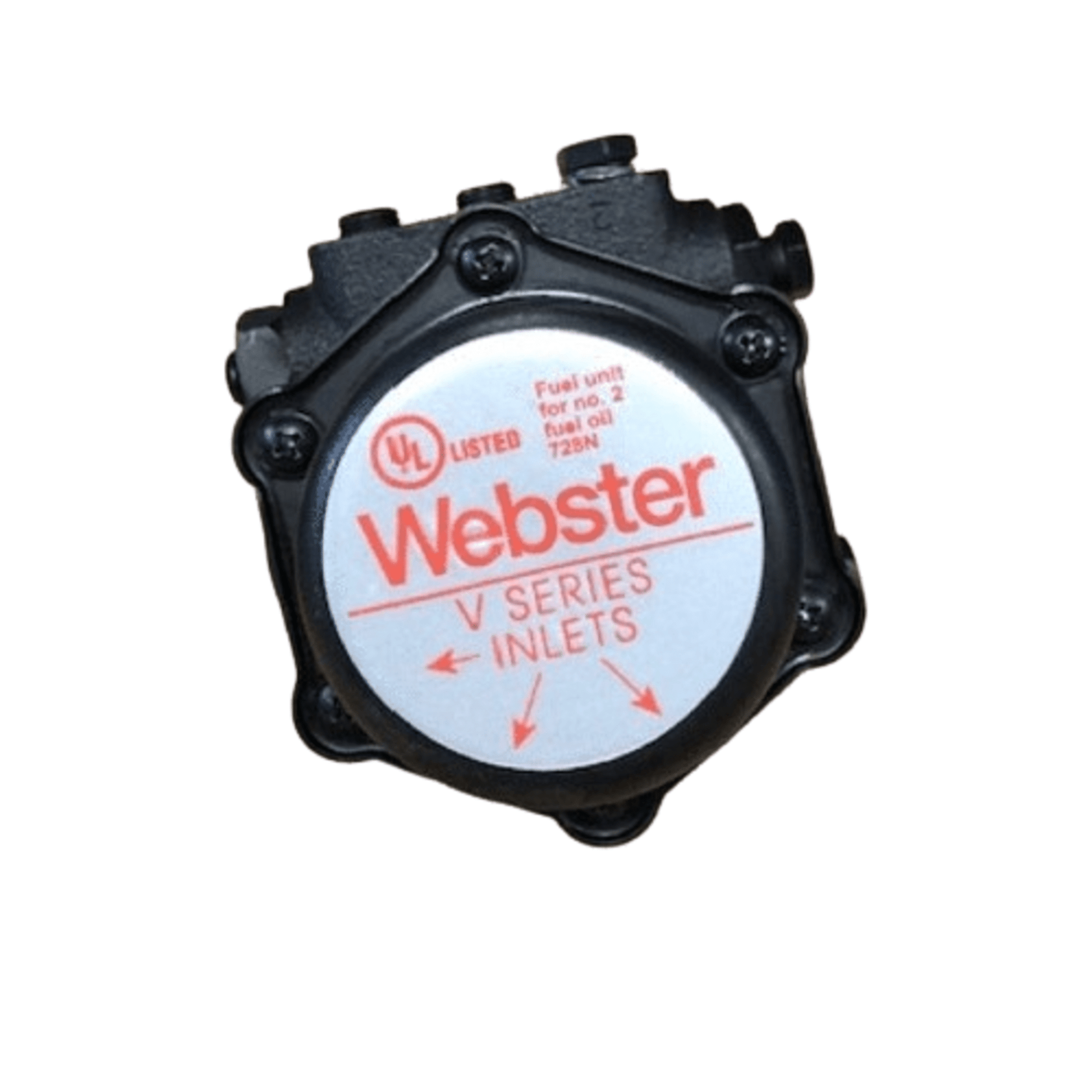

Webster V028D-4DO20 single stage V Series high delivery fuel pump.
The V Series is designed to meet the high delivery requirements of commercial, industrial and institutional systems with a minimum of mechanical and hydraulic noise.
Features
- Field adjustable integral regulating valve
- No internal filter – external line filter recommended
- Hub or two-bolt flange mounting
- Double lip shaft seal
- Seal pressed in body
Product Details
- Model: V028D-4DO20
- Brand: Webster
- Series: V Series
- Type: Single Stage Fuel Pump
- Rated Pressure: 300 PSI
- Factory Set Pressure: 150 PSI
- Typical Adjustment Range: 125–330 PSI
- Gear Size: 1" nominal thickness
- Max. Recommended Firing Rate (#2 oil): 115 GPH @ 1725 RPM
- Gear Set Capacity: 190 GPH @ 1725 RPM
- Recommended Motor (#2 oil): 1-1/2 HP @ 1725 RPM
- Rotation (viewed from shaft end): Clockwise, nozzle port right (D Style)
- Porting: 1/4" NPTF gauge and nozzle ports; 3/8" NPTF return and 2 optional inlets; 1/2" NPTF inlet in cover
- Shaft: 7/16" x 1-7/8" extension
- Max. Inlet Vacuum: 10" Hg
