RV2104-3 - Webster - RV2104-3, Regulating Valve Assembly

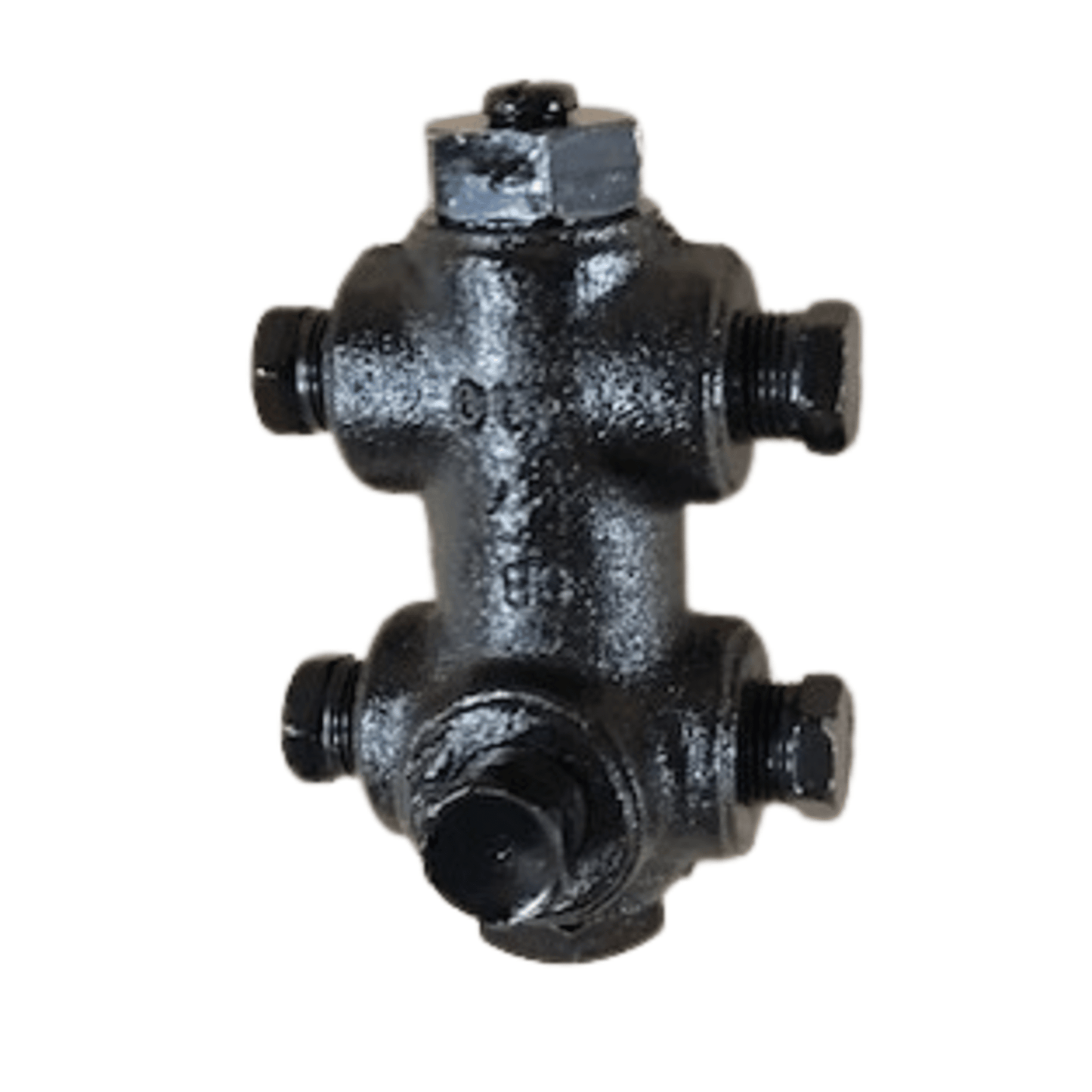

The Webster RV2104-3 is a regulating valve assembly designed for fuel oil pressure regulation in oil heating systems. It is part of the RV2100 Series, which is known for precise pressure control without delivery cut-off.

🔧 Technical Specifications

• Model: RV2104-3
• Series: RV2100
• Port Size: 3/8 inch
• Adjustment Pressure Range: 80–140 PSI
• Factory Set Pressure: 100 PSI
• Flow Capacity: 150 GPH (Gallons Per Hour)
• Fuel Compatibility: Suitable for fuel oils #1 through #6
• Function: Pressure regulation only (no delivery cut-off)

⚙️ Key Features

• Reliable Pressure Control: Maintains consistent fuel pressure in burner systems.
• Wide Fuel Compatibility: Handles a range of fuel oil viscosities.
• Durable Construction: Built for long-term use in demanding heating environments.
