Webster - Two Stage Pump - 2VO86C5D04

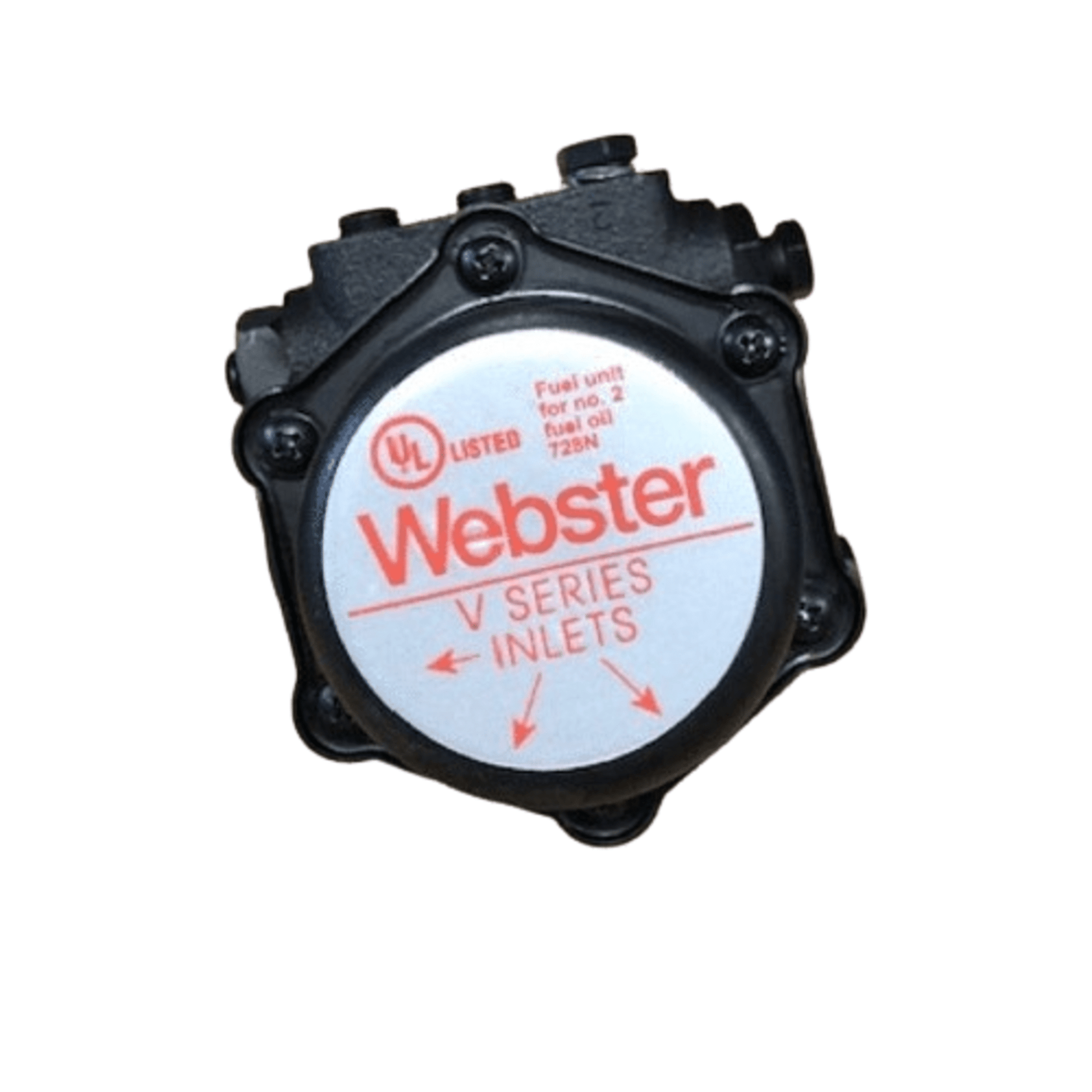

Webster 2V086C-5D04 two stage V Series high delivery supply pump.

The V Series is designed to meet the high delivery requirements of commercial, industrial and institutional systems with a minimum of mechanical and hydraulic noise.

Features

• Field adjustable integral regulating valve
• No internal filter – external line filter recommended
• Hub or two-bolt flange mounting
• Double lip shaft seal
• Inlet gear one size larger than pressure gear
• Seal pressed in body
• Pump unit used in Webster SPM-135 supply pump assemblies

Product Details

• Model: 2V086C-5D04
• Brand: Webster
• Series: V Series
• Type: Two Stage Supply Pump
• Rated Pressure: 80 PSI
• Factory Set Pressure: 20 PSI
• Typical Adjustment Range: 15–85 PSI
• Gear Size: 3/4" nominal thickness
• Max. Recommended Firing Rate (#2 oil): 135 GPH @ 1725 RPM
• Gear Set Capacity: 250 GPH @ 1725 RPM
• Recommended Motor (#2 oil): 1/2 HP @ 1725 RPM
• Rotation (viewed from shaft end): Counterclockwise, nozzle port left (C Style)
• Porting: 1/4" NPTF gauge and nozzle ports; 3/8" NPTF return and 2 optional inlets; 1/2" NPTF inlet in cover
• Max. Inlet Vacuum: 15" Hg
