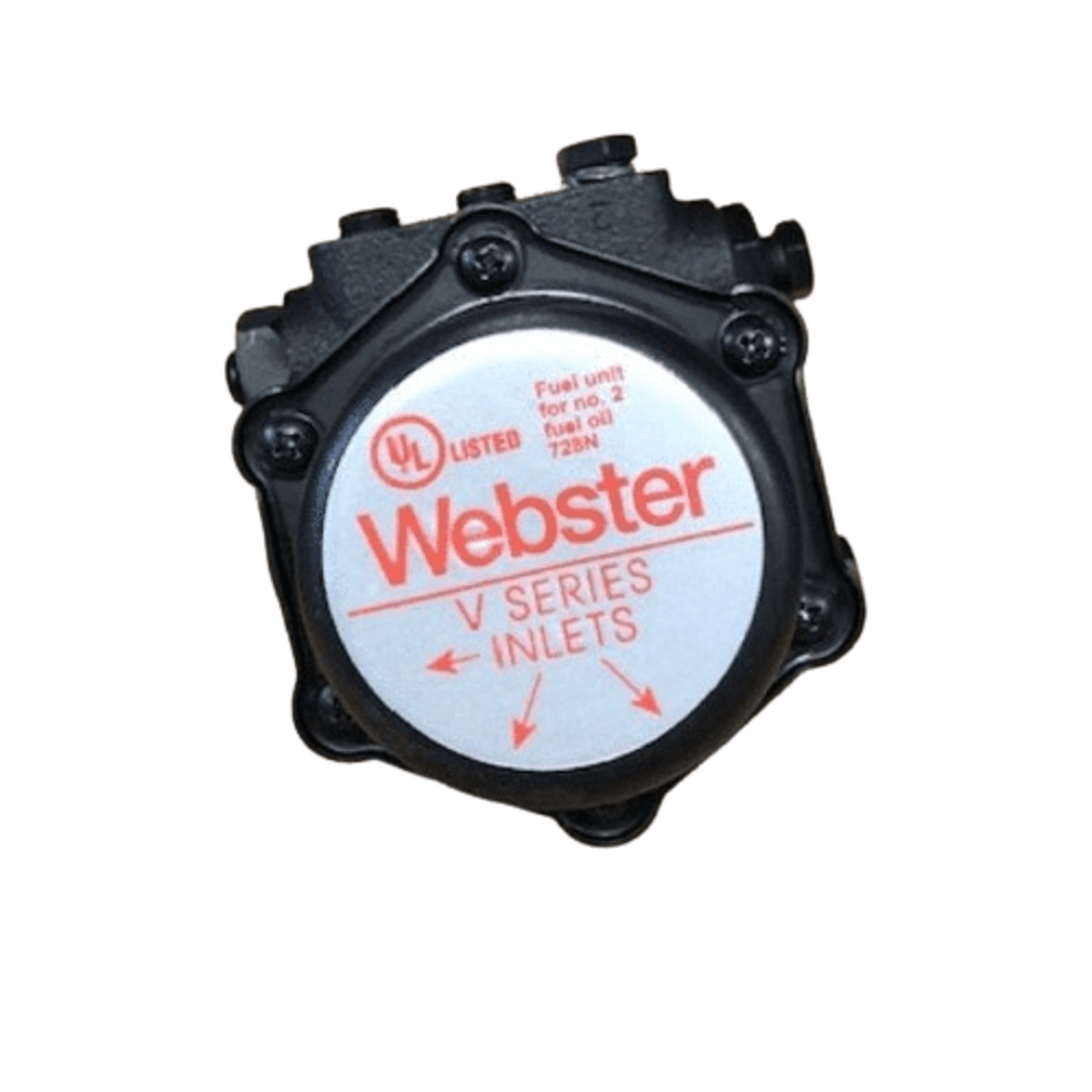

Webster - Two Stage Pump - 2V026C-5DO20

Webster 2V026C-5DO20 two stage V Series high delivery fuel pump.

The V Series is designed to meet the high delivery requirements of commercial, industrial and institutional systems with a minimum of mechanical and hydraulic noise.

Features

• Field adjustable integral regulating valve
• No internal filter – external line filter recommended
• Hub or two-bolt flange mounting
• Double lip shaft seal
• Inlet gear one size larger than pressure gear
• Seal pressed in body

Product Details

• Model: 2V026C-5DO20
• Brand: Webster
• Series: V Series
• Type: Two Stage Fuel Pump
• Rated Pressure: 300 PSI
• Factory Set Pressure: 150 PSI
• Typical Adjustment Range: 125–330 PSI
• Gear Size: 3/4" nominal thickness
• Max. Recommended Firing Rate (#2 oil): 95 GPH @ 1725 RPM
• Gear Set Capacity: 250 GPH @ 1725 RPM
• Recommended Motor (#2 oil): 1-1/2 HP @ 1725 RPM
• Rotation (viewed from shaft end): Counterclockwise, nozzle port left (C Style)
• Porting: 1/4" NPTF gauge and nozzle ports; 3/8" NPTF return and 2 optional inlets; 1/2" NPTF inlet in cover
• Shaft: 7/16" x 1-7/8" extension
• Max. Inlet Vacuum: 15" Hg
