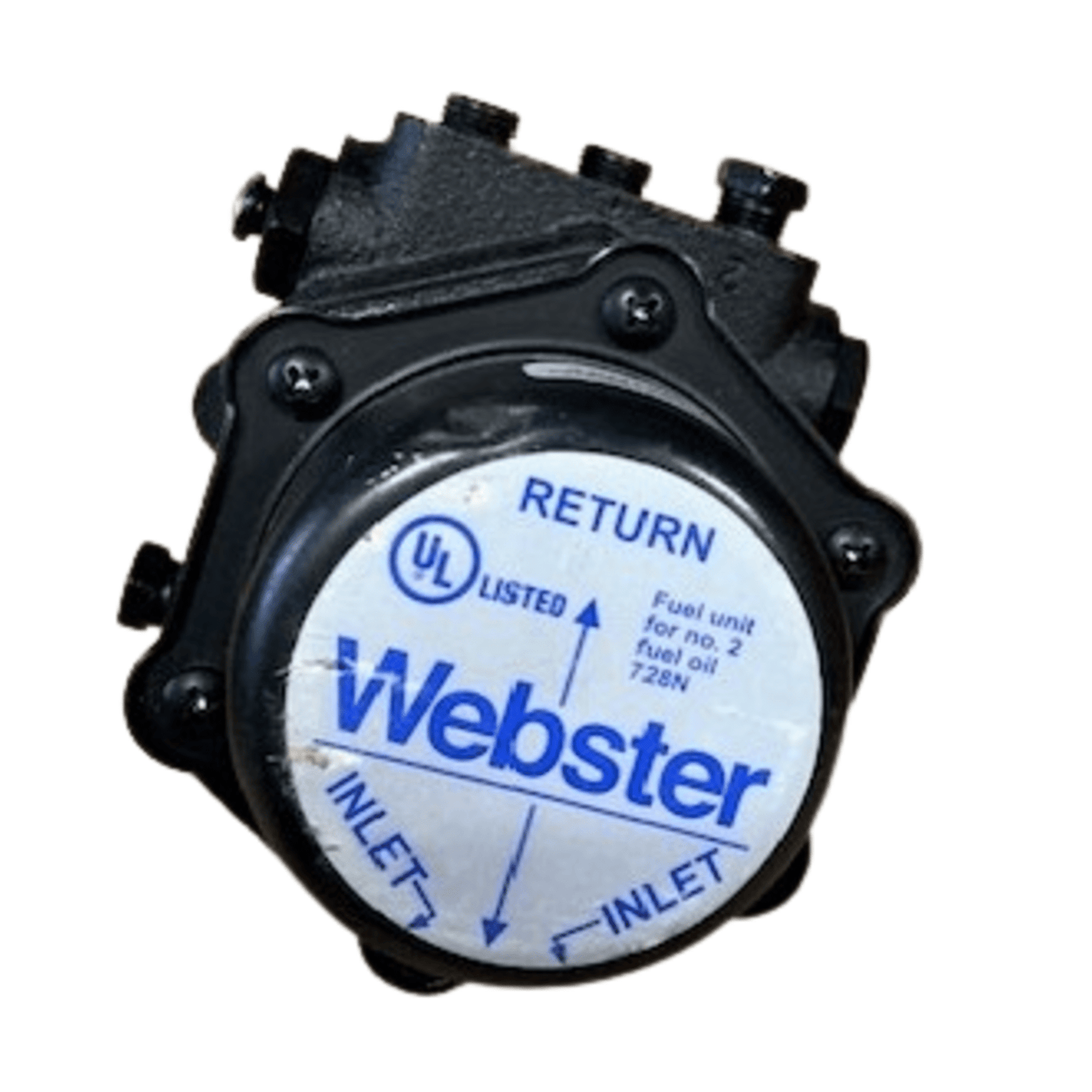

Oil Pump - Two Stage - 2R616C-5C14 - Webster

The Webster 2R616C-5C14 is a two-stage fuel oil pump from the R Series, designed for high-efficiency fuel transfer and pressure regulation in heating systems.

🔧 Technical Specifications

• Model: 2R616C-5C14
• Series: R Series
• Pump Type: Two-stage
• Speed: 1725 RPM
• Rotation / Nozzle Location: Counterclockwise (CCW) from shaft end / Left side
• Capacity: 62 GPH (Gallons Per Hour)
• Pressure Range: Up to 150 PSI
• Connection Size: 1/4" NPTF
• Fuel Compatibility: Suitable for #1 and #2 fuel oil, and compatible with some biodiesel blends

⚙️ Key Features

• Two-Stage Operation: Provides improved priming and higher lift, ideal for systems with long pipe runs or elevation differences.
• Durable Construction: Built for long service life in demanding heating environments.
• Integrated Pressure Regulation: Ensures consistent burner performance.
