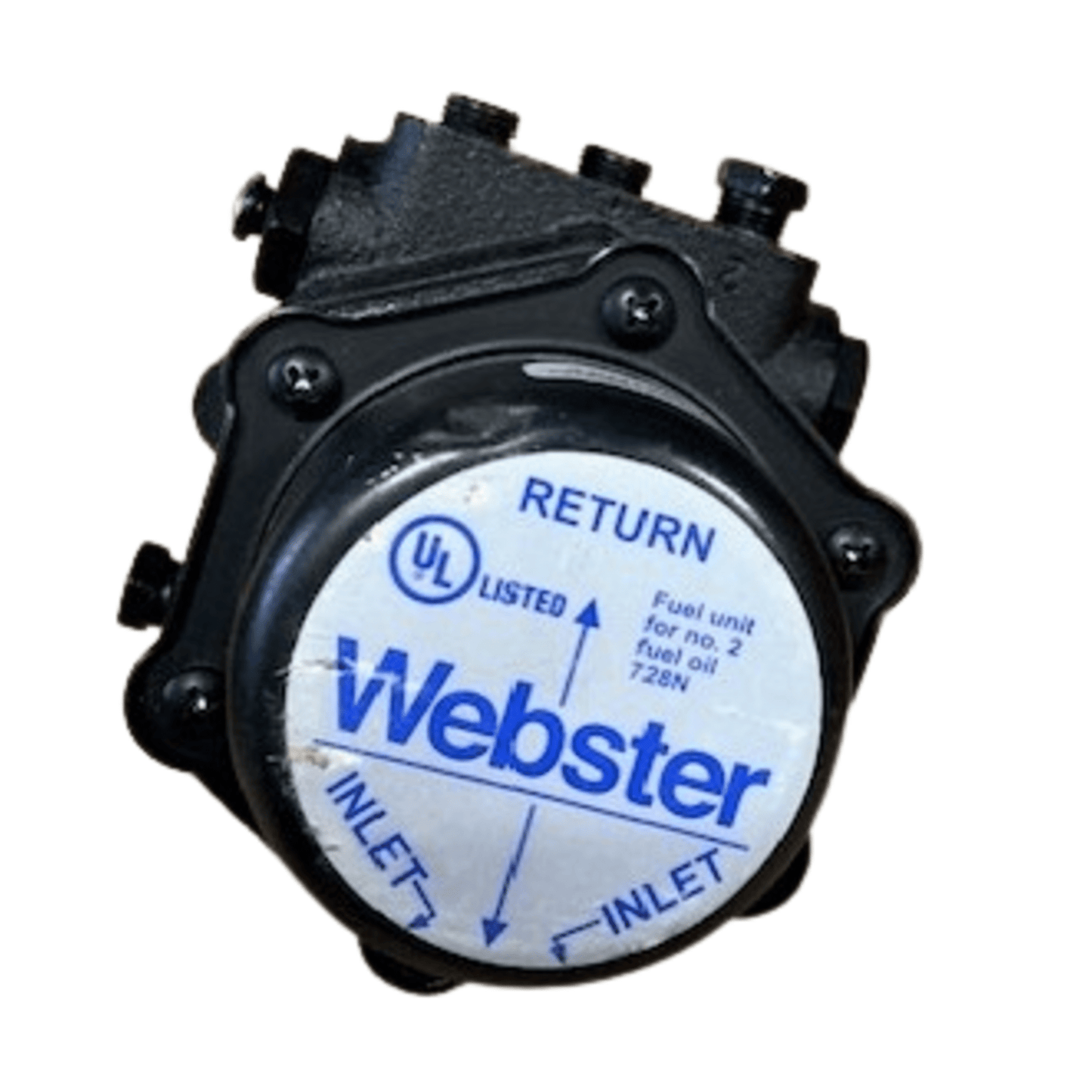

2R223D-5BE13 - Webster - Two Stage Pump

The Webster 2R223D-5BE13 is a two-stage fuel oil pump from the R Series, designed for efficient and reliable fuel transfer in heating systems.

🔧 Technical Specifications

• Model: 2R223D-5BE13
• Series: R Series
• Pump Type: Two-stage
• Speed: 1725 RPM
• Rotation / Nozzle Location: Clockwise (CW) from shaft end / Right side
• Capacity: 23 GPH (Gallons Per Hour)
• Pressure Range: 70–300 PSI
• Fuel Compatibility: Suitable for #1 and #2 fuel oil, and compatible with some biodiesel blends

⚙️ Key Features

• Two-Stage Operation: Enhances priming and lift capabilities, ideal for systems with long pipe runs or elevation differences.
• Durable Construction: Built for long service life in demanding heating environments.
• Integrated Pressure Regulation: Ensures consistent burner performance.
