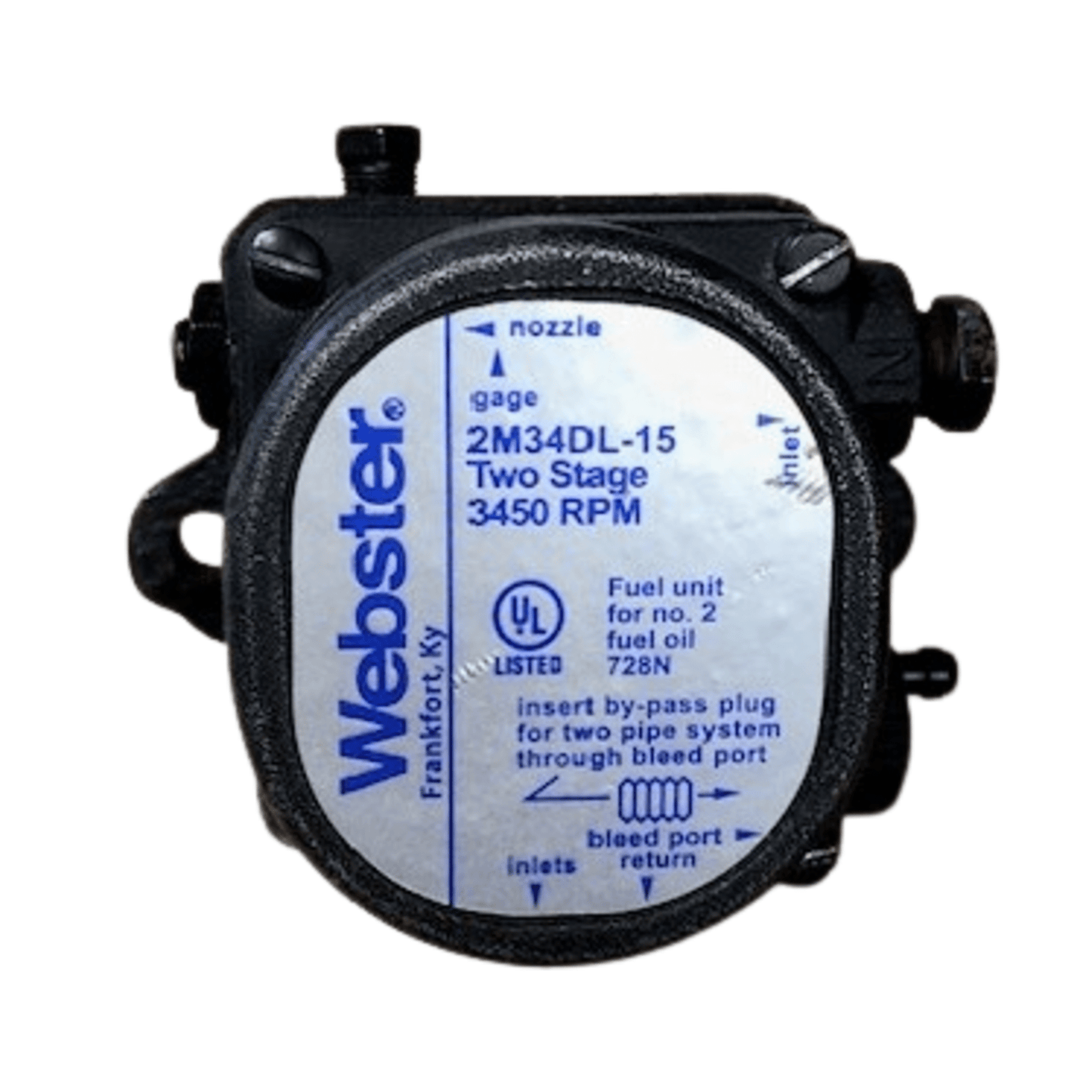

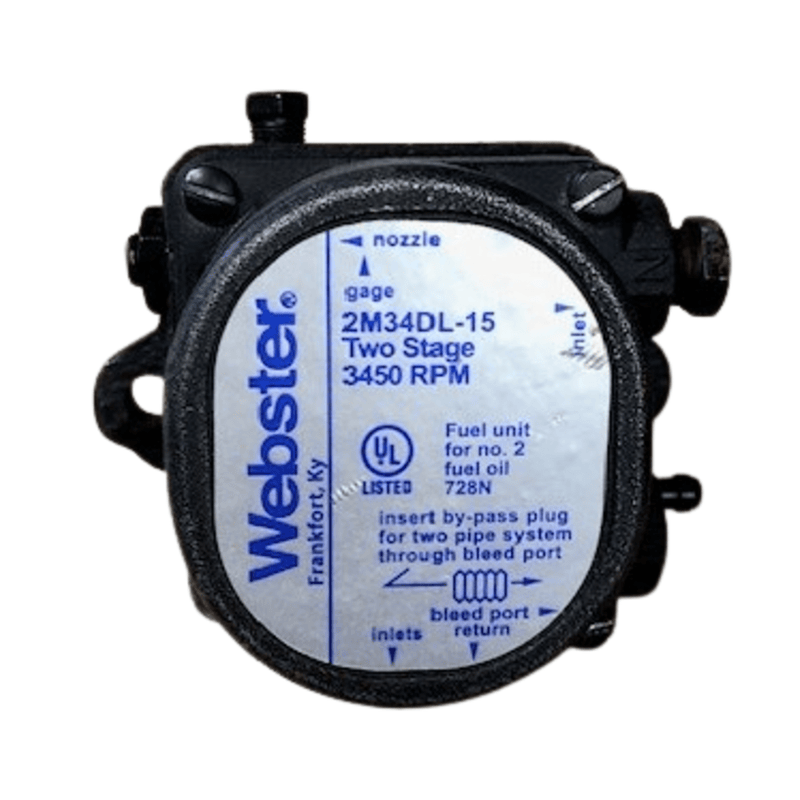

Webster - Two Stage Pump - 2M34DL-15

Webster 2M34DL-15 two stage M Series fuel unit, 3450 RPM.

Light and extremely compact, Webster M Series fuel units have earned a reputation for reliability and efficiency. Simple flange mounting and side-located nozzle ports make the M Series ideal for fuel unit servicing.

Features

• Webster internal rotary filter – blades rotate at motor speed for constant cleaning action
• Easy-to-bleed valve assembly located on the side
• Keyless "D" drive reduces the effects of low-lubricity fuels
• Built-in pressure regulator, factory set at 100 PSI

Product Details

• Model: 2M34DL-15
• Brand: Webster
• Series: M Series
• Type: Two Stage Fuel Unit
• Speed: 3450 RPM
• Rotation (viewed from shaft end): Clockwise, nozzle port right (D Style)
• Max. Recommended Fire Size: 15 GPH
• Pressure: Factory set 100 PSI
• Fuels: #1, #2 fuel oil or kerosene
• Porting: 1/8" NPTF side nozzle port and top gauge port; 1/4" NPTF 2 inlets and bottom return
• Shaft: 5/16" dia. x 1.65" extension, keyless "D" drive
• Seal: Double lip type, Buna N
• Mounting: Two-bolt flange
• Max. Inlet Vacuum: 15" Hg
• Max. Inlet Pressure: 3 PSIG (NFPA 31)
• Weight: 4 lbs 9 oz (shipped oil-filled)
