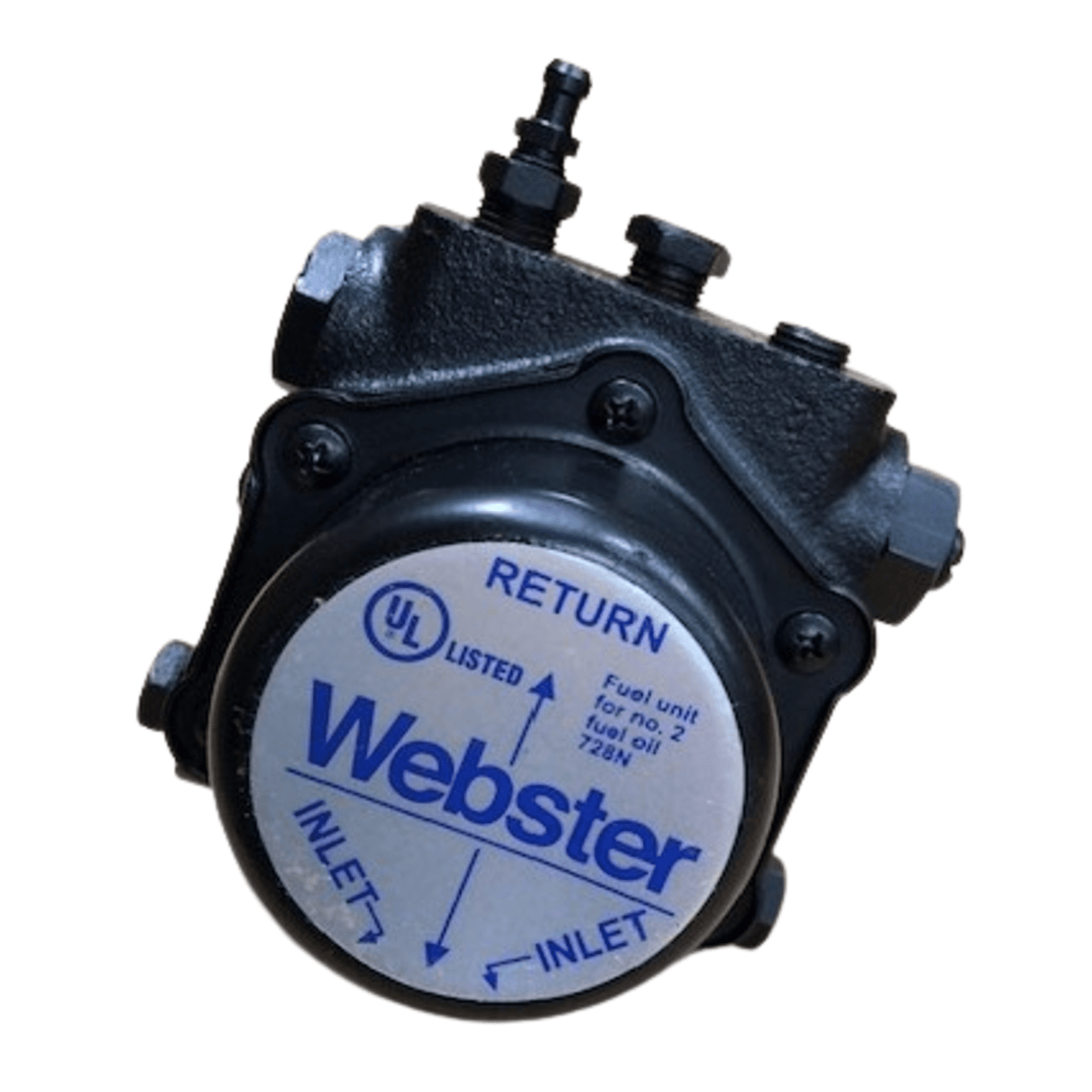

22R211D-5C14 - Webster - Two Stage Pump

The Webster 22R211D-5C14 is a two-stage fuel oil pump from the R Series, designed for high-efficiency fuel transfer in heating systems. Here's a detailed breakdown of its specifications:

🔧 Technical Specifications

• Model: 22R211D-5C14
• Series: R Series
• Pump Type: Two-stage
• Speed: 3450 RPM
• Rotation / Nozzle Location: Clockwise (CW) from shaft end / Right side
• Capacity: 26–27 GPH (Gallons Per Hour)
• Pressure: 100–150 PSI
• Power Rating: Approx. 220 Watts
• Connection Size: 1/4" NPTF
• Configuration: D-style body
• Weight: Approx. 8 lbs

⚙️ Features

• Rotary Filter: Reduces maintenance by filtering fuel before it enters the pumping chamber.
• Double Lip Seals: Provide superior leak protection and lower friction than traditional face seals.
• High-Speed Operation: Suitable for demanding burner systems requiring consistent high-pressure fuel delivery
