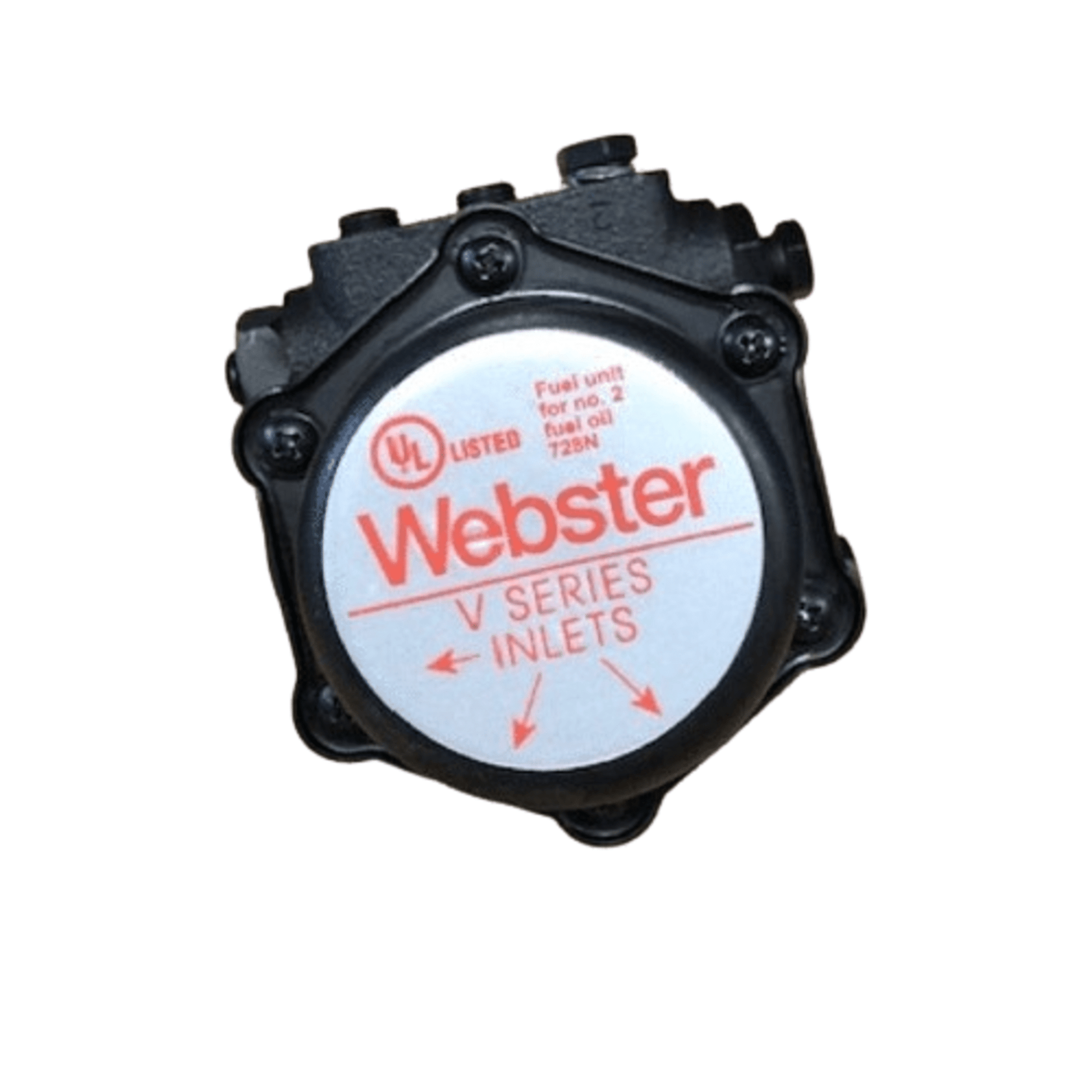

Webster - Single Stage Pump - V086C-4DO20

Webster V086C-4DO20 single stage V Series high delivery transfer pump.

The V Series is designed to meet the high delivery requirements of commercial, industrial and institutional systems with a minimum of mechanical and hydraulic noise.

Features

• Field adjustable integral regulating valve
• No internal filter – external line filter recommended
• Hub or two-bolt flange mounting
• Double lip shaft seal
• Seal pressed in body

Product Details

• Model: V086C-4DO20
• Brand: Webster
• Series: V Series
• Type: Single Stage Transfer Pump
• Rated Pressure: 80 PSI
• Factory Set Pressure: 20 PSI
• Typical Adjustment Range: 15–85 PSI
• Gear Size: 3/4" nominal thickness
• Max. Recommended Firing Rate (#2 oil): 135 GPH @ 1725 RPM
• Gear Set Capacity: 250 GPH @ 1725 RPM
• Recommended Motor (#2 oil): 1/3 HP @ 1725 RPM
• Rotation (viewed from shaft end): Counterclockwise, nozzle port left (C Style)
• Porting: 1/4" NPTF gauge and nozzle ports; 3/8" NPTF return and 2 optional inlets; 1/2" NPTF inlet in cover
• Shaft: 7/16" x 1-7/8" extension
• Max. Inlet Vacuum: 10" Hg
