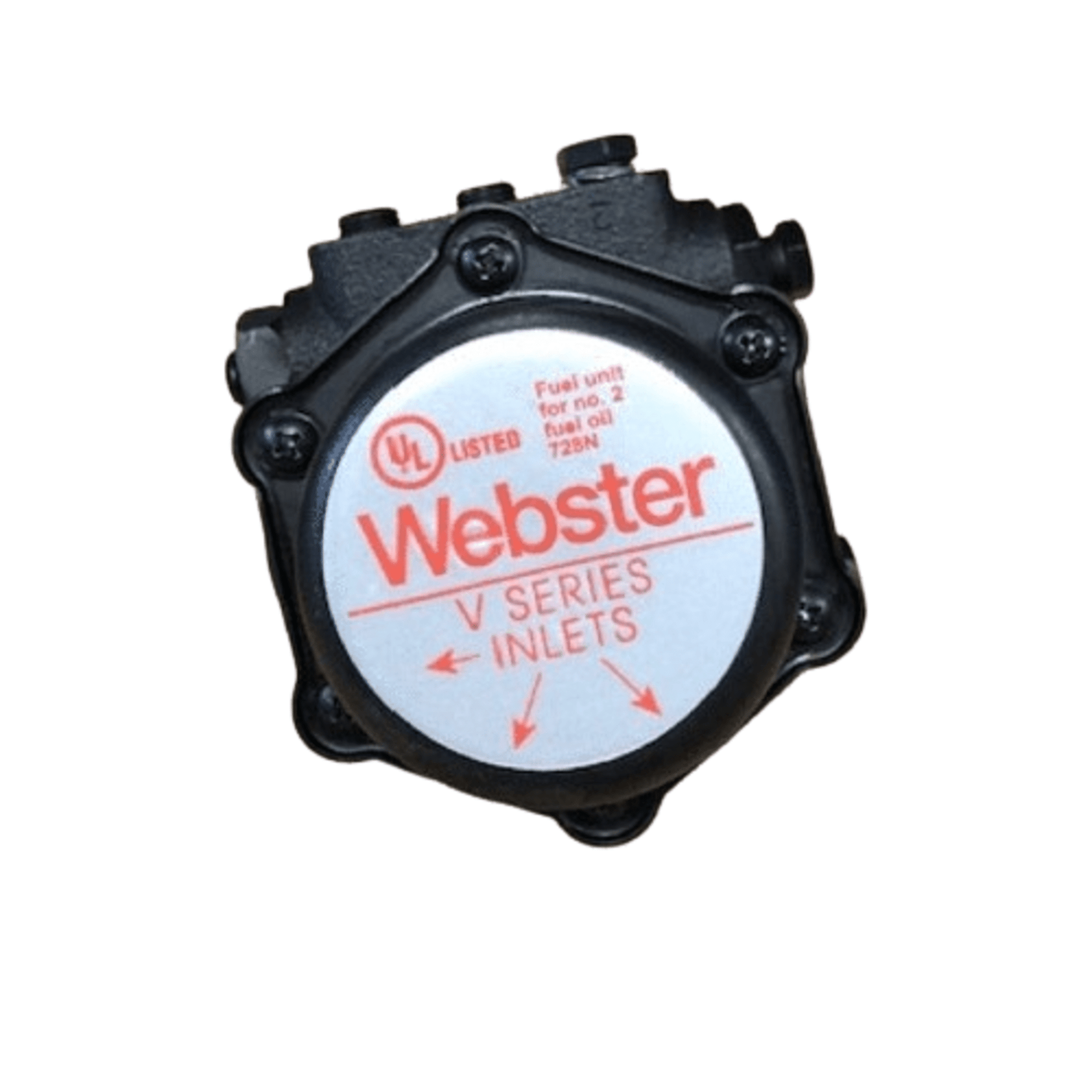

V023C-4DO20 - Webster - V023C-4DO20, Single Stage Pump

The Webster V023C-4DO20 is a single-stage fuel oil pump from the V Series, designed for high-efficiency fuel delivery in heating systems. Here's a detailed breakdown of its specifications:

🔧 Technical Specifications

• Model: V023C-4DO20
• Series: V Series
• Pump Type: Single-stage
• Speed: 1725 / 3450 RPM
• Rotation / Nozzle Location: Counterclockwise (CCW) from shaft end / Left side
• Capacity:
  • 40 GPH at 1725 RPM
  • 105 GPH at 3450 RPM
• Rated Pressure: 80 PSI
• Maximum Pressure: 185 PSI
• Fuel Compatibility: #2 fuel oil and similar heating fuels
• Internal Regulation: Yes

⚙️ Features

• High Flow Rate: Suitable for medium to large residential or commercial oil burners.
• Durable Construction: Built for long service life with minimal maintenance.
• Compact Design: Facilitates easy integration into burner assemblies.

This pump is ideal for systems requiring moderate to high-volume, single-stage fuel delivery with consistent pressure control
