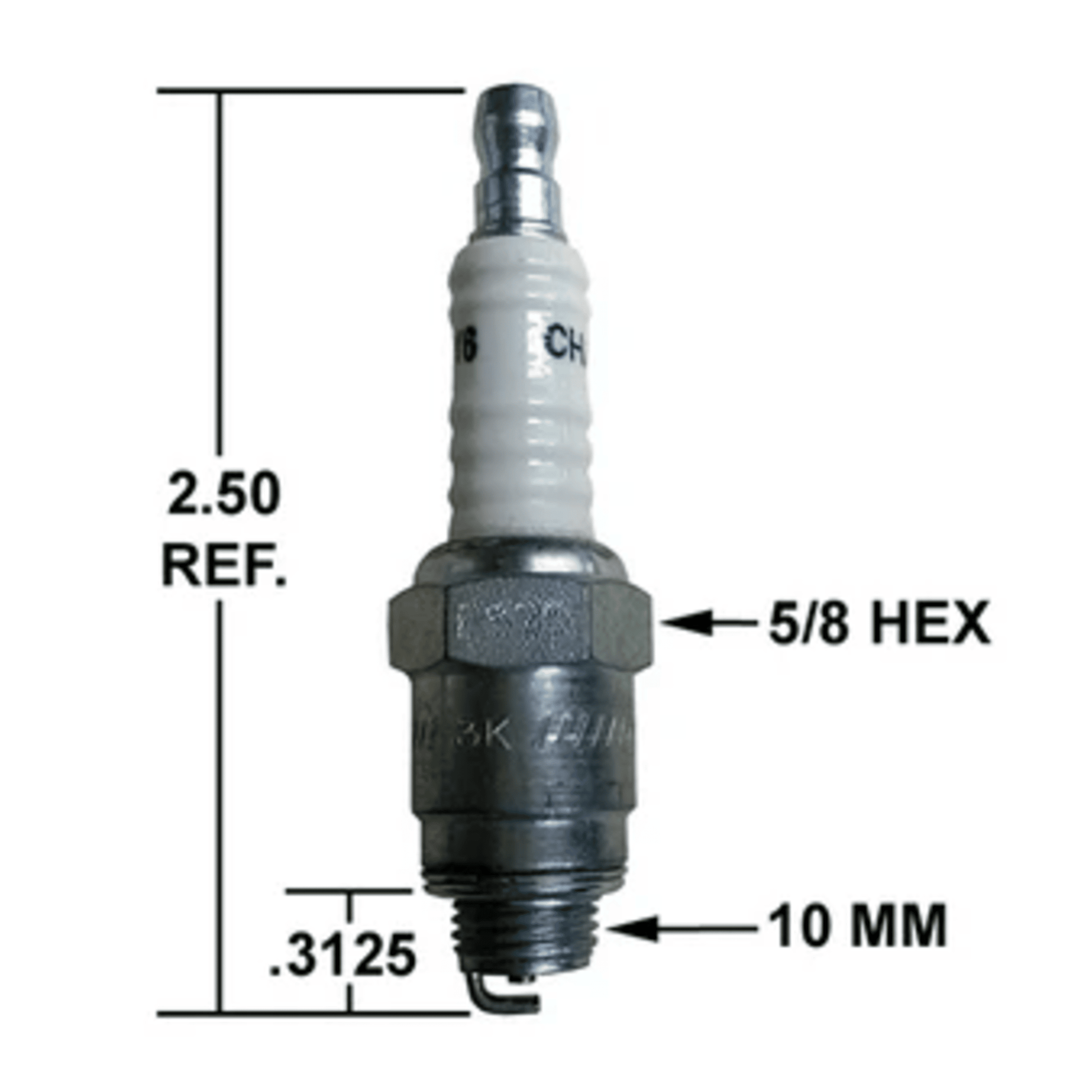

UY6 - Crown - CHAMPION SPARK PLUG (1EA)

The Champion UY6 Spark Plug (Crown part number UY6, stock code 842) is a Copper Plus spark plug designed for small engines and garden equipment. Here's a detailed breakdown of its specifications:

🔧 Technical Specifications:

• Thread Size: M10 x 1.0
• Thread Reach: 6.4 mm (0.25 inch)
• Hex Size: 16 mm (5/8 inch)
• Seat Type: Gasket
• Heat Range: 6
• Gap: 0.035 inch (0.9 mm)
• Electrode Material: Nickel with copper core
• Number of Ground Electrodes: 1
• Terminal Type: M4/SAE
• Tightening Torque: 10–15 Nm
• Spark Position: 1.5 mm
• Design: Standard copper core for improved conductivity and heat control

🌟 Features:

• Copper Core: Enhances heat dissipation and performance
• Durability: Resists fouling and corrosion
• Built to ISO and SAE Standards
