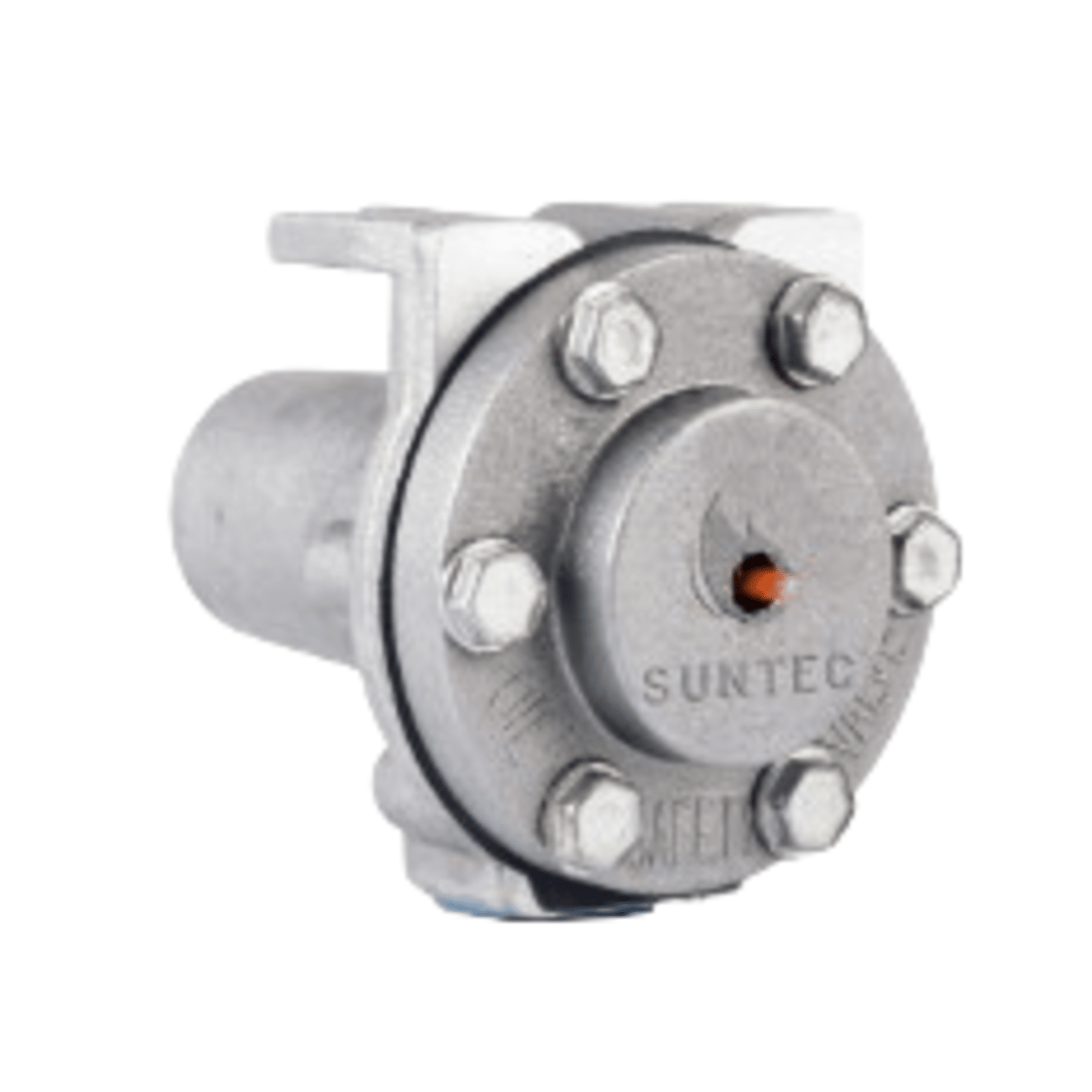

SUNTEC PRV38PUCSPE, OIL SAFETY VALVE W/ FILTER PORT

The SUNTEC PRV38PUCSPE is an oil safety valve with a filter port designed for use in fuel oil systems. Here are the key technical details:

• Type: Oil Safety Valve with Filter Port
• Inlet/Outlet Size: 3/8" NPTF (Female Threaded)
• Pressure Rating: Up to 40 PSI
• Flow Rate: Up to 55 GPH (gallons per hour)
• Temperature Range: 0°F to 160°F
• Fuel Compatibility: Suitable for kerosene, No. 1, and No. 2 fuel oil
• Operation: Requires vacuum from the fuel unit to open and allow fuel flow
• Special Features:
  • Provides protection in case of fuel line leaks
  • Can be manually bled or primed during startup
  • Prevents siphoning in the event of line failure
  • Includes a port for attaching an oil filter
