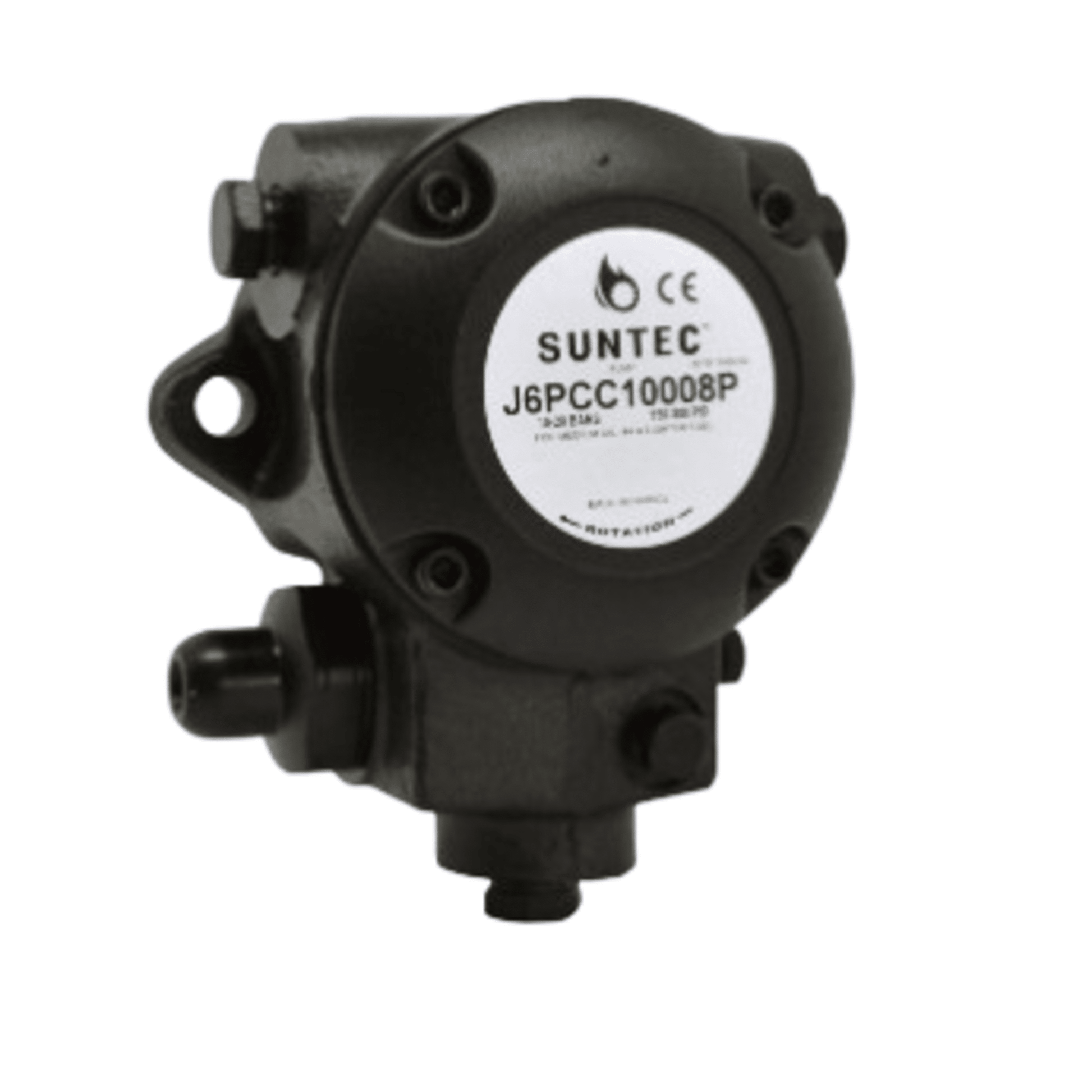

SUNTEC J6PCC10008MUC05E, J6 1000, GEAR PUMP

The SUNTEC J6PCC10008MUC05E, also known as the J6 1000, is a gear pump designed for medium capacity oil burners. Here are the key technical details:

• Type: Gear Pump
• Flow Rate: Up to 90 GPH (gallons per hour) at 3450 RPM
• Pressure Range: 150-300 PSI
• Fuel Compatibility: Suitable for fuel oil #4 and lighter, including biodiesel blends (B6-B20)
• System Configuration: Can be used in one or two-pipe systems
• Mounting: Flange mounting according to EN 225
• Inlet/Outlet Ports: 1/4" NPTF for inlet and return, 1/8" NPTF for nozzle outlet
• Operating Temperature: 32°F to 194°F
• Suction Height: 6 inches Hg max vacuum for single pipe, 13.5 inches Hg max vacuum for two-pipe systems
• Special Features:
  • Pressure regulating valve with cut-off function
  • Built-in filter for oil purification
  • Automatic bleeding in two-pipe operation
