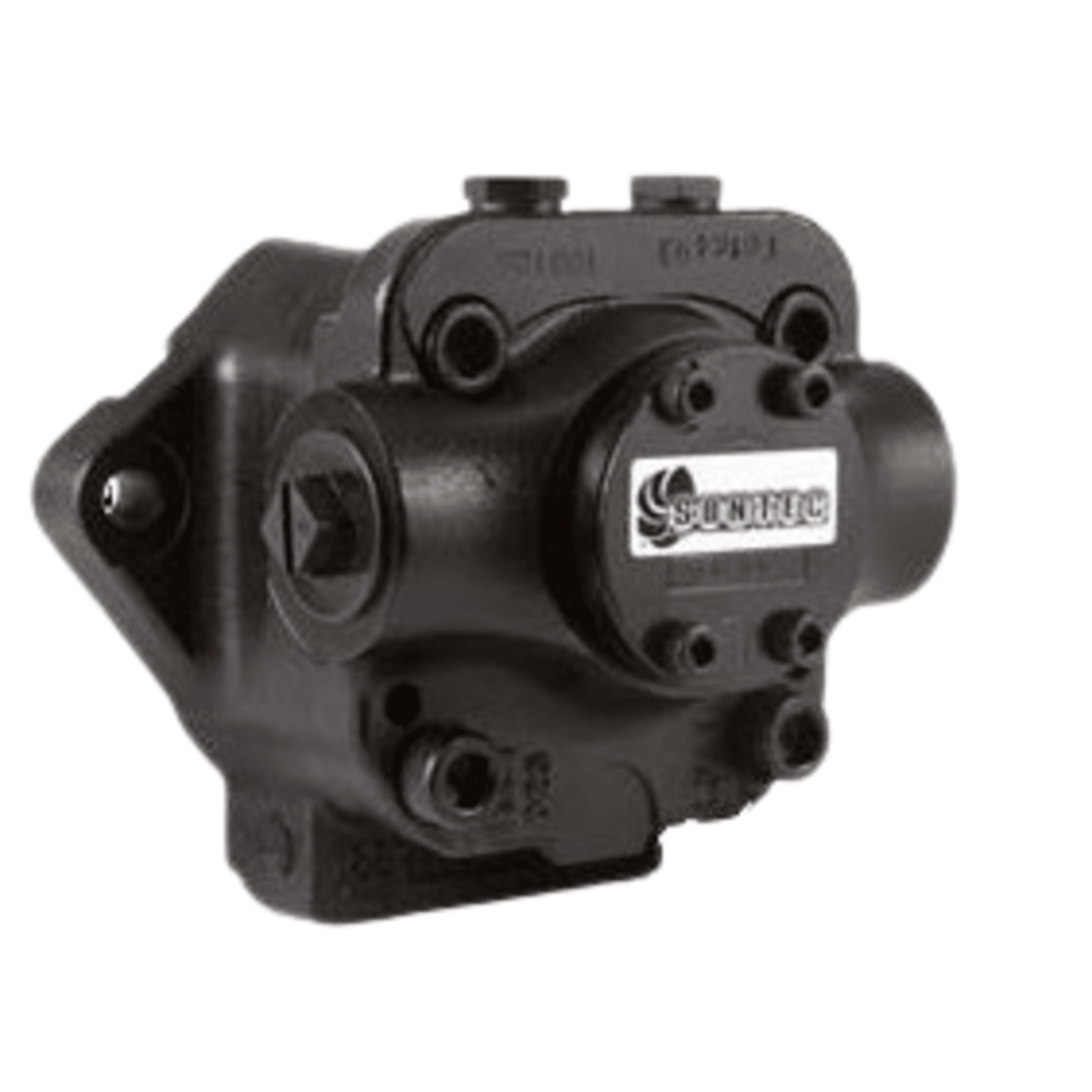

SUNTEC TA3C40107, 180 GPH @ 250 PSI 3450 RPM FUEL PUMP

SUNTEC TA3C40107,

The SUNTEC TA3C40107 is a high-capacity fuel pump designed for industrial heating applications. Here are the key technical details:

• Type: Fuel Pump
• Flow Rate: 180 GPH (gallons per hour)
• Pressure Rating: 250 PSI
• Speed: 3450 RPM
• Fuel Compatibility: Suitable for fuel oil #2 to #6 and biodiesel blends (B6-B20)
• System Configuration: Can be used in one or two-pipe systems
• Preheater Location: Includes a cavity for an electric preheater to facilitate cold starts
• Inlet/Outlet Ports: 1/2" NPTF for inlet and return, 1/4" NPTF for nozzle outlet and pressure gauge port
• Operating Temperature: 32°F to 302°F
• Mounting: Flange mounting
• Weight: Approximately 12.6 lbs
