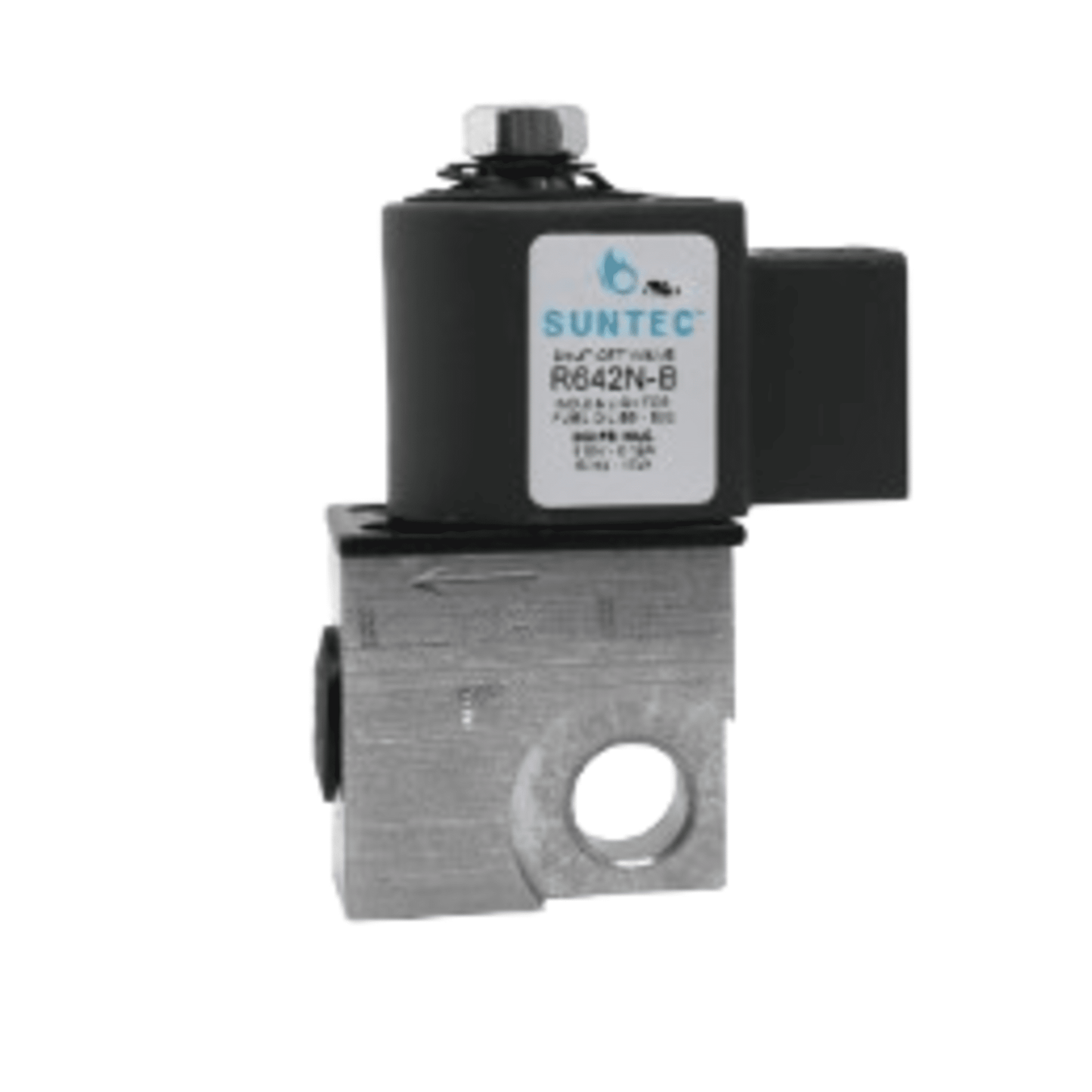

SUNTEC C642NR B20, 115V AC, SHUT-OFF VALVE

The SUNTEC C642NR B20 is a 115V AC shut-off valve designed for use with fuel oil systems. Here are some key technical details:

• Application: Suitable for use with fuel oil #1, #2, and kerosene.
• Voltage: 115V AC.
• Mounting: Can be directly mounted on A & B pump types or fitted between the pump and the nozzle.
• Pressure Rating: Rated up to 300 psi (except for delay models which are rated to 150 psi).
• Fuel Compatibility: Compatible with B6 to B20 biodiesel blends.
• Temperature Range: Maximum fluid temperature of 75°F (24°C).
• Flow Rate: Suitable for systems with a maximum nozzle line flow of 16 GPH.
• Delay Function: Available in non-delay or delayed opening models.
• Certification: UL approved.
