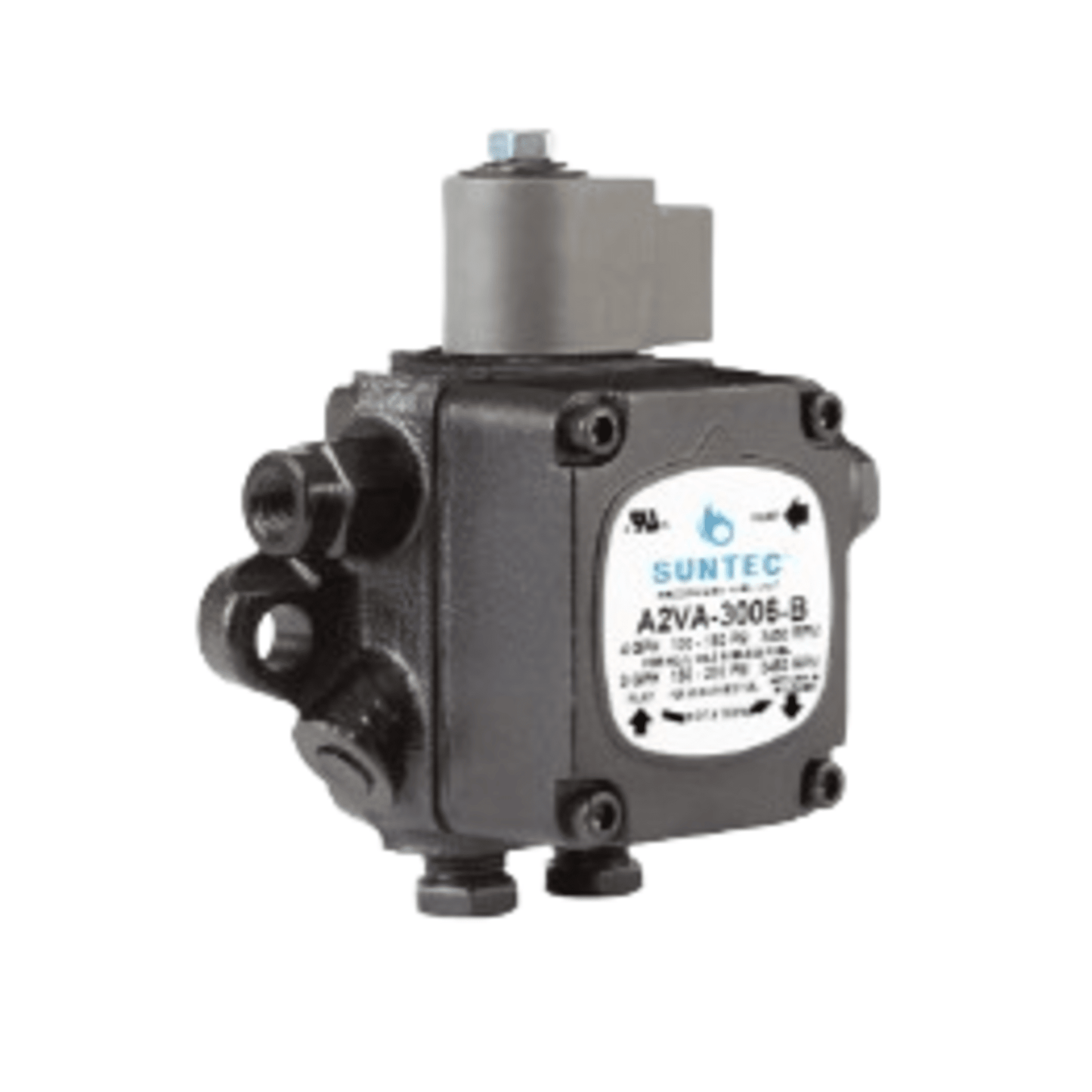

SUNTEC A2VA-3006B B100, FUEL UNIT

The SUNTEC A2VA-3006B B100 is a single-stage fuel unit designed for use with biodiesel blends up to 100% (B100). Here are its key technical specifications:

• RPM: Operates at 3450 RPM
• Pressure: Factory-set at 100 PSI, with an adjustable range of 100-200 PSI
• Fuel Compatibility: Suitable for No. 2 fuel oil and biodiesel blends up to 100% (B100)
• Installation: Can be mounted in any position. Supports single-pipe installations up to 6" Hg vacuum and two-pipe installations up to 12" Hg vacuum
• Inlet/Return Pressure: Maximum of 10 PSI for lift or gravity feed applications
• Port Sizes: Inlet port is 1/4-18 NPTF, and the nozzle port is 1/8-27 NPTF
• Flow Rate: Delivers 4 GPH at 100 PSI and 3 GPH at 200 PSI
• Special Features: Includes Viton O-rings and lip seals, and special materials for the piston and diaphragm valve to ensure compatibility with biodiesel
