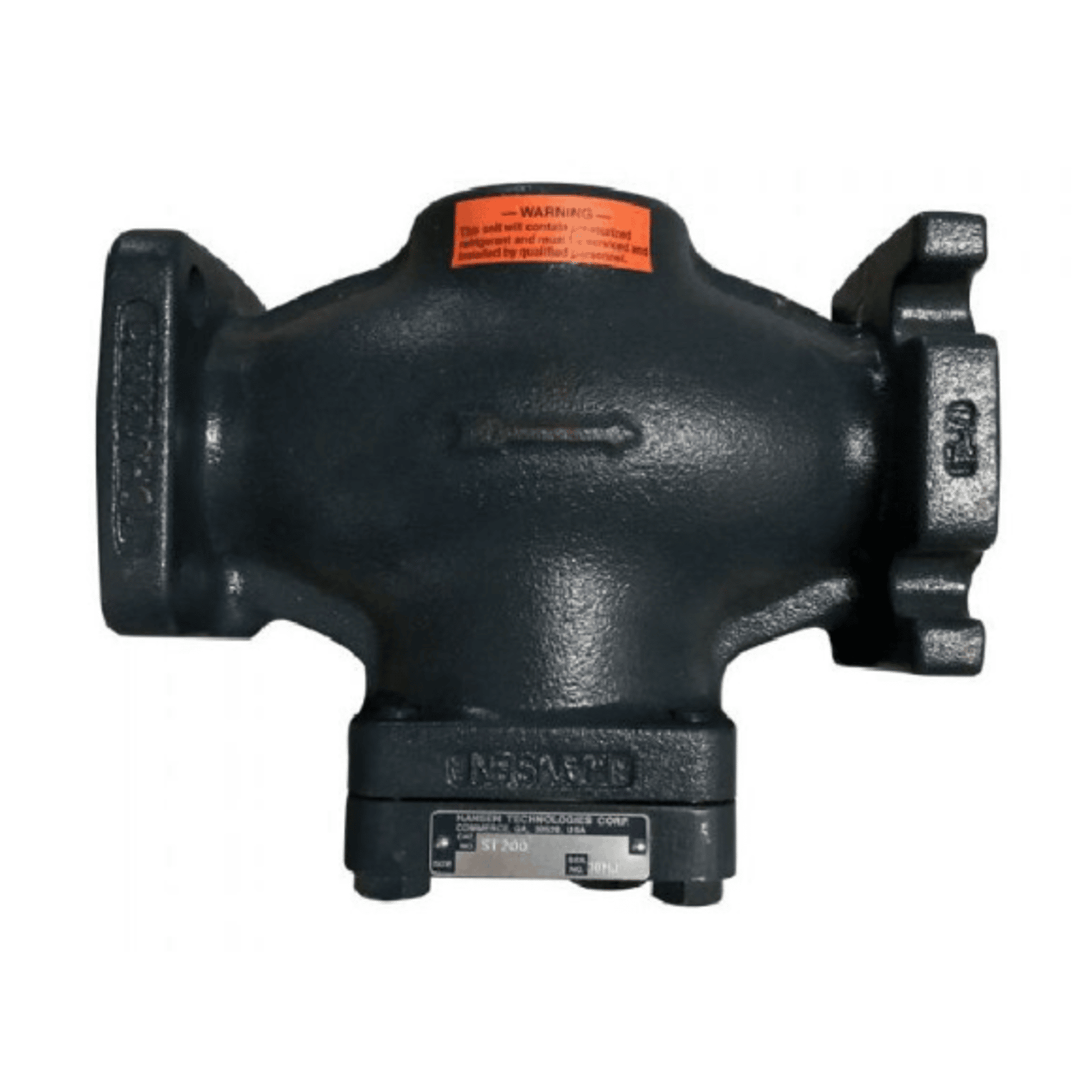

ST200 - Hansen - Refrigerant Strainer Close Coupled, 60 Mesh

The Hansen ST200 is a Close-Coupled Refrigerant Strainer designed for industrial refrigeration systems. Here's a detailed breakdown of its specifications and features:

Hansen ST200 - Key Specifications

• Model: ST200
• Type: Refrigerant Strainer (Close-Coupled)
• Port Size: 2"
• Mesh Size: 60 mesh (233 micron rating)
• Screen Material: Stainless steel
• Body Material: Ductile iron (ASTM A536)
• Bottom Cover: Steel (ASTM A36)
• Drain Plug: 1/2" NPT
• Safe Working Pressure: 400 psig (27 bar)
• Operating Temperature: –60°F to +240°F (–50°C to +115°C)
• Weight: Approx. 40 lbs
• Dimensions:
  • Length: 9.88" (251 mm)
  • Width: 5.34" (136 mm)
  • Height: 4.25" (108 mm)
  • Screen Area: 84.5 in² (545 cm²)

Features

• Designed to remove dirt, weld slag, and other foreign materials from refrigeration systems
• Helps protect valves and sensitive components
• Can be close-coupled to solenoid valves or installed as a standalone unit
• Easy in-line serviceability
• Generous flow area for minimal pressure drop
• Drain plug for convenient maintenance

Applications

• Industrial ammonia refrigeration systems
• Cold storage facilities
• Food processing plants
• Ice rinks and other large-scale cooling systems
