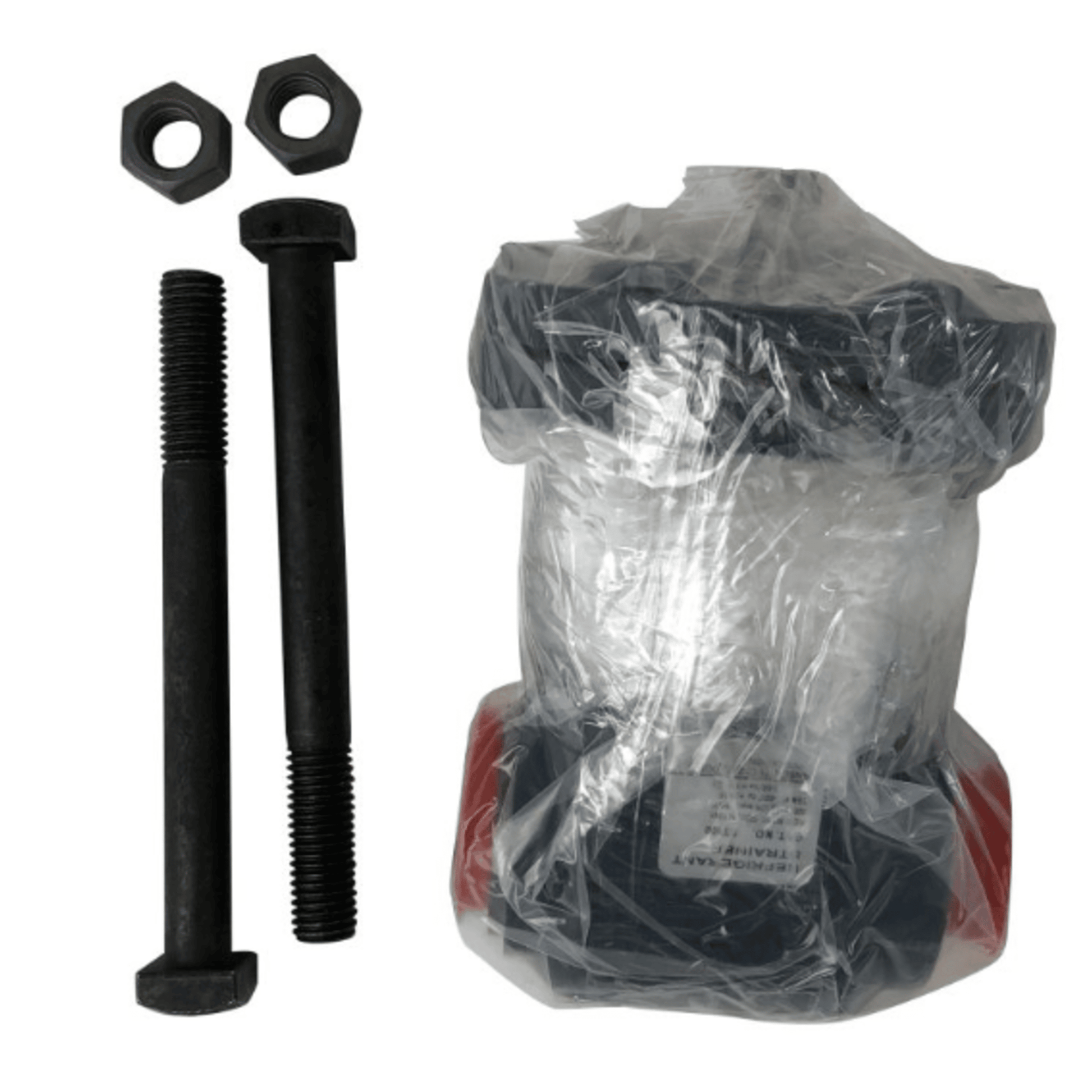

ST100 - Hansen - Refrigerant Strainer Close-Coupled 60 Mesh

The Hansen ST100 is a Close-Coupled Refrigerant Strainer designed to protect refrigeration system components by filtering out foreign materials. Here's a detailed overview:

Hansen ST100 - Key Specifications

• Type: Refrigerant Strainer, Close-Coupled
• Mesh Size: 60 mesh (233 micron rating)
• Port Size: 3/4"
• Body Material: Ductile iron (ASTM A536)
• Bottom Cover: Ductile iron (ASTM A536)
• Drain Plug: 1/4" NPT
• Safe Working Pressure: 400 psig (27 bar)
• Operating Temperature: –60°F to +240°F (–50°C to +115°C)
• Screen Material: Stainless steel
• Gaskets: Non-asbestos, graphite composite
• Weight: Approx. 11 lbs

Features

• Designed for ammonia and other industrial refrigerants
• Helps prevent valve and component damage
• Can be installed inline or as a separate unit
• Drain plug for safe refrigerant removal
• Serviceable screen for cleaning or replacement
