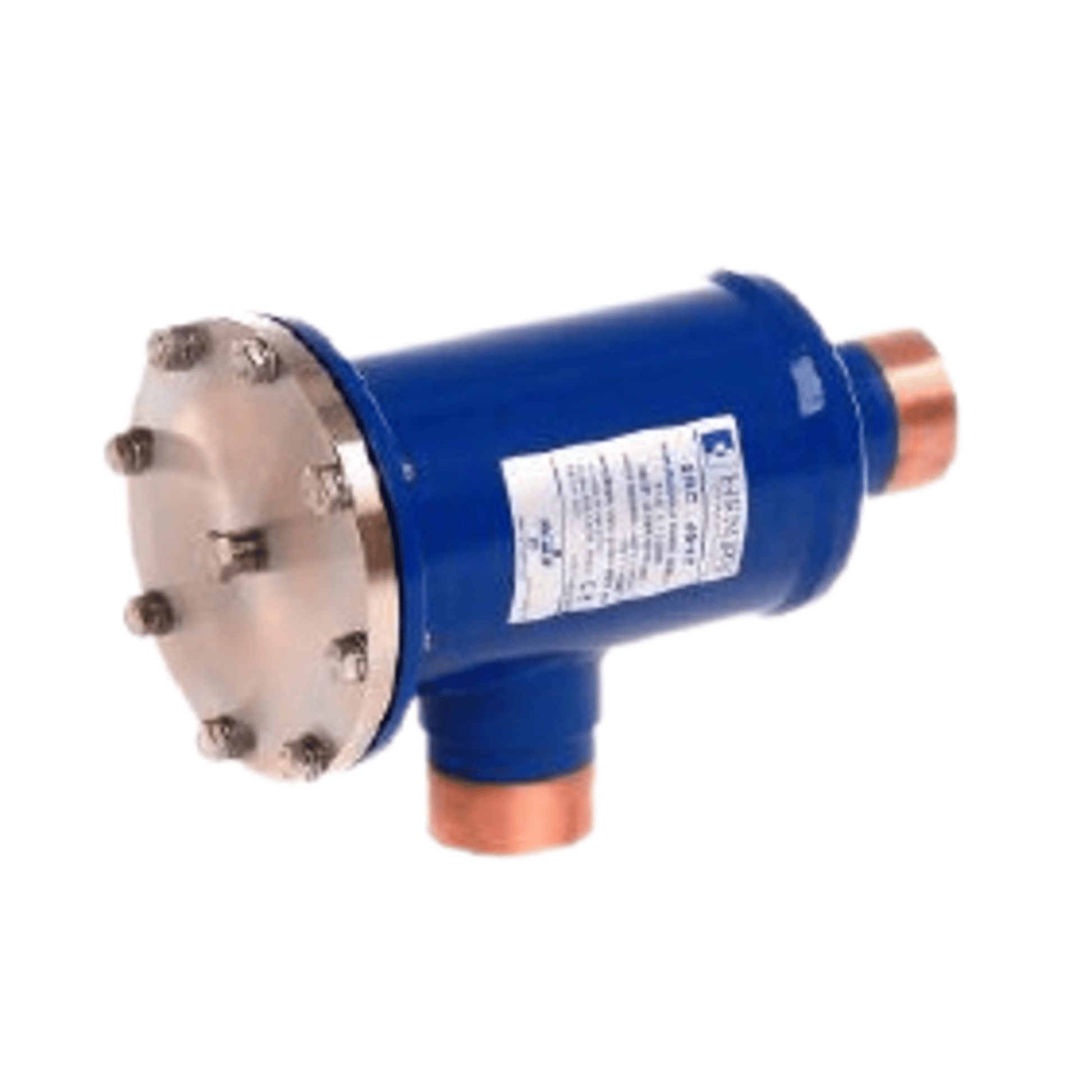

SRC-9613 - Henry - 4.5in - 2 cores - 1-5/8 ODS - REPLACEABLE CORE DRIER SHELLS

The Henry SRC-9613 is a replaceable core drier shell designed for use in refrigeration and air-conditioning systems. Here are the detailed specifications:

🔧 Product Specifications

• Model: SRC-9613
• Shell Diameter: 4.5 inches
• Core Capacity: 2 replaceable cores
• Connection Type: 1-5/8" ODS (Outside Diameter Solder)
• Refrigerant Compatibility: HCFC, HFC, and CO₂ refrigerants
• Max Working Pressure: 609 PSI (42 bar)
• Operating Temperature Range: -40°F to +158°F (-40°C to +70°C)

🛠️ Key Features

• Replaceable Core Design: Allows for easy maintenance and flexibility in core selection
• High Filtering Capability: Removes moisture, acid, and solid contaminants
• Construction:
  • Shell: Carbon steel with corrosion-resistant powder coating
  • Cover Plate: Nickel-plated steel
  • Connections: Solid copper, full-flow
  • Screen: Stainless steel mesh
• Pressure Tapping: 1/4" NPT
• Tested: 1000-hour salt spray tested to ASTM B117 standards
