Henry Technologies

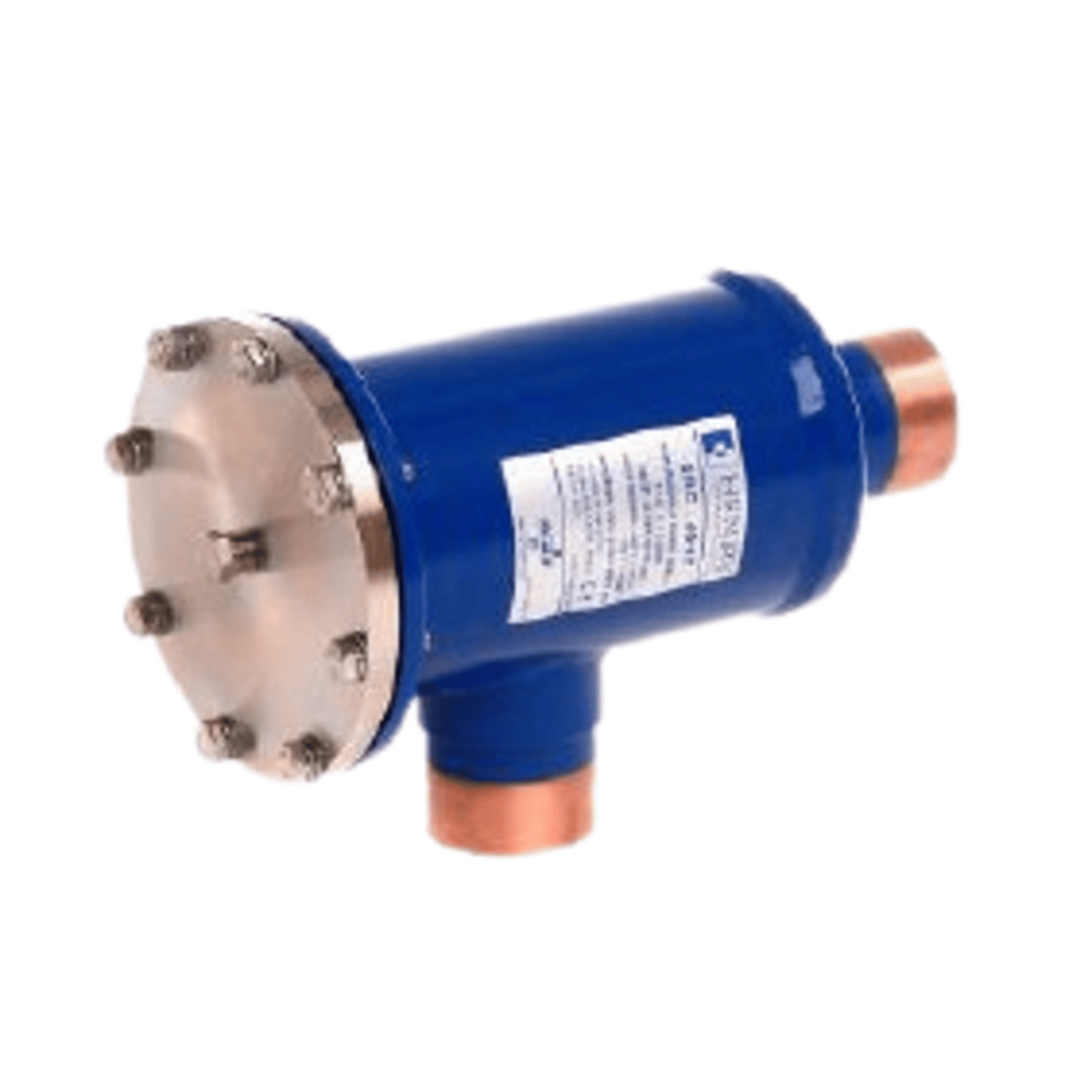

SRC-1449 - Henry - 4.5in - 3 cores - 1-1/8 ODS - REPLACEABLE CORE DRIER SHELLS

SRC-1449 - Henry - 4.5in - 3 cores - 1-1/8 ODS - REPLACEABLE CORE DRIER SHELLS

SKU: HEN-SRC-1449

$502.57 CAD
$502.57 CAD $502.57 CAD
Sale Sold out
Shipping calculated at checkout.

The Henry SRC-1449 is a replaceable core drier shell designed for use in refrigeration and air-conditioning systems. Here are the detailed specifications:

🔧 Product Specifications

  • Model: SRC-1449
  • Shell Diameter: 4.5 inches
  • Core Capacity: 3 replaceable cores
  • Connection Type: 1-1/8" ODS (Outside Diameter Solder)
  • Maximum Working Pressure: 609 PSI (42 bar)
  • Operating Temperature Range: -40°F to +158°F (-40°C to +70°C)
  • Weight: Approximately 16.9 lbs

🛠️ Key Features

  • Replaceable Core Design: Allows for easy maintenance and flexibility in core selection
  • High Filtering Capability: Removes moisture, acid, and solid contaminants
  • Construction:
    • Shell: Powder-coated carbon steel for corrosion resistance
    • Cover Plate: Nickel-plated steel
    • Connections: Solid copper, full-flow
    • Screen: Stainless steel mesh
  • Pressure Tapping: 1/4" NPT
  • Refrigerant Compatibility: HCFC, HFC, and CO₂ refrigerants
  • Applications: Suitable for both liquid and suction lines
