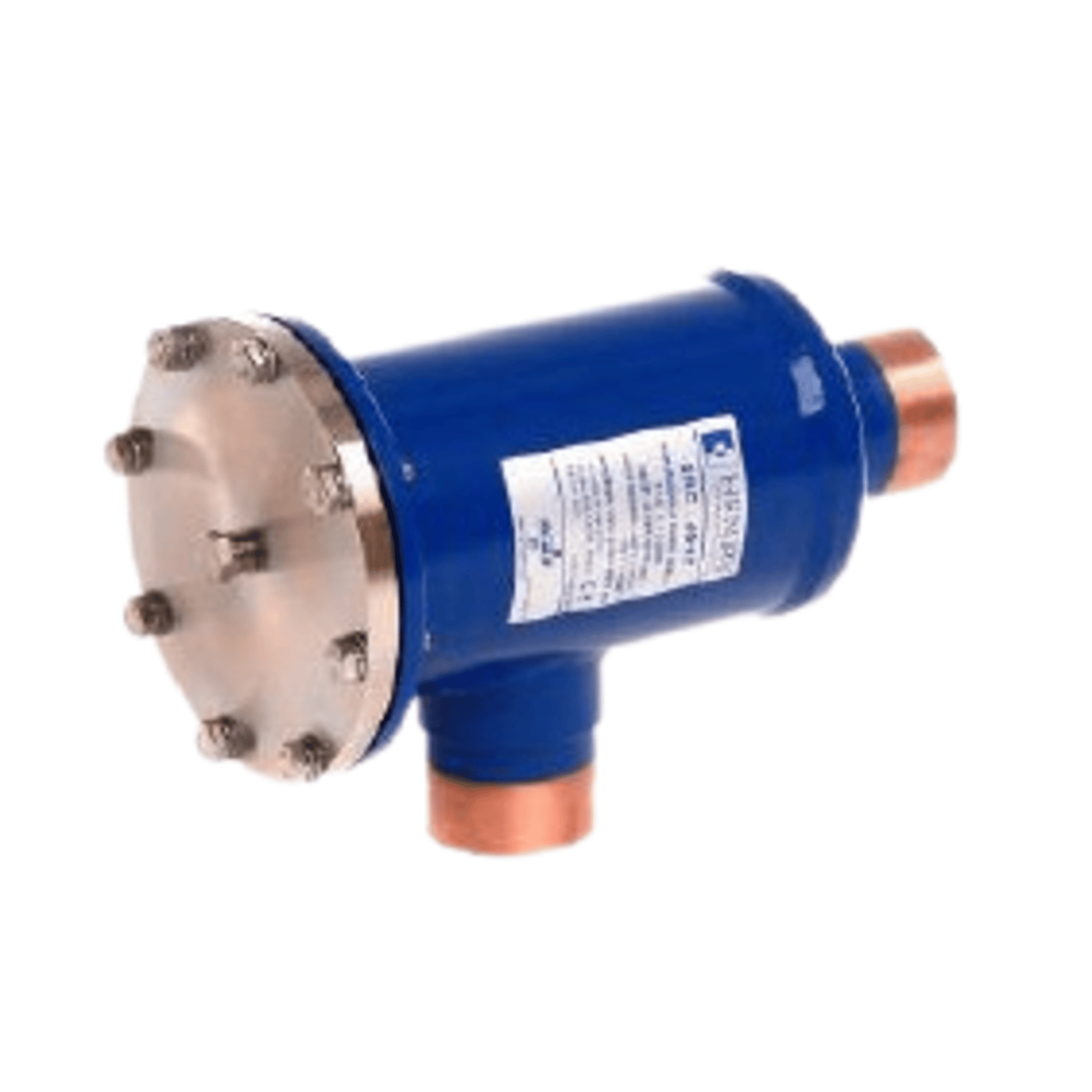

SRC-14421 - Henry - 4.5in - 3 cores - 2-5/8 ODS - REPLACEABLE CORE DRIER SHELLS

The Henry SRC-14421 is a replaceable core drier shell designed for medium-to-high capacity refrigeration and air-conditioning systems. Here are the detailed specifications:

🔧 Product Specifications

• Model: SRC-14421
• Shell Diameter: 4.5 inches
• Core Capacity: 3 replaceable cores
• Connection Type: 2-5/8" ODS (Outside Diameter Solder)
• Surface Area: 2049 cm²
• Internal Volume: 2148 cm³
• Weight: Approximately 8.02 kg (17.7 lbs)
• CE Category: II

🛠️ Key Features

• Replaceable Core Design: Enables easy maintenance and flexibility in core selection
• High Filtering Capability: Effectively removes moisture, acid, and solid contaminants
• Construction:
  • Shell: Powder-coated carbon steel for corrosion resistance
  • Cover Plate: Nickel-plated steel
  • Connections: Solid copper, full-flow
  • Screen: Stainless steel mesh
• Pressure Tapping: 1/4" NPT
• Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
• Maximum Working Pressure: 42 bar (609 PSI)
• Refrigerant Compatibility: HCFC, HFC, CO₂, and A2L refrigerants
