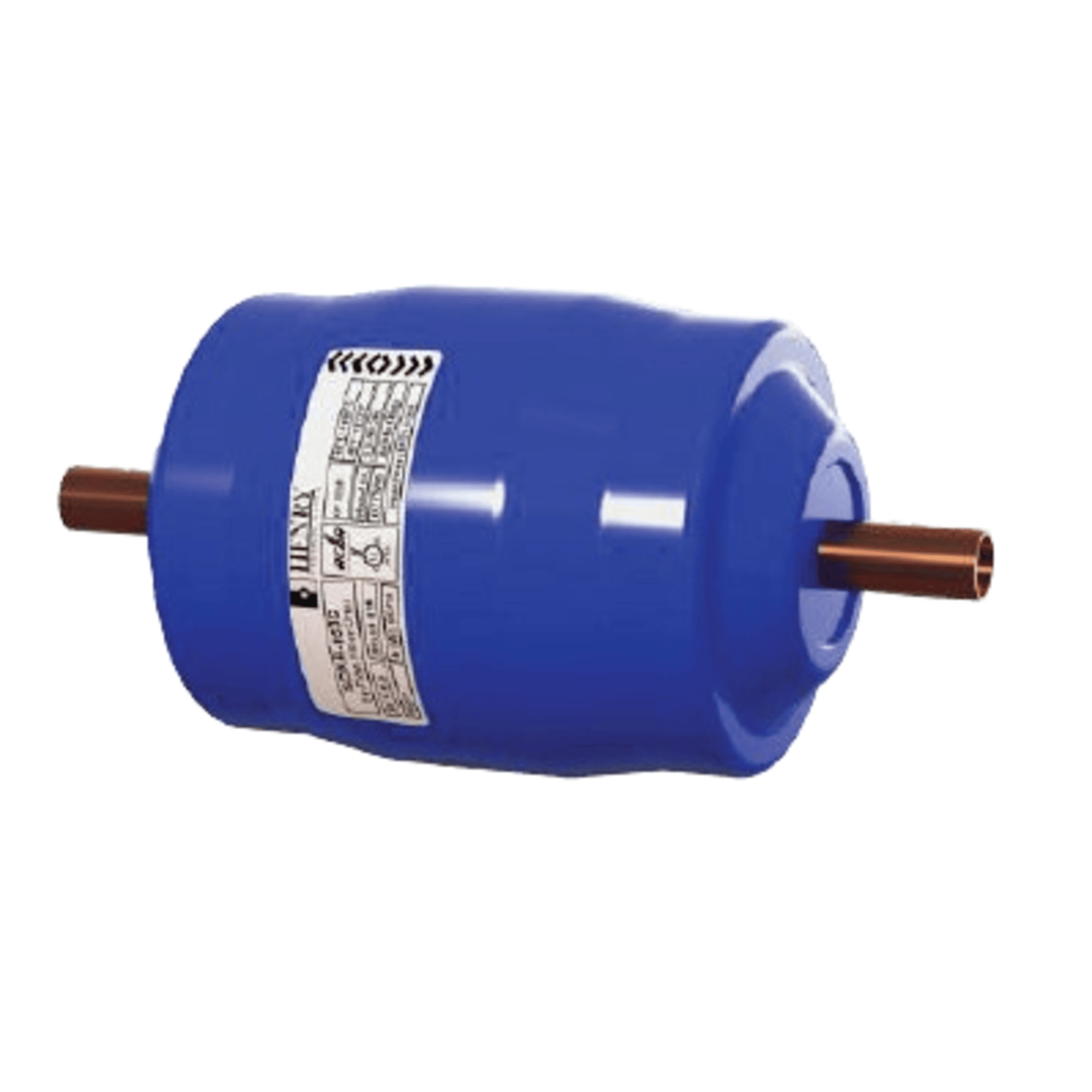

SDXB-305S - Henry - 1/2 ODS - 30(CI) - Filter/Driers, Bi-Flow

Here are the specifications for the Henry SDXB-305S Bi-Flow Filter/Drier:

Product Overview

• Model: SDXB-305S
• Connection Size: 1/2" ODS (Outside Diameter Solder)
• Volume: 30 in³ (cubic inches)
• Application: Bi-directional flow systems, such as heat pumps and reversible-cycle refrigeration systems

Key Features

• Core Composition: 100% Molecular Sieve (XH-11)
• Function: Removes moisture, acid, and solid contaminants in systems with reversing refrigerant flow
• Filtration:
  • Solid particle filtration down to 150 microns
  • Non-woven polyester filter pad
• Construction:
  • Shell: Powder-coated carbon steel for corrosion resistance
  • Connections: Solid copper ODS
  • Internal Components: Galvanized steel valve plate and perforated plate
• Refrigerant Compatibility: Compatible with A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants including R-410A and R-32
• Operating Range:
  • Pressure: Up to 650 PSI (45 Bar)
  • Temperature: -40°F to +212°F (-40°C to +100°C)
