SDM-084S - Henry - 1/2 ODS - 8(CI) - Filter/Driers, Liquid Line, Solder

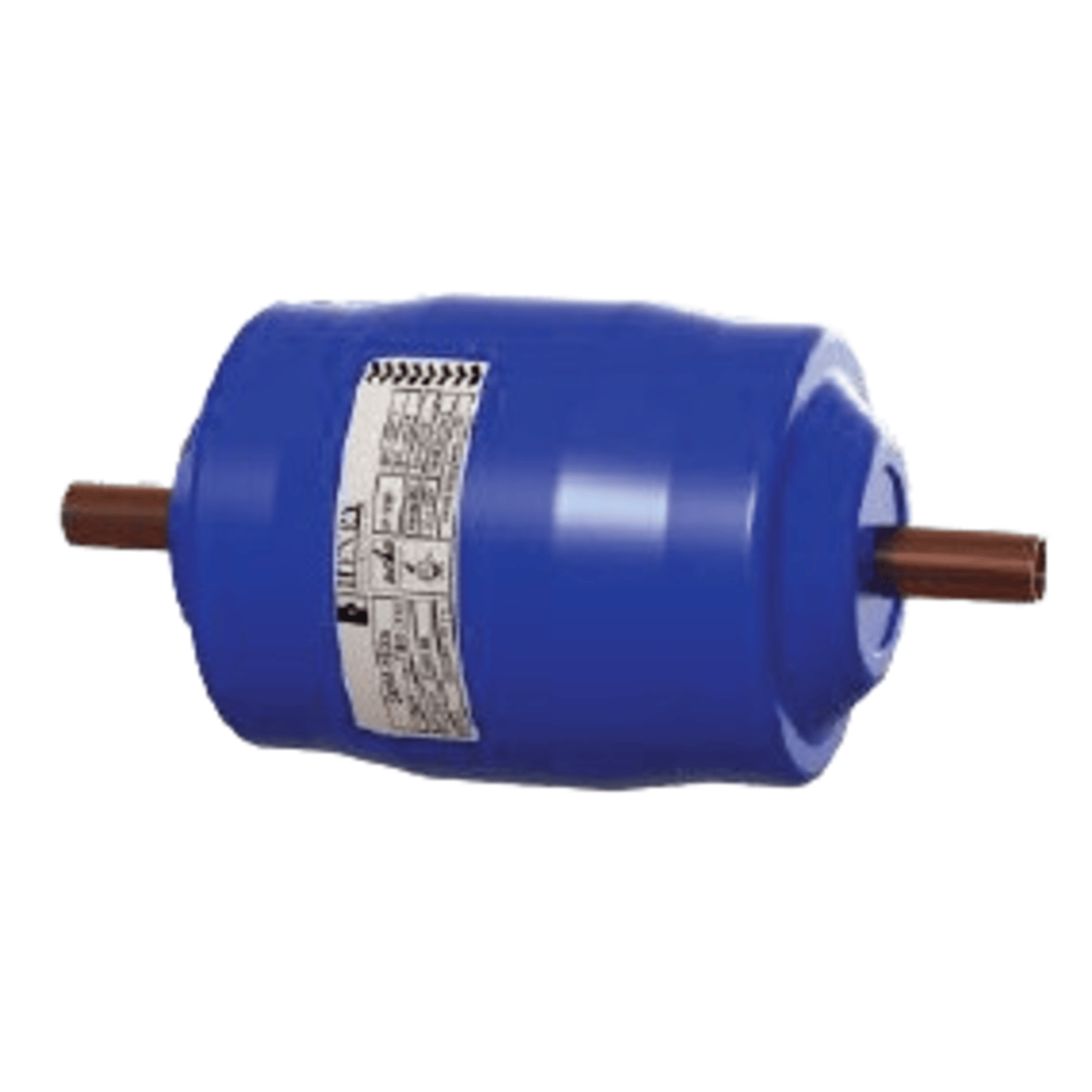

The Henry SDM-084S is a liquid line filter/drier designed for use in refrigeration and air conditioning systems. Here's a detailed overview of its specifications and features:

🔧 Product Overview

• Model: SDM-084S
• Connection Type: 1/2" ODS (Outside Diameter Solder)
• Core Type: Solid core with 100% molecular sieve
• Capacity: 8 cubic inches (CI)
• Function: Removes moisture, acid, and solid contaminants from the refrigerant to protect system components

📐 Technical Specifications

• Maximum Working Pressure: 45 bar (652.6 PSIg)
• Operating Temperature Range: -40°C to +100°C (-40°F to +212°F)
• Refrigerant Compatibility: A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants (where materially compatible)
• Construction:
  • Solid copper solder (ODS) connections
  • Powder-coated finish for UV and corrosion resistance
  • Solid core construction for high moisture and acid removal
  • Filtration down to 150 microns
• Certifications: AS2971.2, CE, UKCA, UL207
