SDM-083S - Henry - 3/8 ODS - 8(CI) - Filter/Driers, Liquid Line, Solder

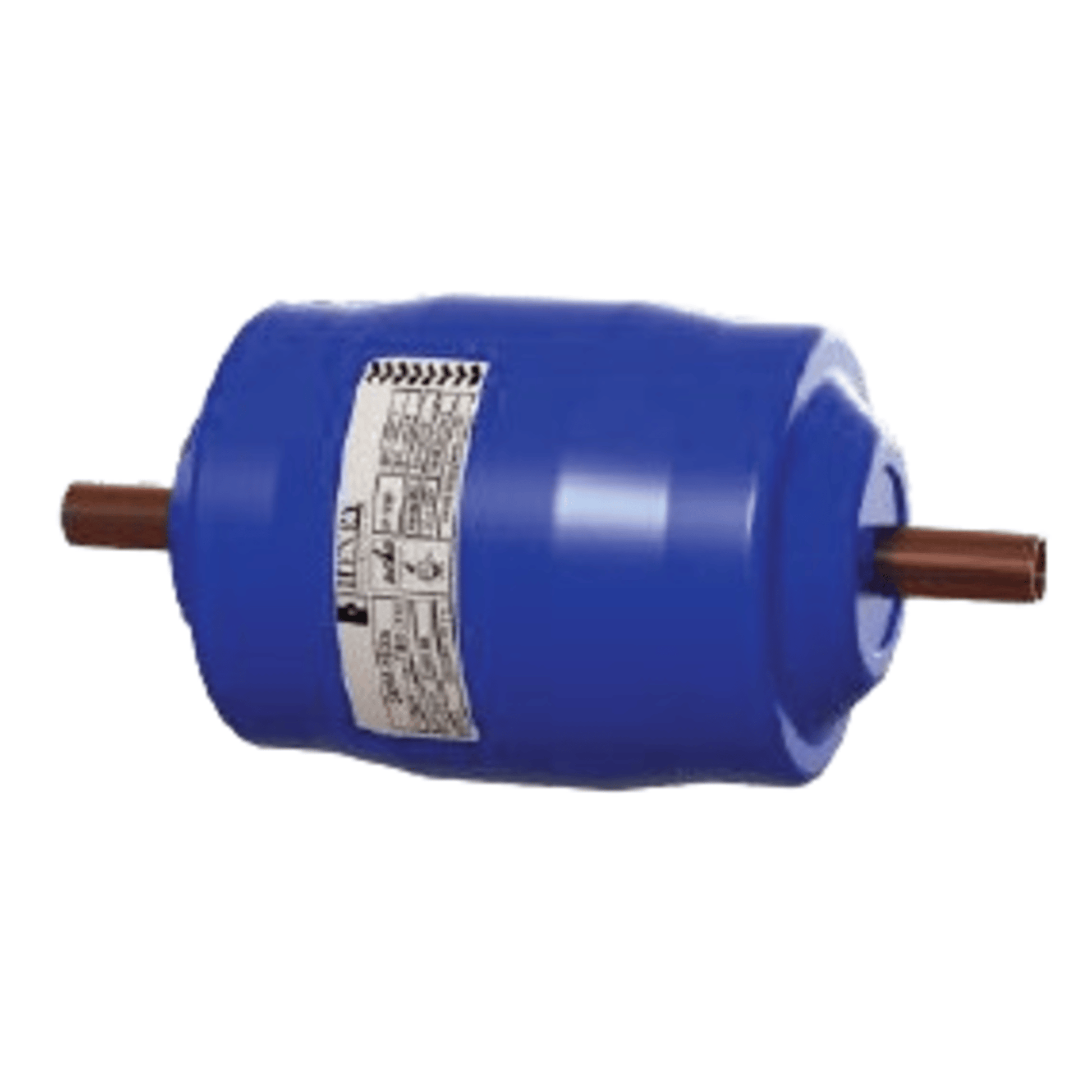

The Henry SDM-083S is a liquid line filter/drier with 3/8" ODS (solder) connections, designed for use in refrigeration and air conditioning systems. Here's a detailed overview:

🔧 Product Overview

• Model: SDM-083S
• Connection Type: 3/8" ODS (Outside Diameter Solder)
• Core Type: Solid core with 100% molecular sieve desiccant
• Capacity: 8 cubic inches (CI)
• Function: Removes moisture, acid, and solid contaminants to protect system components

📐 Technical Specifications

• Maximum Working Pressure: 650 PSI (45 bar)
• Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Refrigerant Compatibility: HCFC, HFC, CO₂, and R-410A refrigerants
• Filtration: Solid particle filtration down to 150 microns
• Construction:
  • Solid copper solder (ODS) connections
  • Powder-coated finish for UV and corrosion resistance
  • 1000-hour salt spray tested to ASTM B117 standards
