SDAS-309S - Henry - 1-1/8 ODS - SDAS-307S, Suction Line Filter/Drier

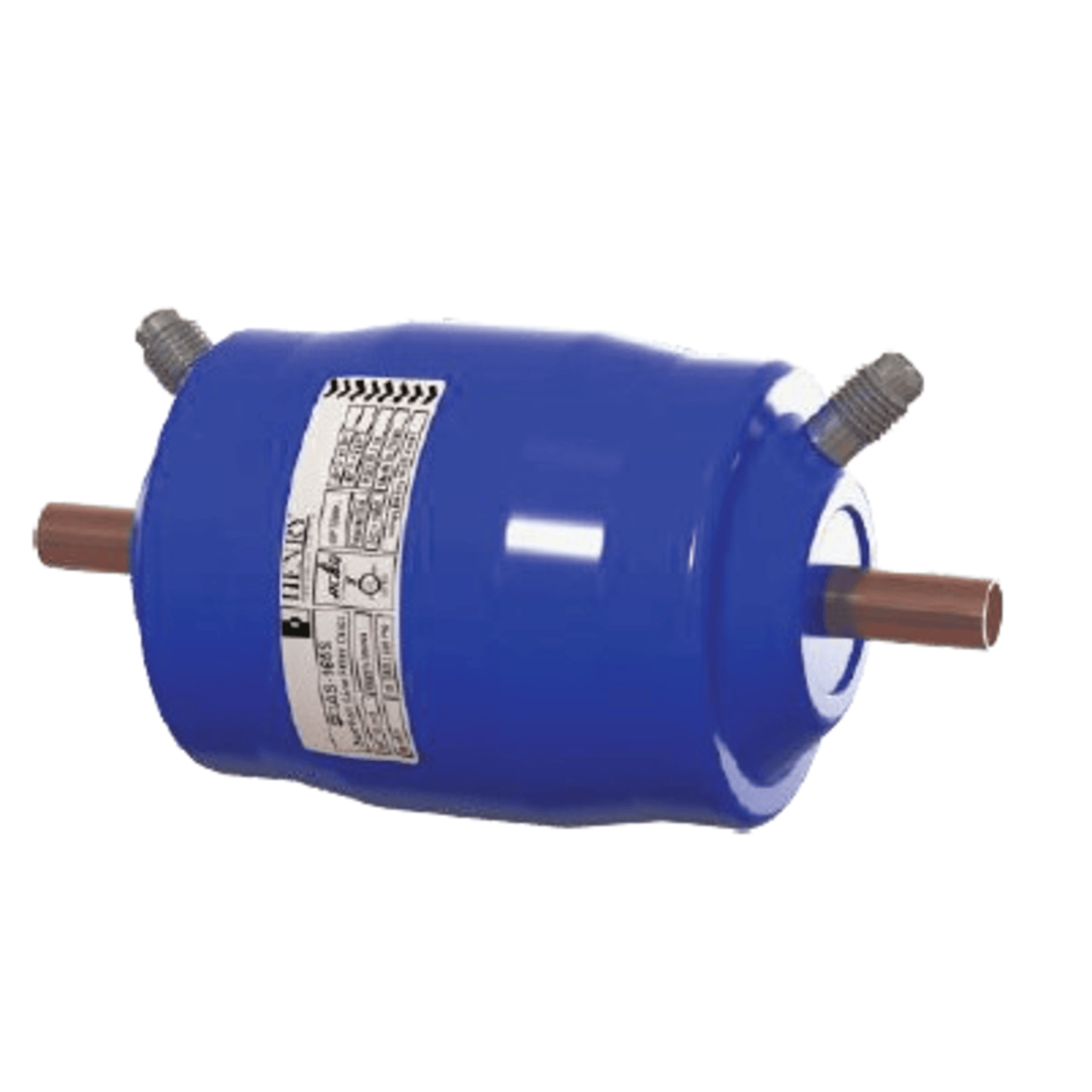

The Henry SDAS-309S is a suction line filter/drier designed to protect refrigeration and air-conditioning systems by removing contaminants, moisture, and acids. Here are the detailed specifications:

🔧 Product Overview

• Model: SDAS-309S
• Connection Size: 1-1/8" ODS (Outside Diameter Solder)
• Application: Suction line
• Compatible Refrigerants: HCFC, HFC, CO₂, including R-410A

🛠️ Key Features

• Core Composition: 80% Molecular Sieve, 20% Activated Alumina
• Filtration: Solid particle filtration down to 150 microns
• Construction:
  • Shell: Powder-coated carbon steel
  • Connections: Solid copper
  • Filter Pad: Non-woven polyester
  • Mesh: Stainless steel
• Monitoring: Double 1/4” SAE flare connections with Schrader valves for pressure drop monitoring
• Finish: UV-resistant powder coat, 1000-hour salt spray tested (ASTM B117)

📊 Technical Specs

• Maximum Working Pressure: 650 PSI (45 bar)
• Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
