SDAS-307S - Henry - 7/8 ODS - SDAS-306S, Suction Line Filter/Drier

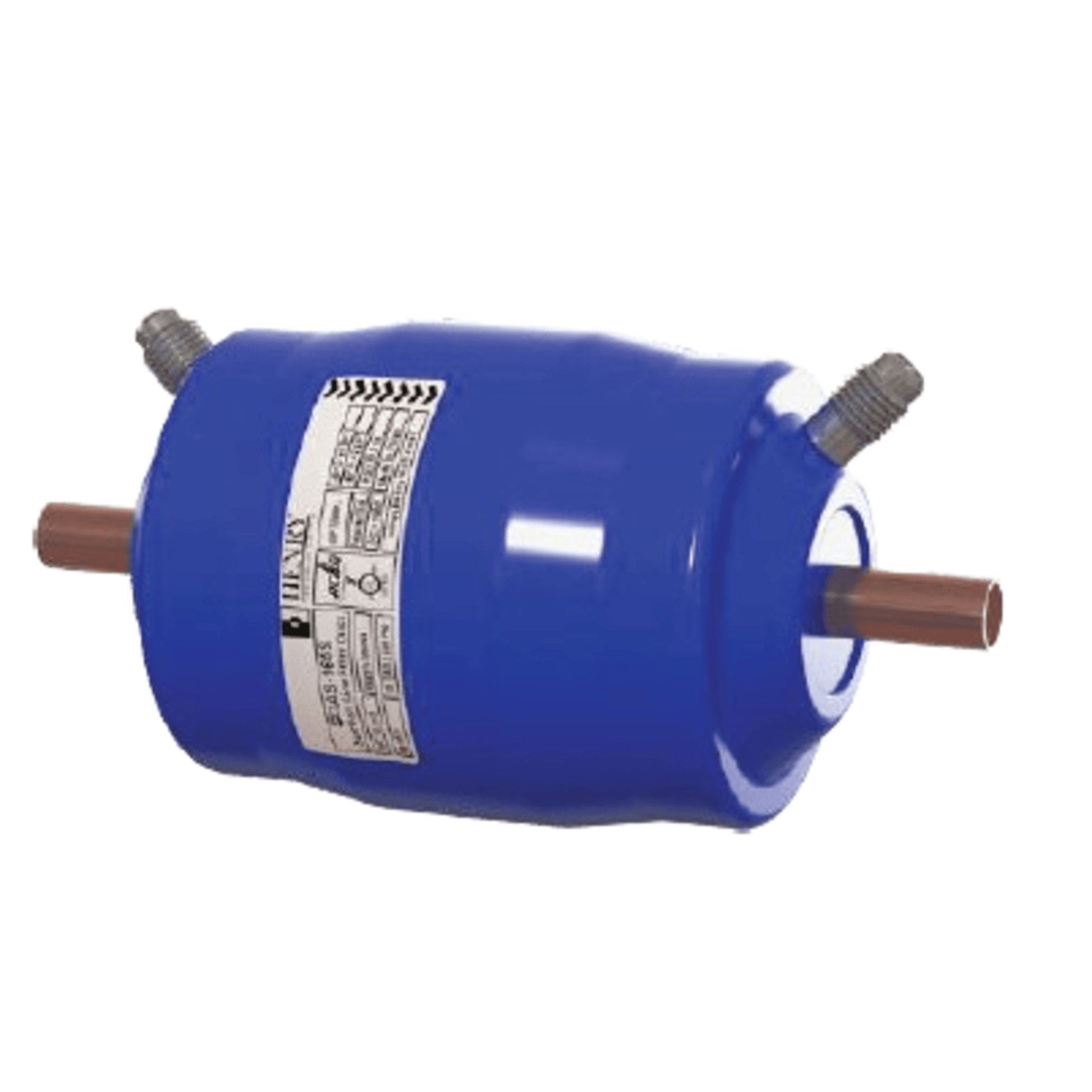

The Henry SDAS-307S is a suction line filter/drier designed to protect refrigeration and air-conditioning systems by removing contaminants, moisture, and acids. Here are the detailed specifications:

🔧 Product Specifications

• Model: SDAS-307S
• Connection Size: 7/8" ODS (Outside Diameter Solder)
• Core Composition: 80% Molecular Sieve, 20% Activated Alumina
• Filtration: Solid particle filtration down to 150 microns
• Maximum Working Pressure: 650 PSI (45 bar)
• Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Weight: Approximately 3.27 lbs

🛠️ Key Features

• Solid Core Construction: High moisture and acid absorption
• Double 1/4” SAE Flare Connections: With Schrader valves for pressure drop monitoring
• Construction Materials:
  • Shell: Powder-coated carbon steel
  • Connections: Solid copper
  • Filter Pad: Non-woven polyester
  • Mesh: Stainless steel
• Durability: 1000-hour salt spray tested to ASTM B117
• Refrigerant Compatibility: Suitable for HCFC, HFC, and CO₂ refrigerants including R-410A
