Henry Suction Line Filter/Drier3/4 ODS - 30in
Original price
$85.02
-
Original price
$85.02
Original price
$85.02
$85.02
-
$85.02
Current price
$85.02
SKU HEN-SDAS-306S
Availability:
Special Order

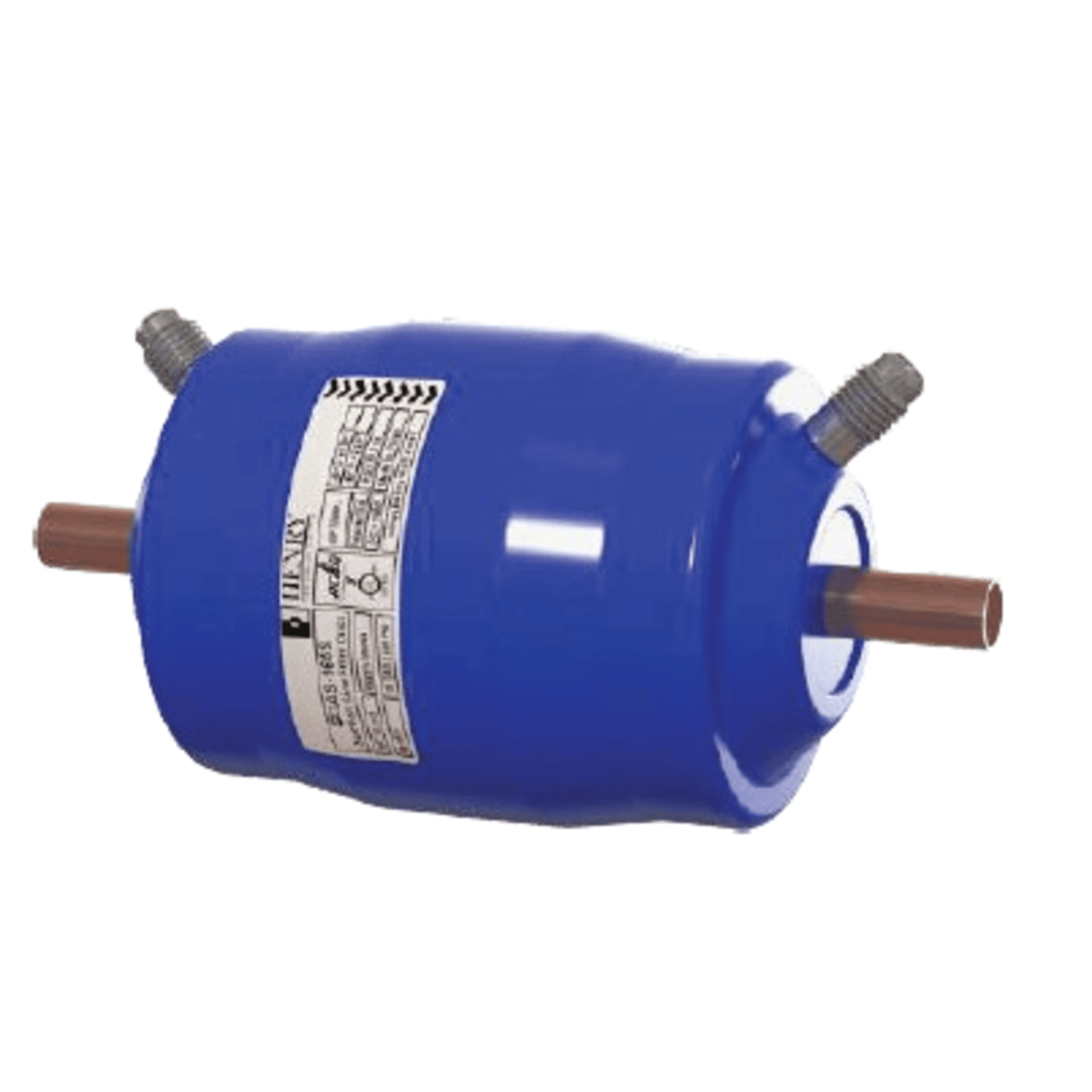

The Henry SDAS-306S is a suction line filter/drier designed for use in refrigeration and air-conditioning systems. Here are the detailed specifications:
?? Product Specifications
- Model: SDAS-306S
- Connection Size: 3/4" ODS (Outside Diameter Solder)
- Application: Suction line
- Refrigerant Compatibility: HCFC, HFC, and CO? refrigerants
??? Key Features
- Core Composition: 80% Molecular Sieve, 20% Activated Alumina
- Filtration: Removes moisture, acid, and solid contaminants
-
Construction:
- Shell: Powder-coated carbon steel
- Connections: Solid copper
- Filter Pad: Non-woven polyester
- Mesh: Stainless steel
- Monitoring: Double 1/4” SAE flare connections with Schrader valves for pressure drop monitoring
- Maximum Working Pressure: 650 PSI (45 bar)
- Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)
