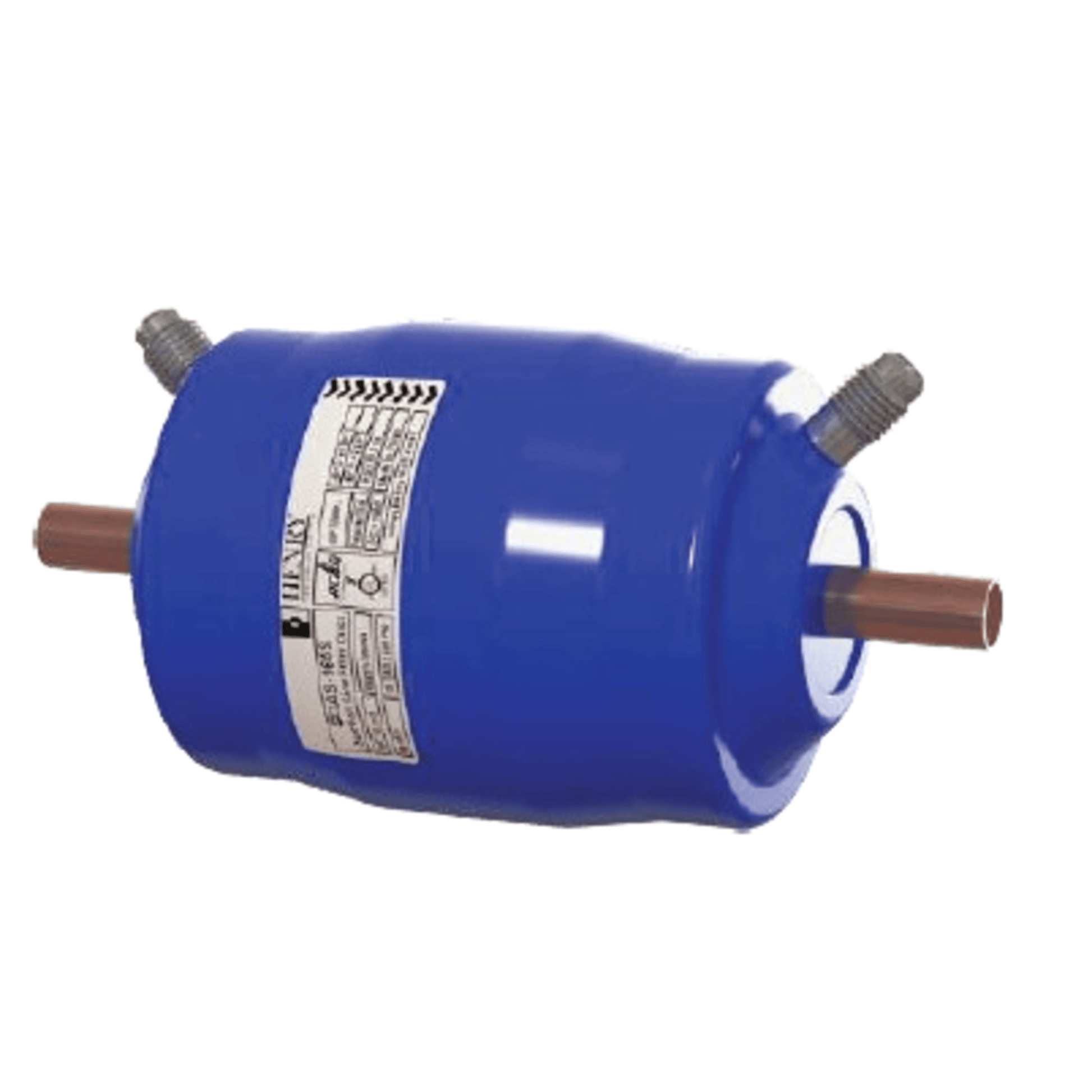

SDAS-305S - Henry - 5/8 ODS - SDAS-167S, Suction Line Filter/Drier

The Henry SDAS-305S is a suction line filter/drier designed to protect refrigeration and air-conditioning systems by removing moisture, acid, and solid contaminants. Here are the detailed specifications:

🔧 Product Specifications

• Model: SDAS-305S
• Connection Size: 5/8" ODS (Outside Diameter Solder)
• Application: Suction line
• Refrigerant Compatibility: A2L, CO₂, HC, HCFC, HFC, and HFO refrigerants (where materially compatible)
• Maximum Working Pressure: 652.6 PSI (45 bar)
• Operating Temperature Range: -40°F to +212°F (-40°C to +100°C)

🛠️ Key Features

• Core Composition: Solid core (80% Molecular Sieve, 20% Activated Alumina)
• Filtration: Removes moisture, acid, and solid particles down to 150 microns
• Construction:
  • Shell: Powder-coated carbon steel
  • Connections: Solid copper
  • Filter Pad: Non-woven polyester
  • Mesh: Stainless steel
• Durability: 1000-hour salt spray tested to ASTM B117
• Monitoring: Double 1/4” SAE flare connections with Schrader valves for pressure drop monitoring
