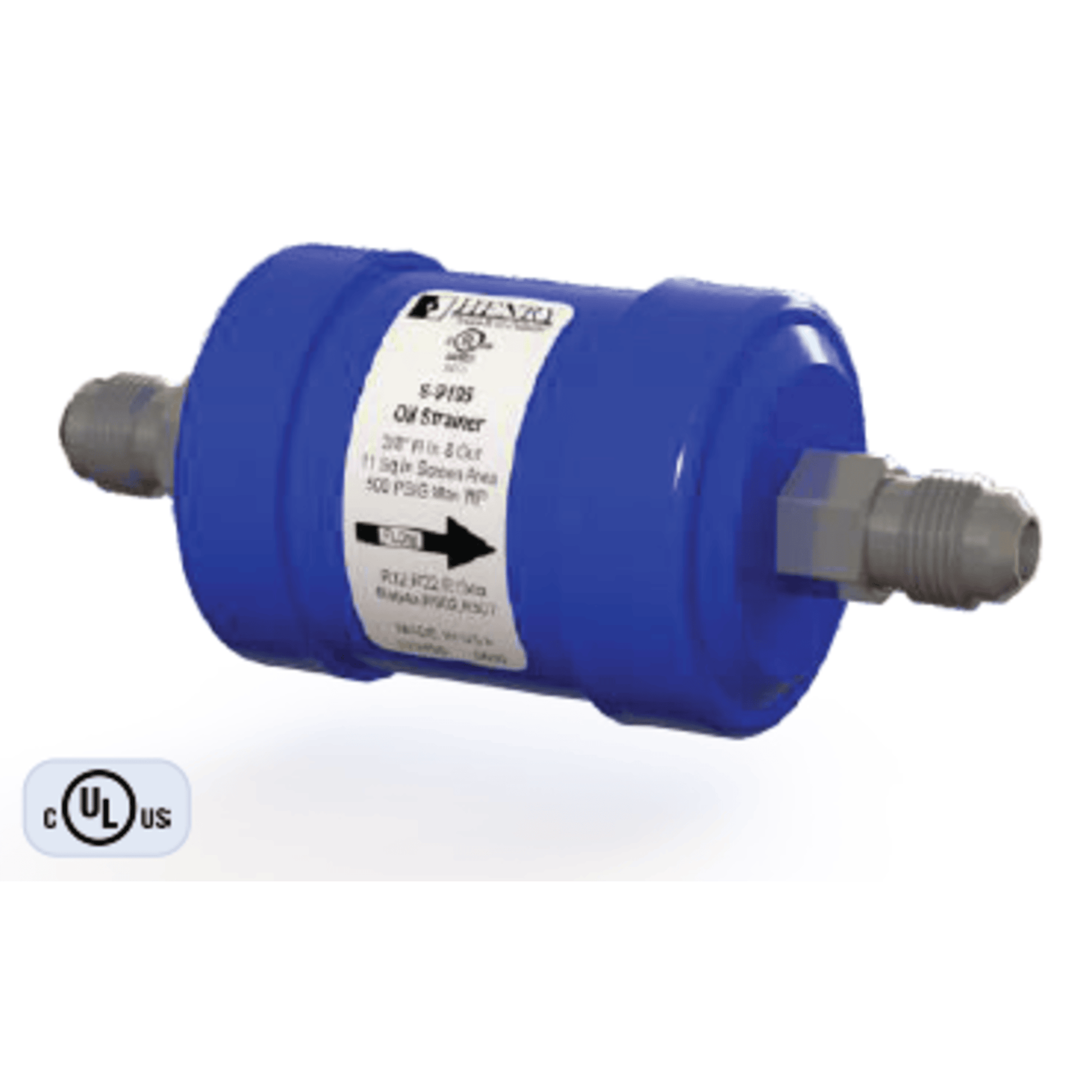

S9105 - Henry - Oil Strainer 3/8"

The Henry Technologies S-9105 Oil Strainer (3/8") is a high-performance component designed for use in refrigeration and oil management systems. Here are the key specifications and features:

🔧 Product Overview

• Model: S-9105
• Connection Size: 3/8" SAE flare
• Application: Used in both low and high pressure oil management systems
• Function: Removes debris from refrigerant oil to protect compressors and other components

🧰 Technical Specifications

• Maximum Working Pressure: 500 PSI (34.4 Bar)
• Operating Temperature Range: -20°F to +300°F (-29°C to +149°C)
• Filter Area: 11 in²
• Particle Retention: Down to 150 microns
• Strainer Cartridge: 100 mesh stainless steel
• Materials:
  • Shell and caps: Steel
  • Connections: Plated steel
• Certifications: UL and C-UL listed
• Weight: 0.5 lbs
• Dimensions: Approx. 5.545" (L) x 2.157" (W) x 2.157" (H)

🧪 Compatibility

• Suitable for HFC and HCFC refrigerants and their associated oils
• Also compatible with other non-corrosive industrial fluids

📦 Use Case

Typically installed in the oil return line between the oil reservoir and the oil level regulator to ensure clean oil circulation
