Henry Technologies

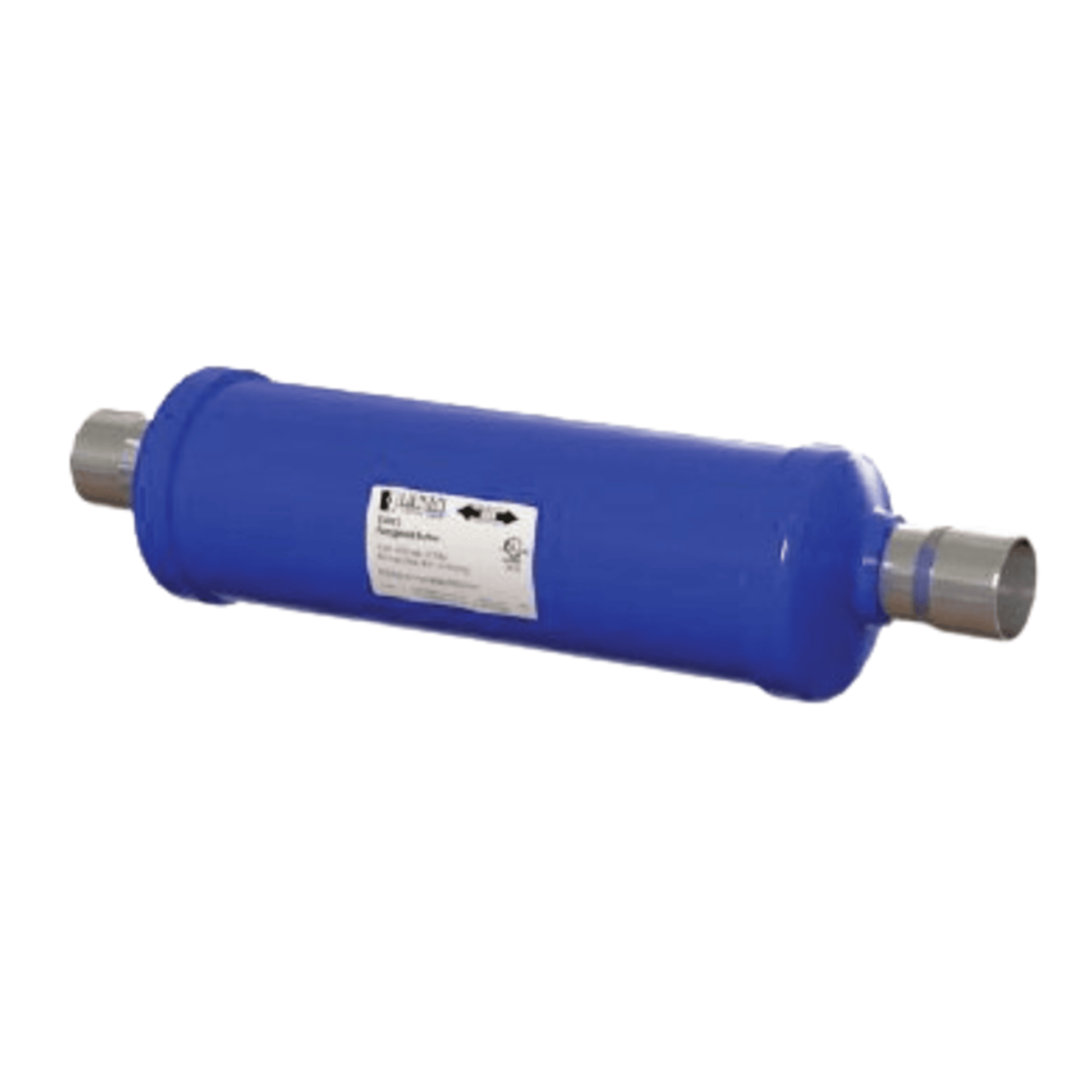

S-6625 - Henry - 2-5/8 ODS - 67mm - Muffler, Discharge Line

S-6625 - Henry - 2-5/8 ODS - 67mm - Muffler, Discharge Line

SKU: HEN-S-6625

$666.85 CAD
$0.00 CAD $666.85 CAD
Sale Sold out
Shipping calculated at checkout.

The Henry S-6625 Discharge Line Muffler is designed to reduce noise and pulsations in the discharge line of refrigeration and air-conditioning systems. Here's a detailed breakdown of its specifications and features:

Product: Henry S-6625 Discharge Line Muffler

  • Connection Size: 2-5/8" ODS (Outside Diameter Solder)
  • Body Diameter: 67 mm (approx. 2.64 inches)
  • Length: 21 inches
  • Weight: Approximately 20 lbs

Key Features

  • Noise Reduction: Internal baffles change the velocity of discharge gases, dampening high-frequency sound waves and pulsations from both low- and high-speed compressors
  • Bi-directional Flow: Allows flexible installation orientation
  • Robust Construction: Built for durability in demanding HVAC/R environments
  • Refrigerant Compatibility: Suitable for CO₂, HCFC, HFC, and (for some models) A2L, HC, and HFO refrigerants where material compatibility is ensured .

Technical Specifications

  • Maximum Working Pressure: 31 Barg (449.6 PSIG)
  • Operating Temperature Range: 0°C to +121°C (+32°F to +249.8°F)
  • Certifications: AS2971.2, CE, UKCA, UL207
