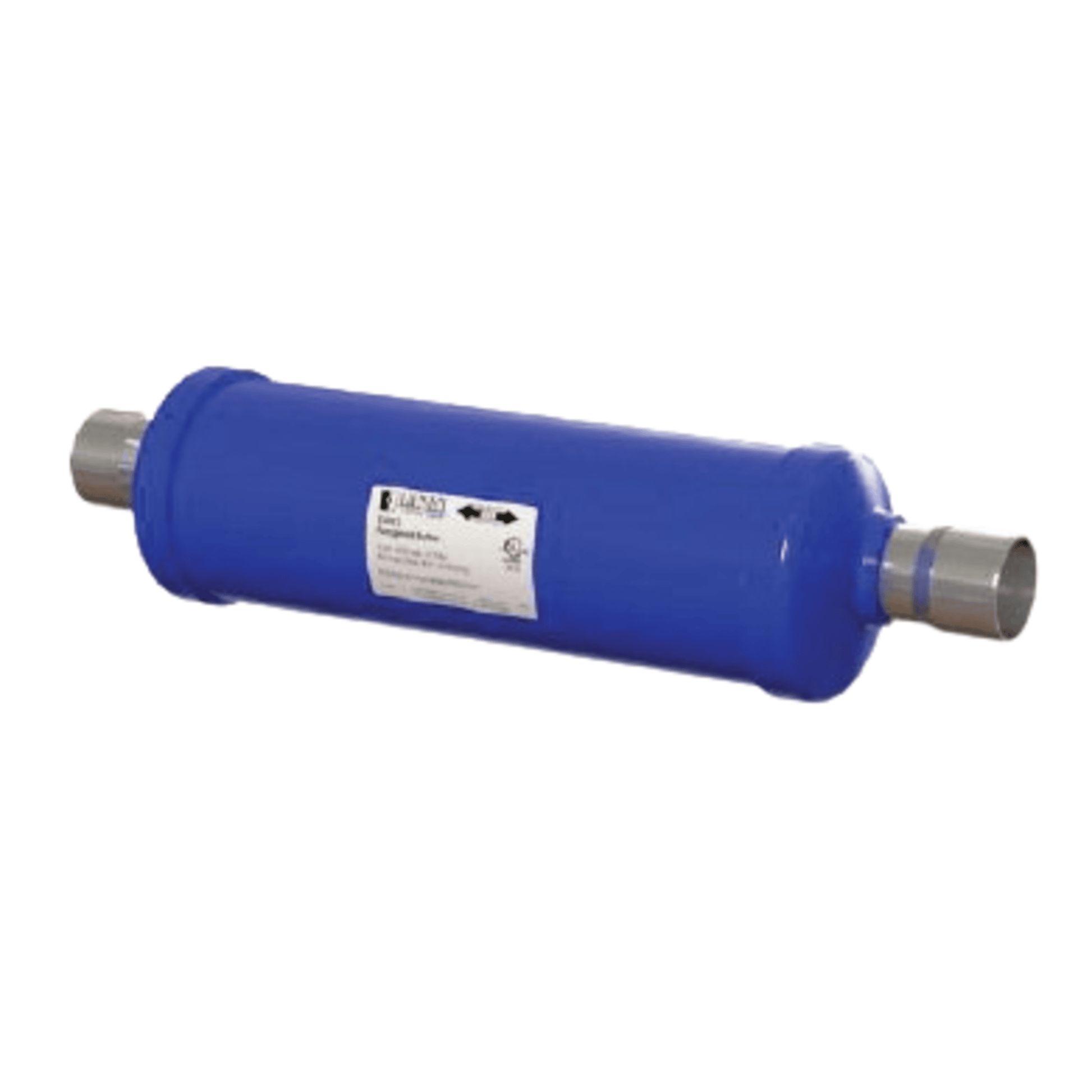

S-6413 - Henry - 1-3/8 ODS - 35mm - Muffler, Discharge Line

The Henry S-6413 Discharge Line Muffler is designed to reduce noise and pulsation in the discharge lines of refrigeration and air-conditioning systems. Here's a detailed breakdown of its specifications and features:

Product: Henry S-6413 Discharge Line Muffler

• Connection Size: 1-3/8" ODS (Outside Diameter Solder)
• Body Diameter: 35 mm (approx. 1.38 inches)
• Length: 13.75 inches
• Weight: Approx. 2.5 lbs

Key Features

• Noise & Pulsation Reduction: Internal baffles alter the velocity of discharge gases, dampening high-frequency sound waves and pulsations from both low- and high-speed compressors
• Bi-directional Flow: Allows flexible installation orientation
• Low Pressure Drop: Special baffle design ensures minimal flow resistance
• Oil Drain Passage: Prevents oil collection when installed correctly
• Powder-Coated Finish: Enhances corrosion resistance
• Construction:
  • Body & Baffles: Carbon steel
  • Connections: Plated carbon steel

Technical Specifications

• Maximum Working Pressure: 3,100 kPa (31 Barg / 449.6 PSIg)
• Operating Temperature Range:
  • 1-1/8" to 3-1/8" ODS: -15°C to +120°C
  • 1/2" to 7/8" ODS: 0°C to +120°C
• Refrigerant Compatibility: HCFC and HFC refrigerants and their associated oils
