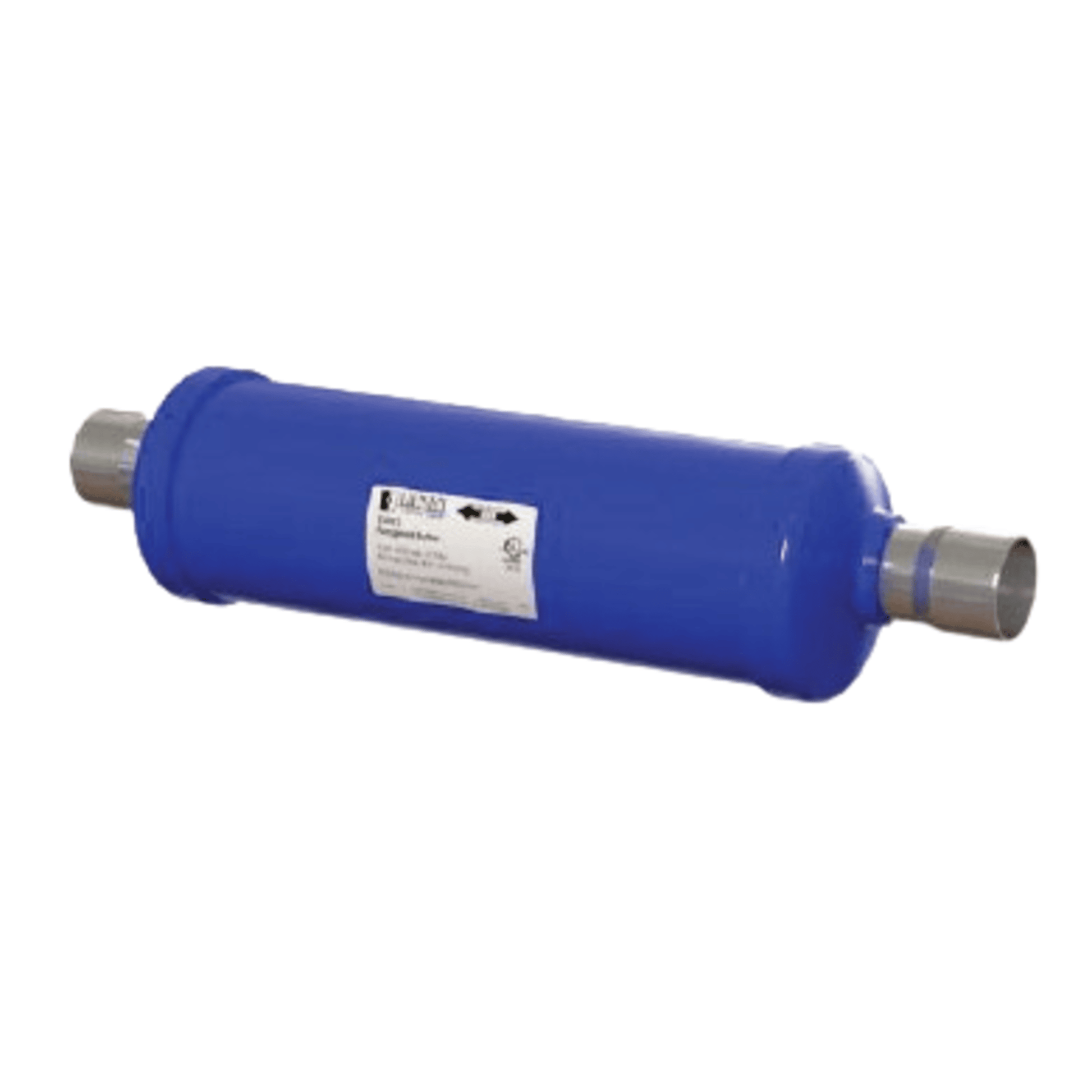

S-6311 - Henry - 1-1/8 ODS - 29mm - Muffler, Discharge Line

The Henry S-6405 Discharge Line Muffler is designed to reduce noise and pulsation in the discharge lines of refrigeration and air-conditioning systems. Here's a detailed overview of its specifications:

Product: Henry S-6405 Discharge Line Muffler

• Connection Size: 5/8" ODS (Outside Diameter Solder)
• Body Diameter: 16 mm (approx. 0.63 inches)
• Construction: Steel body with internal baffles
• Design: Compact and rugged for tight installations

Key Features

• Noise & Pulsation Reduction: Internal chambers and baffles dissipate energy from the air stream, reducing noise without compromising airflow
• Bi-directional Flow: Allows flexible installation orientation
• Low Pressure Drop: Designed to maintain system efficiency
• Powder-Coated Finish: Enhances corrosion resistance

Technical Specifications

• Maximum Working Pressure: 31 Barg (449.6 PSIG)
• Operating Temperature Range: 0°C to +121°C (+32°F to +249.8°F)
• Refrigerant Compatibility: HCFC, HFC, CO₂, and (for this model) A2L, HC, and HFO refrigerants where material compatibility is ensured
• Certifications: AS2971.2, CE, UKCA, UL207
