Henry Technologies

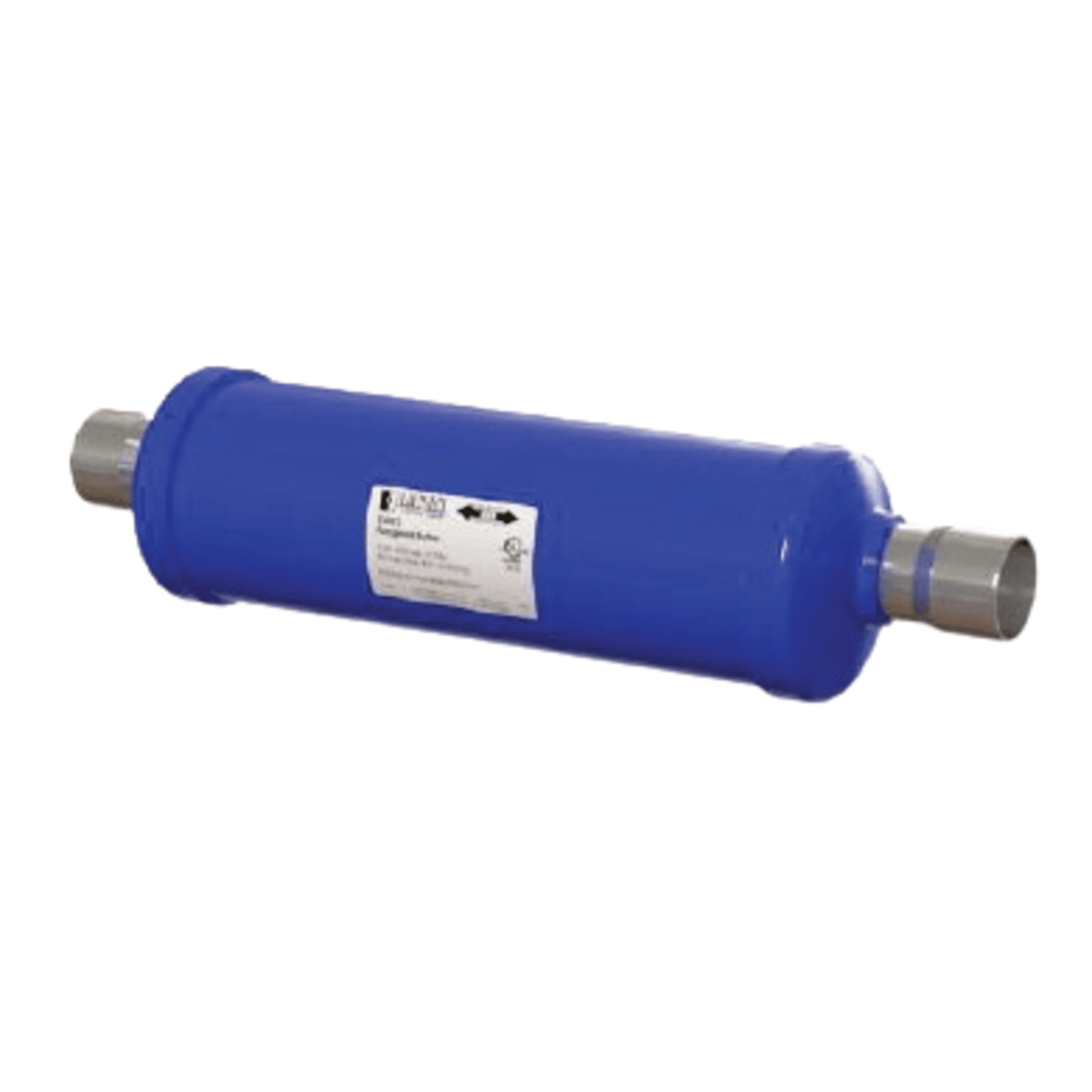

S-6304 - Henry - 1/2 ODS - 13mm - Muffler, Discharge Line

S-6304 - Henry - 1/2 ODS - 13mm - Muffler, Discharge Line

SKU: HEN-S-6304

$139.39 CAD
$139.39 CAD
Sale Sold out
Shipping calculated at checkout.

The Henry S-6304 Discharge Line Muffler is a compact and efficient solution for reducing noise and pulsation in refrigeration and air-conditioning systems. Here's a detailed overview of its specifications:

Product: Henry S-6304 Discharge Line Muffler

  • Connection Size: 1/2" ODS (Outside Diameter Solder)
  • Body Diameter: 13 mm (approx. 0.51 inches)
  • Weight: Approx. 2.0 lbs

Key Features

  • Noise & Pulsation Reduction: Internal baffles change the velocity of discharge gases, dampening high-frequency sound waves and pulsations from both low- and high-speed compressors
  • Bi-directional Flow: Allows for flexible installation orientation
  • Low Pressure Drop: Special baffle design ensures minimal flow resistance
  • Oil Drain Passage: Prevents oil collection when installed correctly
  • Powder-Coated Finish: Enhances corrosion resistance
  • Construction:
    • Body & Baffles: Carbon steel
    • Connections: Plated carbon steel

Technical Specifications

  • Maximum Working Pressure: 3,100 kPa (31 Barg / 449.6 PSIG)
  • Operating Temperature Range: 0°C to +120°C (for 1/2" to 7/8" ODS sizes)
  • Refrigerant Compatibility: HCFC, HFC, CO₂, and also suitable for A2L, HC, and HFO refrigerants where material compatibility is ensured
  • Certifications: AS2971.2, CE, UKCA, UL207
